automatic steel rule die bending machine bending

FOB Price

US$ 5,000 - 100,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Model Number	WC67Y Series	Machine Type	Roller-Bending Machine
Raw Material	Sheet / Plate Rolling	Material / Metal Processed	Carbon Steel
Power	Hydraulic	Automation	Automatic
Extra Services	Cut To Length	Certification	ISO 9001:2000
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

steel rule die bending machine

Product Description

steel rule die bending machine is a machine that can bend a sheet. It includes support bracket, working table and clamping plate, working table is placed on the bracket, it is made of base and pressing plate, the base is connected with the clamping plate by means of a hinge, the base is composed of a shell, a coil and a cover plate, the coil is placed in the recess of the shell, on top of the recess there is a cover plate.

When used, turn on the power, it produces gravity on the plate, so as to realize the clamping between the plate and the base plate. Due to the use of the electromagnetic force clamp, the plate can be made into a variety of work piece according to requirements, and it can be used to process the work piece with side wall. Operation is also very simple.

Technical parameters

Model	Nominal pressure(KN)	Table length(mm)	Column spacing(mm)	Throat depth(mm)	Slide block stroke(mm)	Max open height(mm)	Power of main motor(KW)
30T/1600	300	1600	1280	200	80	285	3
35T/2000	350	2000	1480	200	80	285	3
40T/2200	400	2200	1850	230	100	320	4
40T/2500	400	2500	1850	230	100	320	4
50T/2500	500	2500	1850	230	100	320	5.5
63T/2500	630	2500	1900	250	100	320	5.5
63T/3200	630	3200	2500	250	100	320	5.5
80T/2500	800	2500	1900	300	100	320	7.5
80T/3200	800	3200	2500	320	100	350	7.5
80T/4000	800	4000	3000	320	100	350	7.5
100T/2500	1000	2500	1900	320	120	320	7.5
100T/3200	1000	3200	2500	320	120	370	7.5
100T/4000	1000	4000	3000	320	120	370	7.5
125T/3200	1250	3200	2500	320	120	370	7.5
125T/4000	1250	4000	3000	320	120	370	7.5
160T/3200	1600	3200	2500	320	200	460	11
160T/4000	1600	4000	3000	320	200	460	11
160T/5000	1600	5000	4000	320	200	460	11
160T/6000	1600	6000	4940	320	200	460	11
200T/3200	2000	3200	25000	320	200	460	11
200T/4000	2000	4000	3000	320	200	460	11
200T/5000	2000	5000	4000	320	200	460	11
200T/6000	2000	6000	5000	320	200	460	11
250T/3200	2500	3200	2500	400	250	590	18.5
250T/4000	2500	4000	3000	400	250	590	18.5
250T/5000	2500	5000	4000	400	250	590	18.5
250T/6000	2500	6000	5000	400	250	590	18.5
300T/3200	3000	3200	2530	400	250	590	22
320T/4000	3000	4000	3000	400	250	590	22
300T/5000	3000	5000	4000	400	250	590	22
300T/6000	3000	6000	5000	400	250	590	22
400T/4000	4000	4000	3000	400	250	590	30
400T/5000	4000	5000	4000	400	250	590	30
400T/6000	4000	6000	5000	400	250	590	30
500T/5000	5000	5000	4000	400	250	590	45
500T/6000	5000	6000	5000	400	320	590	45
600T/4000	6000	4000	3000	400	320	590	55
600T/6000	6000	6000	5000	400	320	590	55
800T/6000	8000	6000	5000	400	320	590	55

Product Features

The Performance characteristics of the steel rule die bending machine

♦All steel welded structure, vibration eliminating stress, high mechanical strength, good rigidity

♦Hydraulic transmission, reliable balance

♦Mechanical block, torsion axis synchronization, high accuracy

♦Rear stop distance, electric adjustment of upper slider stroke, manual adjustment, digital display (German counter)

♦The upper mold is equipped with a deflection compensation mechanism, 250 tons or more will use lower deflection compensation mechanism (optional)

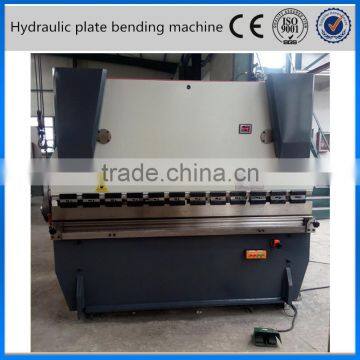

Photos of Products
