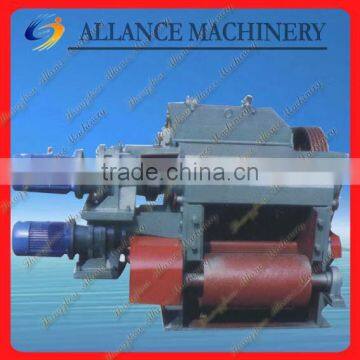

362 heavey duty wood chipper making machine

• Functions--Drum wood chipper making machine/chipping machine

The main cut raw material is small-dimension stock,Wood harvesting, processing remaining

such as branches, slab, wattle, logs core, waste board), and it can also be used to cut the woodiness materials (such as sugar cane, reed, bamboo, ec.

• Applied Industy-Drum wood chipper making machine/chipping machine

Particle board factory, high density fiberboard factory, grain Factory, biomass power plant, chipper factory

• Technical Parameters-Drum wood chipper making machine

--Model: AGXM-215

--Inlet size: 160*400mm

--Blade Qty: 2 pieces

--Blade roller speed: 592RPM

--Max diameter of material: 160mm

--Chip size: 30mm

--Output: 3-4t/h

--Main Motor power: 45Kw

--Feeding roller motor power: 2.2-3Kw

--Oil pump power: 1.5*1Kw

--Conveyor power: 3Kw

• Features--Drum wood chipper making machine/chipping machine

advanced structure,high quality of chips and convenience operation and maintaining.

• Consititution--Drum wood chipper making machine/chipping machine

Drum chipper consist of engine base,blade roller,upper and lower feeding roller,belt conveyor,hydraulic system etc.

1, One year guarantee from exporting date.
2, If any easily damaged parts are found defective in quality for the first year, we will replace it

for free.
3,We provide timely delivery. More importantly, if you dont know how to install machines, our professional technical staff will assist you.

If you are interested in our wood chipper machine, just let me know below details:

1. What is the capacity you process wood material?

2. What is the raw material and size?

3. What is the output chips size?
