Home > Products > 2017 Hot Products! > BX-series Industrial Wood Chipper,drum Wood Chipper,drum Rotary Wood Chipper
BX-series Industrial Wood Chipper,drum Wood Chipper,drum Rotary Wood Chipper
- SHANGHAI
- T/T
You May Like
-
Pellet Machine Accessories-Wood Pellet Ring Die/Feed Pellet Ring Die
-
Yulong850 XGJ850 Stainless Steel Alloy Steel Wood Pellet Ring Die
-
Hammer Blades/knives for Hammer Mill/feed Crusher Machine
-
420/508/560 Feed Pellet Wood Pellet Ring Die
-
508 Ring Die Pellet Dies for Feed Pellet Mill
-
Hammer Blades for Hammer Mill/crusher Machine
Product Details
| Condition | New | Type | Wood Chipper | |
| Use | chip wood log | Power Type | Electric | |
| Production Capacity | 4-8t/h | Place of Origin | Jiangsu, China | |
| Brand Name | LYWF | Model Number | BX series | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

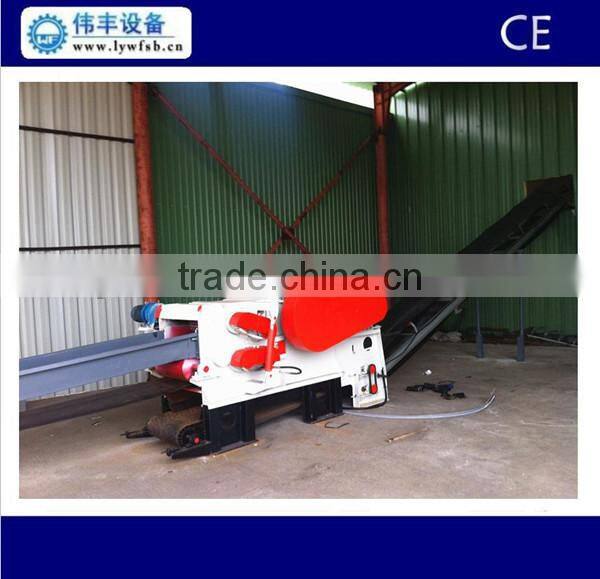

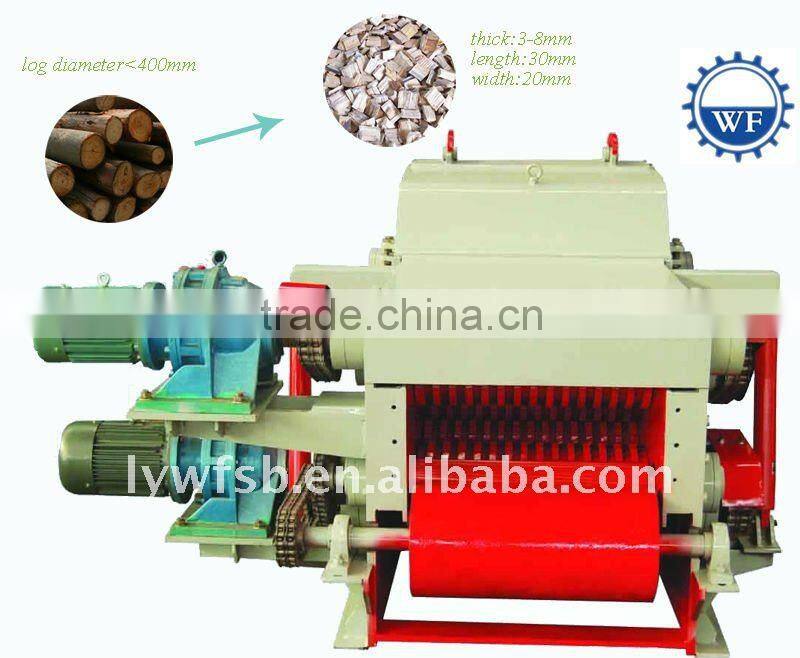

BX-series industrial wood chipper,drum wood chipper,drum rotary wood chipper
Specification:
1. It is the professional equipment for wood chips production process and used extensively in pulp and paper mills, which can be used as part of the wood handling process .
2. Material handled by this series of Drum Chipper includes raw wood logs, small diameter wood, residual material from wood harvesting( branches, twig), left over from timber processing( lath, slab, core, wood waste, etc.)
3. It is simple to operate, high throughput, wide adaptability of raw materials, produces high chips quality, reliable and safe, easy to maintain, and are the most advanced chippers currently available in China.
Our high quality equipments are complemented by high quality mechanical and electrical components: SKF bearings, SEW gear reducers, Siemens Control, HMI interface, FESTO hydraulic parts.
Main Technical Parameter:
Model | BX215 | BX216 | BX218 | BX2113 |
Inlet Size(m) | 160*400 | 230×500 | 300×680 | 450×700 |
Knife No.(pc) | 2 | 2 | 2 | 3 |
Knife roller rotate speed(rpm) | 592 | 590 | 650 | 500 |
Max Dia of raw material(mm) | 160 | 230 | 300 | 450 |
Wood chips size(mm) | 30 | 30 | 30 | 38 |
Capacity(t) | 3-4 | 7-8 | 12-15 | 15-30 |
Main Motor Power(kw) | 45 | 55 | 110 | 220 |
Feeder Motor Power(kw) | 2.2-3 | 3-4 | 4-5 | 7.5*2 |
Oil Pump Motor Power(kw) | 1.5×1 | 1.5×1 | 1.5×1 | 3*1 |
Weight(kg) | 2990 | 4070 | 7000 | 11840 |
Overall Dimension(mm) | 1470×1550×970 | 1800×1900×1210 | 3980×2150×1900 | 3670x2517x2050 |
Conveyor Motor Power(kw) | 3 | 3 | 3 | 3 |
Note: The capacity will be affected by your raw material size, final chips size. Pls kindly advise these necessary information when you send a inquiry to us.
