Azeus Plastic Powder Making Machine/wasted Plastic Water Film Crushing Machine

FOB Price

US$ 1,000 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Model Number	AUS600	Use	Waste Plastic Crusher
Plastic Type	PVC	Shaft Design	Other, Cutter head
Power	45-55kw	Capacity	100-500kg/h
Voltage	380V, 50Hz,	Power(W)	45-55kw
Dimension(LWH)	390019003700mm	Weight	1.8 ton
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Azeus plastic powder making machine/wasted plastic water film crushing machine

Applications:

Working principle

It is a disc type grinding mill which has high output and low energy consumption.

2. The specification

Model	Main motor power(KW)	Air blower motor power (KW)	Vibration screen motor power(KW)	Capacity (Kg/h)	Overall dimension (mm)	Weight (Kg)
AUS 250	7.5	2.2	0.55	50-120	1500x800x2800	1100
AUS 350	22	2.2	0.55	120-200	1700x1500x3700	1200
AUS 450	37	3	0.55	180-250	1800x1600x3800	1600
AUS 550	45	4	0.75	200-300	1900x1700x3900	1800
AUS 650	55	5.5	1.5	300-600	2000x1800x4000	2500
AUS 800	75	11.5	2.2	550-950	2300x1900x4100	3500

3. Character of the machine

professional bearings ensures a high rotation rate.
one drive motor ensures the efficient grinding crash. Time saved, easy operation.
Easy Installation and maintenance , open the door to cover clean-up.
Good sealing and dust collecting system without dust leakage during the whole process.
Full automatic feeding and sorting.
Simple grinding gap adjustment . Just use the plug-foot bolts and adjustments can be fine-tuning (10-120 mesh).
The host used the water and wind double system; Rational design of smaller cross-section of the grinding chamber, grinding is almost flat vertical surface. Material entered the grinding chamber as soon as caught, groud, and then rapidly removed, which eliminates the grinding chamber of the surge in materials, heating materials to avoid decomposition, resulting in improved production.

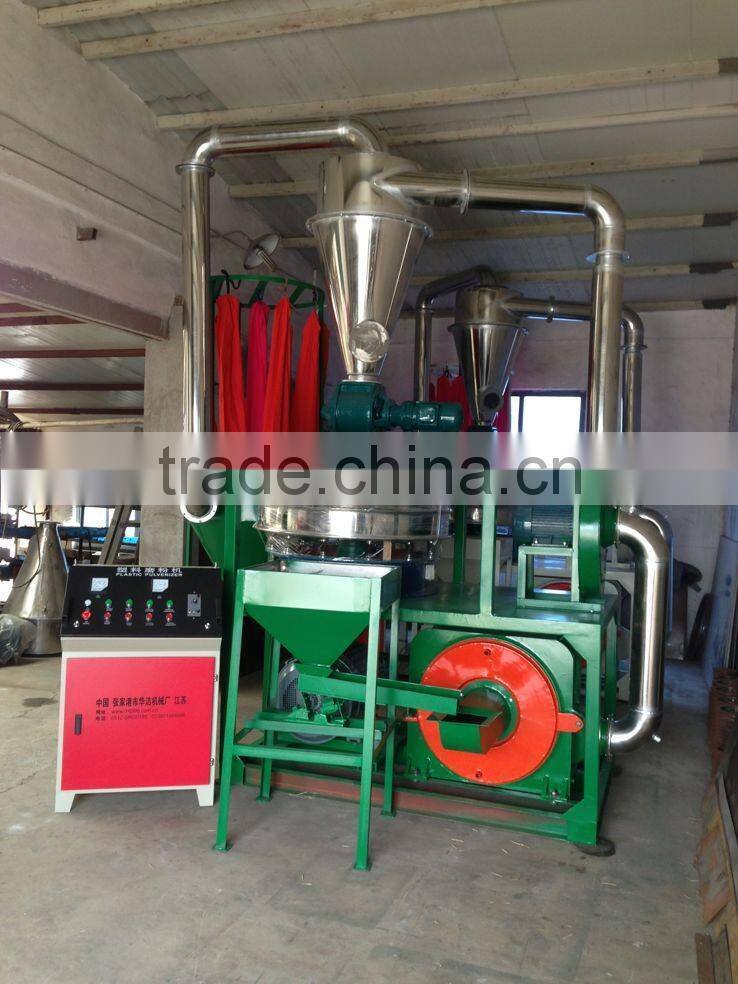

4. Other photos of the machine
