Useful Welded Wire Mesh Machine in Roll

Useful welded wire mesh machine (roll type)

Machine Description:

1. Control system: Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen.

2. Wire feeding system: longitude wire from wire coils; cross wire-hopper device with step motor.

3. Cooling system: casting water-cooling transformers.

4. Mesh pulling system: Panasonic (Japan) servo motor for pulling mesh.

5. Patent technology: Brake clutch motor connects the principal axis directly, working stable.

6. Machine material:  thick steel plate and profile steel, high strength and toughness.

7. Welding electrodes: pure red copper, can be used 3-6 months.

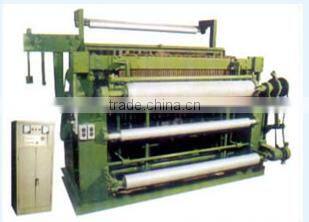

>Type1. Electric Mesh Welding Machine

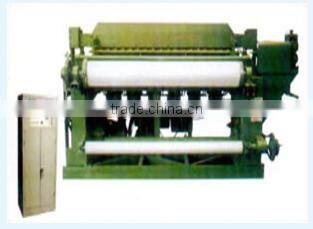

>Type2. Electric Welding Net Machine

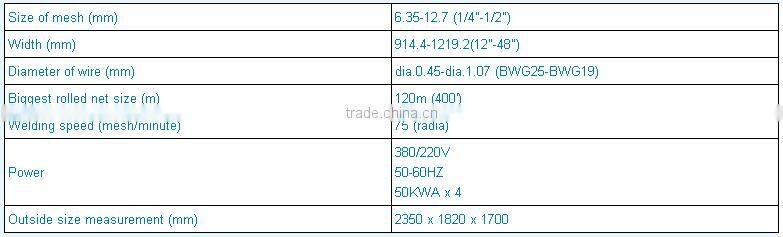

Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise,

more stable, save electricity.Used for welding net of big width.

Wire diameter from 0.7mm to 1.07mm; mesh 1/4" to 1/2".

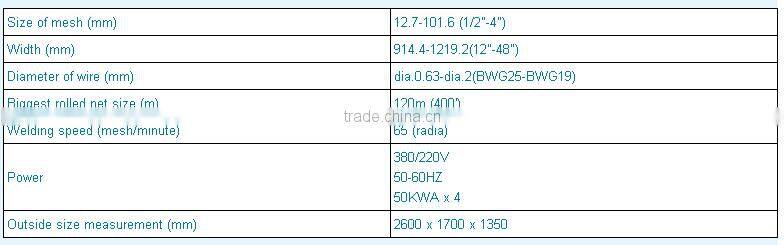

>Type3. Electric Welding Net Machine

Peculiarity: Box-style support, high stability, lower noise, E-machine in one,

straighten and send wire automatically, used for welded wire mesh 1/2" to 4"

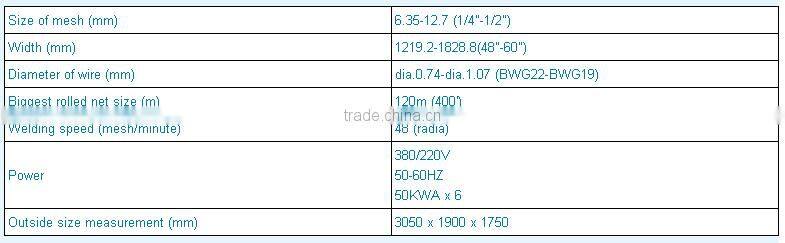

>Type4. Electric Mesh Welding Machine

Peculiarity: Box-style support, high stability, lower noise, E-machine in one,

straighten and send wire automatically, used for welded wire mesh of big width and wire diameter.

Performance characteristic:
Uses the large package box rack stably, the whole reliable, the noise is small, mechanical and electrical gathers one,

uses the automatic control to deliver the latitude, one machine multipurpose, is produces the iron wire electric welding network the ideal equipment.

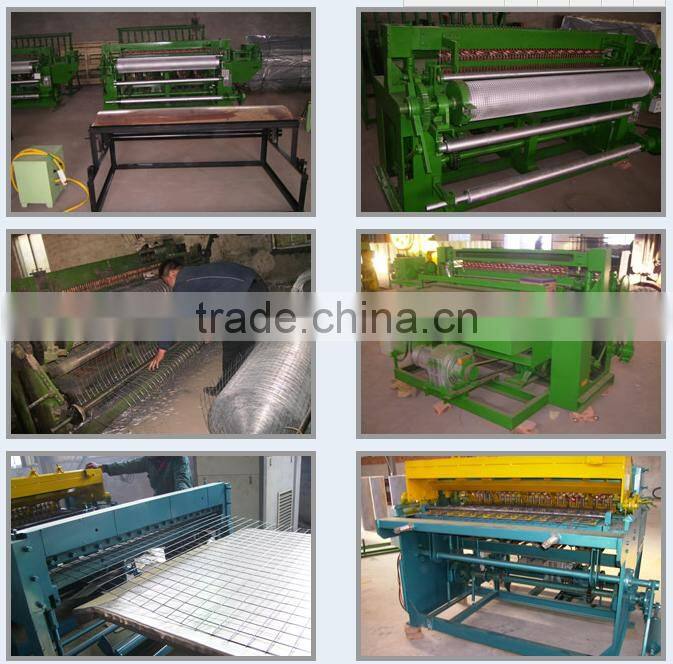

Shows:
