For Sale Factory Price Hot Dip Galvanized Iron Wire Welded Gabion Basket

                       For sale quality assured welded gabion basket  from China


Gabion basket will be a great choice for both home and business landscape design.

Gabion baskets presents an easy way to build a strong retaining wall wherever you need one.

Made of rust-proof and weather-resistant galvanised steel, gabion baskets are very stable durable.

(This is galvanized before welding.

There is another type - galvanized after welding which has stronger corrosion resistance.)

The gabion baskets mesh grid is formed by welding transverse and longitudinal wires at eac intersection.

Gabion basket are divided into cells with diaphragms (usually spaced at 1 meter or 3’ intervals),
whose function is to reinforce the structure.

 Gabion basket pictures

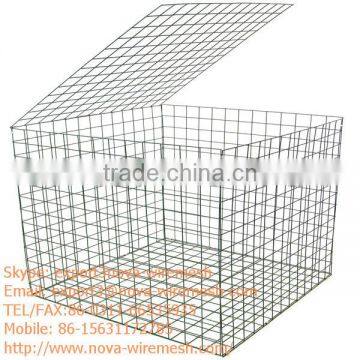

                                    A gabion basket sample assembled

                                Original divider and post made of gabion basket

                                 Original retaining wall of gabion baskets

 Gabion basket specifications

Gabion basket Material: Galvanised steel
Gabion basket Dimensions: as specified
Gabion basket Mesh opening: 5 x 5 cm / 10 x 5 cm / 30 x 20 cm / 7.6 x 7.6 cm / 10 x 10 cm (L x W)
Gabion basket Wire diameter: 4 mm
Spot welded
High load capacity

*Gabion mattress mesh opening 3.8 x 7.6 cm

 Gabion basket international standard to follow:

Gabion basket Material: Galvanised steel
Gabion basket Dimensions: as specified
Gabion basket Mesh opening: 5 x 5 cm / 10 x 5 cm / 30 x 20 cm / 7.6 x 7.6 cm / 10 x 10 cm (L x W)
Gabion basket Wire diameter: 4 mm
Spot welded
High load capacity

*Gabion mattress mesh opening 3.8 x 7.6 cm

  Gabion basket tolerance:

Gabion basket tolerance of dimensions:
Mesh opening: +/- 3.2mm the maximum (1/8 inch)
Length / width / height: +/- 5% the maximum

*Gabion mattress tolerance:
Length / width: +/- 5% the maximum
Height: +/- 10% the maximum

  Relavant charts for gabion basket

                          Table 1- Regular welded gabion baskets specification

                                                       Table 2 - Typical gabion baskets / boxes size

  Packing and shipping  of gabion baskets / Boxes

In order to save freight (inland & over sea transportation),
gabion basket are supplied unassembled in flat panels together with accessories.

Then all stuff strapped neatly on pallets for easy handling. We would mark 'strapped on pallets' clearly in quote.

(Another option is no pallets for cost effective purpose. )

Plywood pallets - according to export packing requirement.

Weight of one pallet is about 500kg  - 700kg.


 Certificate & Testing

Our factory has passed ISO 9001: 2008 certificate.
Our product has passed testing (CMA, CNAS, SGS).
Test report could be supplied for COC certificate.
