Home > Products > New Products > AMS Two Men Aerial Working Platform 0086 371 65866393

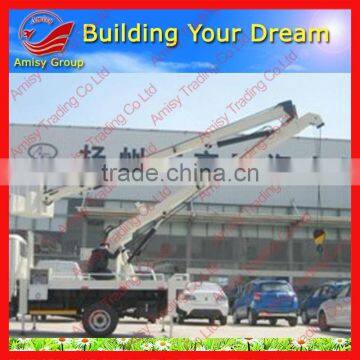

AMS Two Men Aerial Working Platform 0086 371 65866393

FOB Price

US$ 6,000 - 50,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Henan, China		Brand Name	Amisy
Model Number	AMSTM0014

Product Description

Specifications

1.Aerial Working Platform
2.Truck (3.5ton chassis, RHD, Diesel Engine Driven:95 KW)
3.Lifting Height:10-20M

Aerial Working Platform 0086 371 65866393

1. Safety Notice

1) Never overloading.

2) Hydraulic system pressure should not pass 8-10Mpa.

3) The wind when the machine works outside must be less than 5 classes.

4) Working in high place must not move violently.

5) When the platform works, the machine should not move around.

6) usage forbidden when the landing legs are fold.

2. Repairmen and Maintenance

1) After working, the lift platform must be fold and should be cut power supply off.

2) The machine should be kept inside room.

3) The joint of machine must be lubricated frequently.

4) The hydraulic oil must be changed in two months when the machine is first used. And afterward the hydraulic oil should be changed by the working situations. (Hydraulic oil NO.10 in summer, and winter 30#)

5) The seal ring should be changed immediately when it does not work well.

6) The hydraulic components must be cleaned enough when they are changed. If the component is not available, the input part of oil cylinder should be sealed to prevent the crash and eyewinker of oil system.

3. Parameter

Model	AMSTM0014
Platform
Max. platform capacity	200kg (2person)
Max. work height	14m
Max. platform height	12.3m
Max. work radius	6.5m
Boom Articulating boom
Up-boom lifting angle	70°
Down-boom lifting angle	70°
Little-boom abduction angle	90°
Rotation	360°
Hoist
Max. lifting height	7.3m
Max. lifting weight	1000kg
outriggers
Longitudinal span	2700mm
Lateral span	2750mm
Adjustment	Individual adjustment

4. PARTS LIST OF 14M WORKING TRUCK

1. Outrigger pipeline 2 pieces

2. Trip switch YBLX-19 1 piece

YBLX-K1 1 piece

3. Button switch 2 pieces

4. Hydraulic gasket combination 14 pieces

5. Outrigger cylinder seals 1 piece

5. More Photos
