6203 Rubber Shield Ball Bearings
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | BUC, BUC,NCTX | Bore Size | 17, | |
| Outside Diameter | 40, | Model Number | 6203 | |
| Precision Rating | P0,P5,P6 | Seals Type | ZZ,rs, open | |
| Number of Row | Single Row | Place of Origin | Zhejiang, China |
Product Description
Specifications

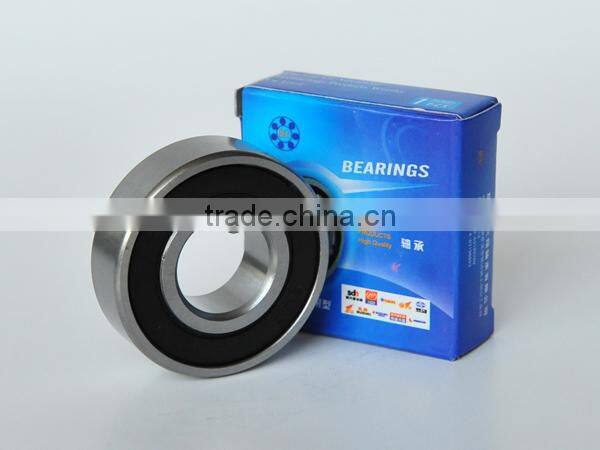

6203 rubber shield ball bearings1.Chrome steel
2.good quality
3.low vibration and low noise
4.high abration resistance
6203 rubber shield ball bearings:
The parameters of a part of 6200 seires deep groove ball bearing are described as follows:
Bearing No. | Bore mm | Outer Diameter mm | Width OPEN mm | Radius mm | Load Rating | |
Dynamic | Static | |||||
623 | 3 | 10 | 3 | 0.15 | - | - |
624 | 4 | 13 | 4 | 0.2 | 1.15 | 0.4 |
625 | 5 | 16 | 5 | 0.3 | 1.88 | 0.68 |
626 | 6 | 19 | 6 | 0.3 | 2.8 | 1.05 |
627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.4 |
628 | 8 | 24 | 8 | 0.3 | 4 | 1.59 |
629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.96 |
6200 | 10 | 30 | 9 | 0.3 | 5.1 | 2.38 |
6201 | 12 | 32 | 10 | 0.6 | 6.82 | 3.05 |
6202 | 15 | 35 | 11 | 0.6 | 7.65 | 3.72 |
6203 | 17 | 40 | 12 | 0.6 | 9.58 | 4.78 |
6204 | 20 | 47 | 14 | 1 | 12.8 | 6.65 |
62/22 | 22 | 50 | 14 | 1 | 13.35 | 7.25 |
6205 | 25 | 52 | 15 | 1 | 14 | 7.88 |
62/28 | 28 | 58 | 16 | 1 | 15.52 | 8.56 |
6206 | 30 | 62 | 16 | 1 | 19.5 | 11.2 |
62/32 | 32 | 65 | 17 | 1 | 19.6 | 12.18 |
6207 | 35 | 72 | 17 | 1.1 | 19.75 | 13.67 |
6208 | 40 | 80 | 18 | 1.1 | 22.71 | 15.94 |
6209 | 45 | 85 | 19 | 1.1 | 24.36 | 17.71 |
6210 | 50 | 90 | 20 | 1.1 | 26.98 | 19.84 |
6211 | 55 | 100 | 21 | 1.5 | 33.37 | 25.11 |
6212 | 60 | 110 | 22 | 1.5 | 36.74 | 27.97 |
6213 | 65 | 120 | 23 | 1.5 | 57.2 | 40.1 |
6214 | 70 | 125 | 24 | 1.5 | 62.2 | 44.1 |

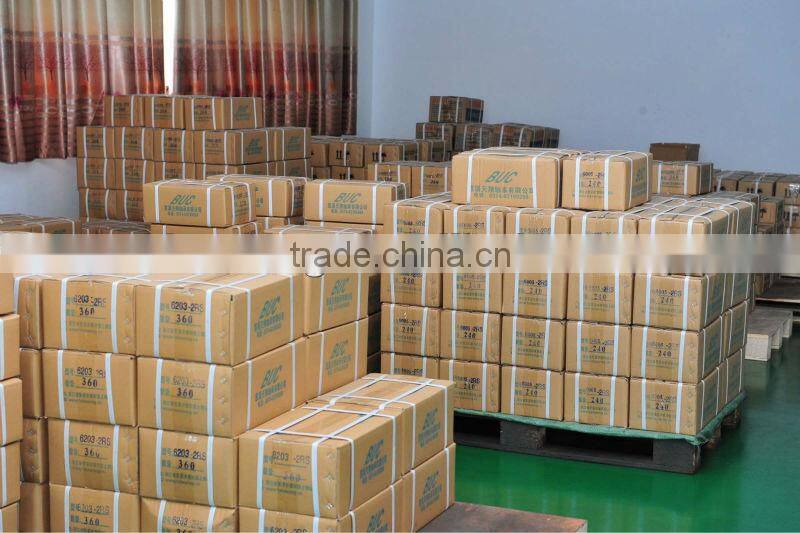

1. all the overseas products will be carefully packed by pallet.
6. our factory has passed ISO9001:2008 quality system

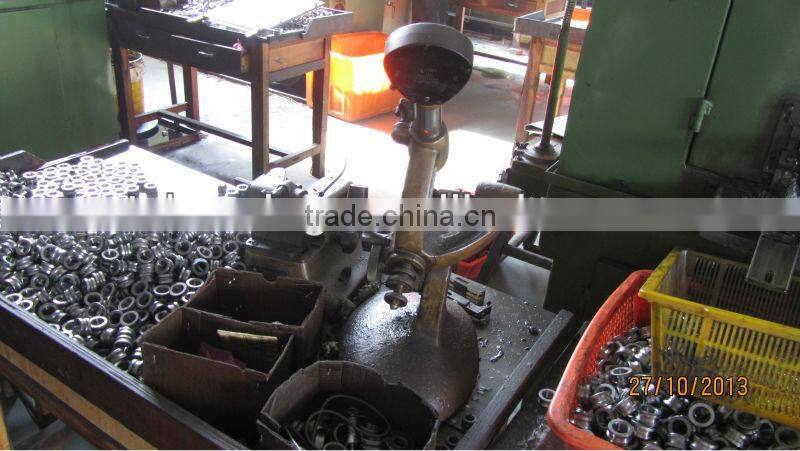

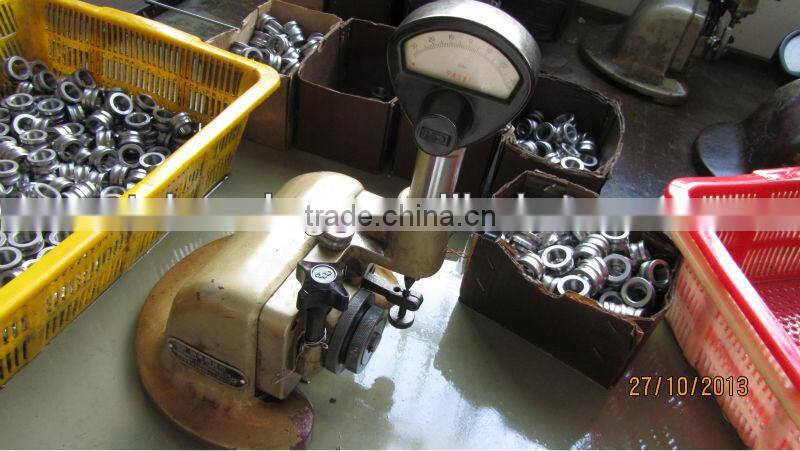

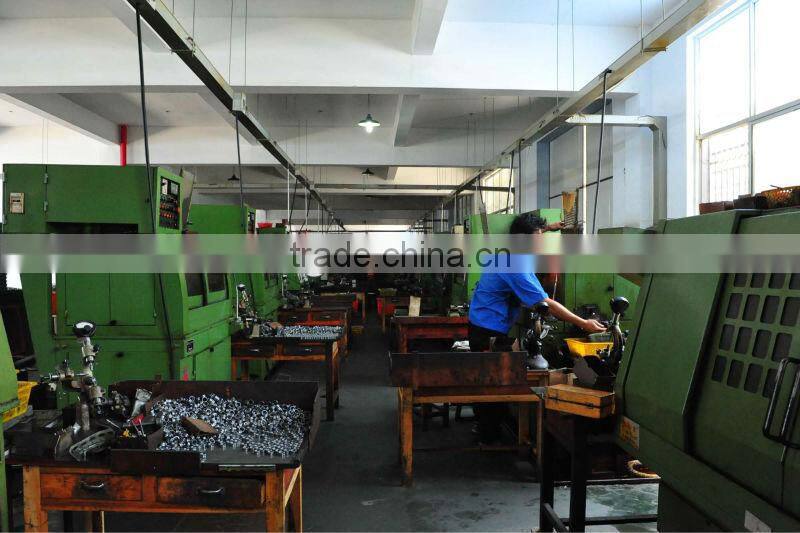

7. at present, there are 10 automatic production line in total more than 100 equipments. each bearing will be inspected during each procedure, while before packed it will be fully inspected again.
8. we will attend the exhibitions each year.
1. Material for bearings: usually speaking, there are three kinds of materials: chrome steel, carbon steel and stainless steel.
2. usage: bearings can be used in many industries. OUR BEARINGS' ADVANTANG is made by chrome steel with low noise but high precision, can meet different industry's different requirements.
