Home > Products > flour mill single equipment > DTG series scoop elevator

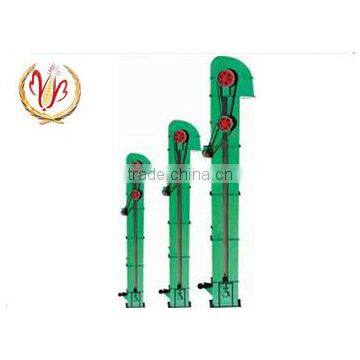

DTG series scoop elevator
- 10000 Set / Sets per Month
- XINGANG
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Hebei, China | |
| Brand Name | huanpai | Model Number | DTG | |
| Production Capacity | 5-500T/D | Voltage | 380V | |
| Power(W) | according to the product type | Weight | according to the product type | |
| Dimension(L*W*H) | according to the product type | Certification | ISO9001 | |
| Warranty | 1 year for free | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
DTG series scoop elevatorIt is used for the lifting of power and granule and is the main machine for vertical conveying.
DTG series scoop elevator
Brief Introduction:
Main types:DTG20/9,20/11,26/13,36/18,48/25.
It is used for the lifting of power and granule and is the main machine for vertical conveying.
Model | Diameter of main wheel mm | Winnowing pan size L×B | Speed ratio | Buckets/m | Capacity t/h | band width mm | |
granules | powder | ||||||
TDTG type I (Motor direct driving) | |||||||
TDTG30/10 | 300 | 100×90 | 1:17 | 6.5 | 4-6 | 1-2 | 125 |
TDTG30/14 | 300 | 134×115 | 1:17 | 6.5 | 6-10 | 2-3 | 150 |
TDTG36/18 | 360 | 180×140 | 1:17 | 4 | 10-15 | 3-5 | 200 |
TDTG40/18 | 400 | 180×140 | 1:17 | 4 | 15-18 | 4-10 | 200 |
TDTG50/24 | 500 | 238×166 | 1:17 | 3.5 | 40-50 | 12-16 | 250 |
TDTG type II (motor driving with belt or chain) | |||||||
TDTG5S | 180 | 116×92 | 1:17 | 6.5 | 2-4 | ≤1 | 125 |
TDTG6S | 196 | 150×110 | 1:17 | 5.5 | 4-10 | 1-2 | 150 |
TDTG7S | 300 | 165×120 | 1:17 | 5 | 6-12 | 2-4 | 180 |
TDTG8S | 356 | 208×140 | 1:17 | 5 | 12-18 | 4-10 | 210 |
TDTG10S | 500 | 238×166 | 1:17 | 3.5 | 40-50 | 10-16 | 250 |
Our single products:
Our products are exported to Australian, America, Canada, Belgium, Egypt, Algeria, Zambia, Congo, Kenya, Ethiopia, Uganda, Yemen, Tanzania, Tajikistan, Afghanistan, Vietnam, Israel,Mozambique,Kazajastan and other country.
If you are interested in our product. please contact us. And tell me your detailed demand (production capacity, and quality...)and your company's information in the mail.
looking forward to your reply ASAP
best regards
Hussein Ali (General Manager )
