2013 Automatic Parallet Paper Tube Making Machine Paper Core Parallet Paper Tube Making Machine
- qingdao china
- T/T Credit Card PayPal
You May Like
-
Various Usage Paper Tube Winding Machine Paper Cor Make Machine Tube Machine
-
Spiral Automatic Paper Tube Rolling Machine For Paper Tube Diameter 12-600mm Whatsapp +8618537138115
-
Various Usage Toilet Paper Roll Core Spiral Paper Tube Making Machine Winding Machine Whatsapp +8618537138115
-
High Function Full Automatic Spiral Paper Tube Machine Spiral Paper Tube Core Winding Machine
-
Professonal Full Automatic Parallel Paper Tube Machine Spiral Paper Tube Core Winding Machine Whatsapp +8618537138115
-
Automatic High Speed Spiral Paper Tube Cutting Machine Paper Core Tube Pipe Cutter Machine 10 Models for Choose
Product Details
| Condition | New | Product Type | Paper Core Machine | |
| Processing Type | Winding Machine | Place of Origin | Henan, China | |
| Brand Name | Meida | Model Number | 130B | |
| Voltage | 380v | Power(W) | 6000w | |
| Dimension(L*W*H) | 1800x1500x1200mm | Weight | 400kg | |
| Certification | CE | Warranty | 12 month | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
paper tube maker1 can made different size paper tube
2 different model of different productivity
3 automatic wor

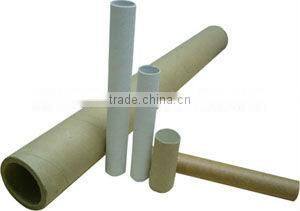

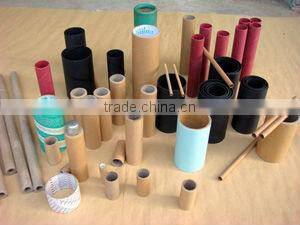

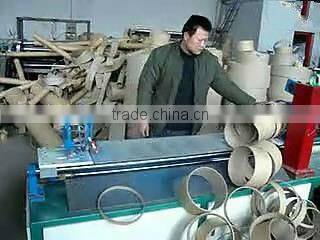

Paper Tube Made by our Machine

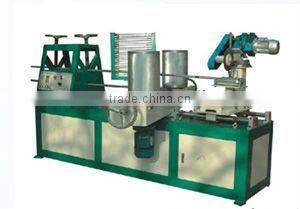

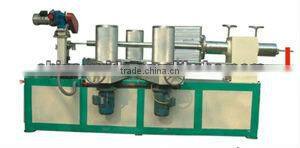

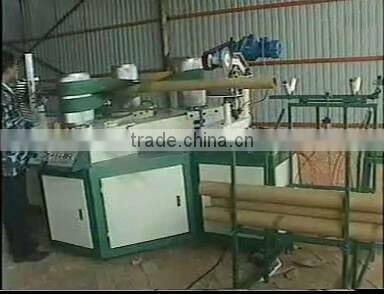

Paper Tube Paper Core Make Machine

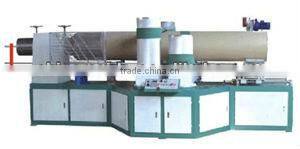

3 head model 4head model
2 head model
Features
1 automatic gluing
2 automatic cutting +automatic follow to the ground
3 super low noise <65 db
4 automatic adjust the speed when cutting
5 stainless steel glue bowl, PU glue blades,long use time
6 multipoint operate panel or digital control function,easy operate
7 tidy cutting
8 RHVC can save electricity 30-60% ,PLC computer control
Different Model As Below
( 2 head ) Model CT-80B
Winding Paper Ply | 3-16 ply | Need worker | 1-2worker |
Winding Pole fixed ways | Chucking + Flange | Main frame speed ratio | Turbine speed reducer 1:30 |
Winding pole diameter | 15-100 mm | Winding Tube speed | 1-12m/min |
Winding Head | 2 head single belt | Cutting ways | Single blade/ saw blade |
Main power | 7.5 kw | Mainframe size | 1800x1800x2200 mm |
Assist power | 1.1 kw | Length fix ways | Double infrared + positioning plate |
Gluing ways | Single / Double side gluing | Speed control | Frequency + PLC |
Power | 3 phase | Paper tube thickness | 1.5-8mm |
( 3 head ) Model CT-250BA
Winding Paper Ply | 3-23 ply | Need worker | 1-2 worker |
Winding Pole fixed ways | Chucking + Flange | Main frame speed ratio | Turbine speed reducer 1:30 |
Winding pole diameter | 30-200 mm | Winding Tube speed | 1-12 m/min |
Winding Head | 3 head | Cutting ways | Single blade/ saw blade |
Main power | 11kw 9kw | Mainframe size | 3200x2000x1800 mm |
Assist power | 0.55kw | Length fix ways | Double infrared + positioning plate |
Gluing ways | Single / Double side gluing | Speed control | Frequency + PLC |
Power | 4 phase | Paper tube thickness | 1.5-15 mm |
( 4 head ) Model CT-500B
Winding Paper Ply | 3-40 ply | Need worker | 3-5 worker |
Winding Pole fixed ways | Chucking + Flange | Main frame speed ratio | Turbine speed reducer 1:30 |
Winding pole diameter | 70-600 mm | Winding Tube speed | 1-8 meters/ min |
Winding Head | 4 head double belt trapezoid setting | Cutting ways | Single blade/ saw blade |
Main power | 18 kw | Mainframe size | 4100x1800x1600 mm |
Assist power | 3 kw | Length fix ways | Double infrared + positioning plate |
Gluing ways | Single / Double side gluing | Speed control | Frequency + PLC |
Power Source | Four Phase | Paper tube thickness | 1.5-25mm |
Above model are just for your reference
if you have your own demands,pls tell us,so we can show you the most suit model

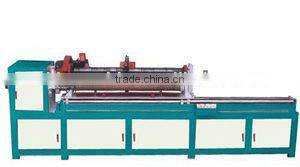

Paper Tupe Cutter Machine
Model CT-1500B
Cut tube inside diameter | 50-125 mm |
Cut tube length | 50-1500 mm |
Cut tube thickness | 3-10 mm |
Model CT-1260B
Cut length | 500-1260mm | Need worker 1 worker | |
Cut tube diameter | 16-50mm | Cut speed | 600-900 tubes/hour |
Main power | 1.1kw x 2 | Main size | 2700x1100x1450 mm |
Cut blades quantity | 2 | Cut thickness | 1.5-10mm |
Voltage | 380v | Speed control | PLC + words |
Model CT-800A paper tube cutter
Cut tube inside diameter | 15-100mm | Cut tube length | 40-800mm |
Cut tube thickness | 0.5-10mm | Cut tube speed | 10-20 tube/min |
