Home > Products > construction and engineering machines > Low Maintenance! Vibratory Single Direction Plate Compactors for Sale
Low Maintenance! Vibratory Single Direction Plate Compactors for Sale
US$ 450 - 600
/ Piece
5 Pieces(Min. Order)
- shanghai
- T/T L/C PayPal Other
- 25 days
You May Like
-
Foward Plate Compactor GYP-15 Series With Gasoline Engine
-
Honda GX160 Type Walk Behind Vibrating Compactor GYP-15 Series
-
Vibrating Soil Plate Compactor With Honda GX160 Gasoline Engine ,Road Compactor
-
Forward Plate Compactor With Honda GX160 Gasoline Engine ,Road Compactor
-
Vibrating Compactor With Honda GX160 Gasoline Engine ,Road Compactor
-
Vibrating Plate Compactor With Honda GX160 Gasoline Engine
Product Details
| Brand Name | geyao | Place of Origin | China | |
| Model Number | GYP-15 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 YEAR | |
| Weight | 97kgs | Dimension(L*W*H) | 53*50 | |
| Power Type | Gasoline | Application | road construction | |
| Power(W) | 4.0kw | Condition | New |
Product Description

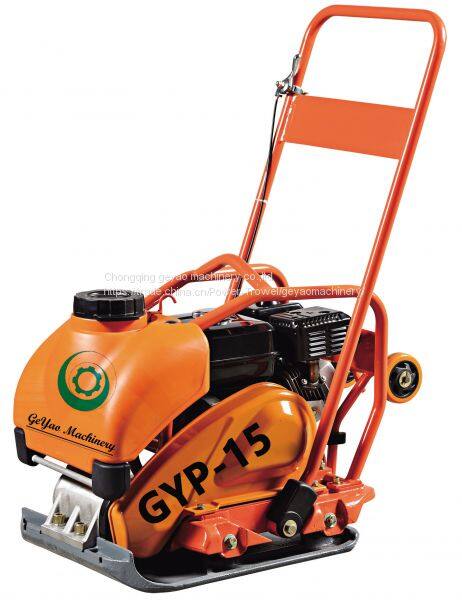

Low Maintenance! Vibratory Single Direction Plate Compactors for Sale
Features and Advantage:
1.Ductile iron base plate provides better durability
2.Open plate provides self cleaning
3.Radius base plate for easy access to corners
4.Centrally located lifting bar allows easy transportation
5.Sealed belt cover to prevent sand and soil in
6.Heavy-duty shock mounts reduce vibration to the upper engine & handle
7.Transport wheel for easy transportation around sites
8.Water tank for asphalt use
9.Optional polyurethane pad for paving
Specification
Model | GYP-15-1 | GYP-15-2 | GYP-15-3 | GYP-15-4 |
Engine Type | Chinese Diesel KM170F | Chinese Petrol Engine | Robin EX17 | Honda GX160 |
Power Kw(hp) | 3.1(4.2) | 4.8(6.5) | 4.2(5.7) | 4.0(5.5) |
Weight Kg(lbs) | 107(374) | 97(212) | 97(212) | 97(212) |
Frequency RPM | 5500 | |||
Centrifugal Force KN | 13 | |||
Travel speed cm/s(ft/min) | 40(131) | |||
Efficiency ㎡/hr(ft2/hr) | 660(7100) | |||
Plate size cm(in) | 53*50(21*20) | |||
Water tank capacity L | 12 | |||
