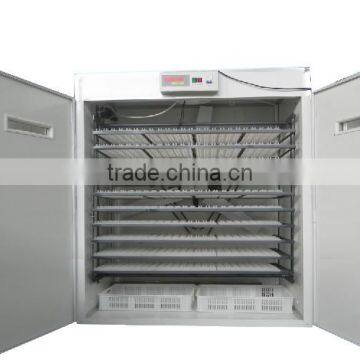

fully automatic incubator hatching 3520 eggs

Incubator parameters:

*Incubator capacity:

(1)Chicken egg capacity: 3520 eggs

(2)Quail / bird egg capacity: 8840 eggs

(3)Duck/Turkey egg capacity:2520 eggs

(4)Goose egg capacity :1440 eggs

(5) Dove egg capacity :4480 eggs

*Power:700W

*Voltage: 220V/50Hz

*Weight:185kg

*Dimension:  175*82*180cm

User manual :

I) Overview:

Intelligent temperature-humidity incubator controller is a computer controlled system with full intelligence. It is designed for the incubation industry with employment of the latest type of microprocessor and electrical element. The processor used in this incubator controller is imported from Japan. The controller works with strong anti-jamming capability and high stability. The temperature sensor within it, which is imported from USA, measures in high precision and wide range. The high performance humidity sensor also works in high precision, and in addition, it could compensate the tempreature to make the performance more reliable. The four screens are designed in a user friendly way. Two of them show the temperature and humidity in real time. The other two provide the function for user setting the turn number and hatch period length, and displaying the temperature and humidity set before. In the meantime ,user can free to choose the customs ,chicken ,duck ,goose ,dove and pheasant incubation models .

2).Main Technical Factors:

1.Range of temperature display: 0~99 ℃

2.Precision of temperature measurement: ±0.1℃

3.Range of humidity display: 0~90 PercentageRH

4.Precision of humidity control:±3 PercentageRH

5. Output channels: 6 channels (main heater, backup heater, fan, turn left, turn right, and air refresher)

6.Output current: 30A for both main and backup heater, while 10A for others.

7.Number of turns: maximum is 999

8.Turn period: adjustable between 0 and 999 minutes. (Default is 90 minutes)

9. Duration of turning: adjustable between 0 and 999 seconds. (Default is 180 seconds)

10. Air refreshing period: adjustable between 0 and 999 minutes. (default is 120 minutes)

11.Duration of air refreshing: adjustable between 0 and 999 seconds. (default is 15 seconds)

12.Length of measurement line: about 1.5 meters

3).Working conditions:

1.Working voltage: AC 180V ~240V; Frequency 50Hz

2.Relative humidity: less than 85 Percentage

3. Environment temperature: -20℃~70℃

The incubation setting of this machine divided into automatic incubation and custom incubation .

4).Automatic incubation settings:

After start up and waiting for the temperature display normal ,having the selection type (selection type of this machine divided into : chicken ,duck ,goose ,dove,pheasant and custom ect.

Operation as below : Pressing the MODEL button and UP 3 seconds under working mode,enter egg incubation.if incubation other selection ,press the MODEL button again and up 3 seconds ,enter in turn :duck ,goose,dove,pheasant and custom etc.

Pressing MODEL button and rasing the hands , can view the times of egg turning and the days of incubation ;press MODEL button again ,return to temperture settings and humidity settings .(Remark :the times of egg turning after outage to zero ,and days of incubations after outage to memory).

5).Incubation time and parameter table under six incubation model:

Incubation time and parameter table of duck egg

Incubation time and parameter table of goose egg

 Incubation time and parameter table of dove egg

Incubation time and parameter table of pheasant egg

Incubation time and parameter table of chicken egg

Packaging & Shipping

(1)Supply all accessories of incubator

(2)Quality warranty:1-3 years
