Home > Products > Marine Enirnmental protection product > ST Series Marine Primary Treatment of Wastewater

ST Series Marine Primary Treatment of Wastewater

FOB Price

US$ 5,000 - 40,000 / Unit

1 Unit(Min. Order)

Port Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Chongqing, China		Brand Name	MAXPOWER
Model Number	MP-series

Packaging Details

Regular packing

Product Description

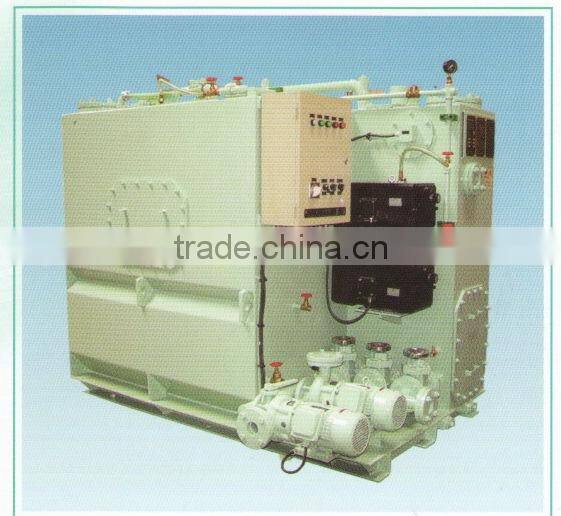

ST SERIES MARINE PRIMARY TREATMENT OF WASTEWATER OF MAXPOWER

Overview:

Serial products ST are imported the advances technology HAMWORTHY, ENFLAND. Serial products STL are designed and manufactured by ourself based on plants imported. These plants ST and STL make use of bio-chemistry and oxidation to purify the sewage and meet the requirements of IMO MAR POL 73/78 and nations current requirements of sewage discharged, and approved by CCS, EC, NK,DNV, USCG and other classification societies.
This plant has compact structure fully automatic operation, good quality of purified water. the effluent is colourless and tasteless.

Classification society certificates:

CCS,ABS,BV,EC,RS,DNV,USCG,etc.

Description:

1. Treated water BOD5 ≤50mg/L ;

2. Draining water suspended solids≤50mg/L ;

3. Draining water coliform≤250mg/100L ;

4. Suitable to applide in ships and vessels with crew 10-600persons and off shore platforms .

Structure:

Main Technical Paramters:

Model	Ma flow Litres/Day Soilonly	A	B	C	D	E	F	G	H	J	K	L	M	N	P	Weight Full kg	Weight Empty
ST1	800	1500	1120	1150	890	300	450	250	130	100	355	200	330	136	125	2375	1015
ST2	1600	2000	1250	1150	1020	250	750	416	294	108	361	200	330	166	172	3350	1485
ST3	2300	2000	1250	1600	1020	250	750	416	294	308	256	200	330	166	172	4300	1760
ST4	3010	2225	1400	1600	1170	355	760	406	412	338	356	200	350	186	192	5440	1950
ST6	4550	2700	1600	1700	1370	350	1000	406	414	324	401	200	350	186	192	7275	2140
ST8	6000	3000	1800	1700	1570	400	1100	526	524	444	401	300	350	186	192	9270	2660
ST10	7400	3400	2000	1700	1770	500	1200	606	724	524	401	300	350	186	192	11575	2985
ST13	9800	4400	2000	1700	1770	550	1100	580	1144	524	401	300	350	186	192	15600	3370
ST15	11000	3700	2500	2050	2308	600	740x4	750	612	694	395	300	350	186	192	18000	3900
ST20	14500	4620	2500	2050	2300	900	2140	830	1000	600	400	300	350	186	192	23000	4750
ST25	17500	4620	2750	2200	2528	340	900	986	942	924	395	300	350	186	192	27750	5250
ST30	22000	5012	2750	2400	2528	560	815	986	916	924	395	300	350	186	192	33000	5880
ST40	30000	6000	3200	2523	2988	431	734X9	1450	600	924	395	500	350	186	192	45000
ST50	37000	7000	3500	2400	3288	444	764X9	1450	600	1050	420	500	350	186	192	66700
ST60	44000	7000	3500	3000	3288	444	764X9	1450	600	1050	420	500	350	186	192	66700	12700
STB1	1200	1500	1120	1150	890	300	450	250	130	100	355	200	330	136	125	2375	1015
STB2	2400	2000	1250	1150	1020	250	750	416	294	108	361	200	330	166	172	3350	1485
STB3	3450	2000	1250	1600	1020	250	750	416	294	308	256	200	330	166	172	4300	1760
STB4	4500	2225	1400	1600	1170	355	760	406	412	338	356	200	350	186	192	5440	1950
STB5	5600	2700	1600	1600	1370	350	1000	406	414	324	356	200	350	186	192	6120	2080
STB6	6800	2700	1600	1700	1370	350	1000	406	414	324	401	200	350	186	192	7275	2140
STB8	9000	3000	1800	1700	1570	400	1100	526	524	444	401	300	350	186	192	9270	2660
STB10	11100	3400	2000	1700	1770	500	1200	606	724	524	401	300	350	186	192	11575	2985
STB15	16500	3700	2500	2050	1770	600	740X4	750	612	694	395	300	350	186	192	18000	3900
STB20	21750	4620	2500	2050	2300	900	2140	830	1000	600	400	300	350	186	192	23000	4750

Application field:

The plant ST is used in all kinds of new and old ships or oil rigs.
