WCBx Series Marine Sewage in Water Pollution

Regular packing

WCBX SERIES MARINE SEWAGE IN WATER POLLUTION OF MAXPOWER

      Maxpower Machinery Co., Ltd. is a manufacturer and trader specialized in the research, development and production of environmental protection products. We are located in Chongqing, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.

Trade & Market:

    Main Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Northern Europe, Southern Europe, South Asia, Domestic Market.

Overview:

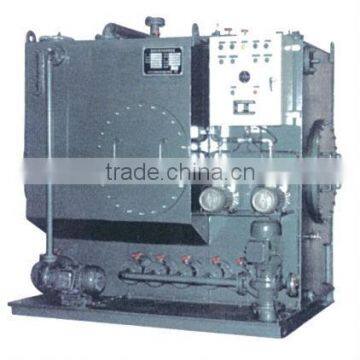

    WCBx series of new biochemical sewage treatment plant using biochemical principles to treat domestic sewage. Both of the device structure and performance satisfy the requirement of GB10833-89 Marine Sewage Treatment System Technical Conditions, and it has the characteristics of small size, light weight, compact structure. The treated sewage satisfies discharging standards of national regulations, but also to meet the requirements of international discharging standards.

    WCBx Series Sewage Treatment Plant consists of 5 watertight tanks. These 5 tanks respectively are a crushing tank, two oxidation tanks,  a settlement tank and a sterilizing tank.

Classification society certificates:

     CCS,ABS,BV,EC,RS,DNV,USCG,etc.


Description:

    1.After the sewage from toilet flows into the collecting crushing tank by the way of nature inflow and the large particles of suspended solids are crushed completely by the crushing pump through bar screen to two stages  contact oxidation tank to aerate, and to contact with biofilms by flowing through fillings.

    2.The organic pollutant will be disgested by biofilms, and CO₂ and water are generated. After further treatment of the biofilm in the second contact tank, the sewage will flow into settlement tank for settlement and deslagging, and then is sent to catchment tank.

    3.  When the catchment tank collects a certain amount of liquid, the process pump is started and the liquid is put into the ultrafilter to filter the slag by the water pump.

    4. The ultraviolet sterilizing plant kills the bacteria in the fluid, and treated water is diacharged overboard as an effluent.

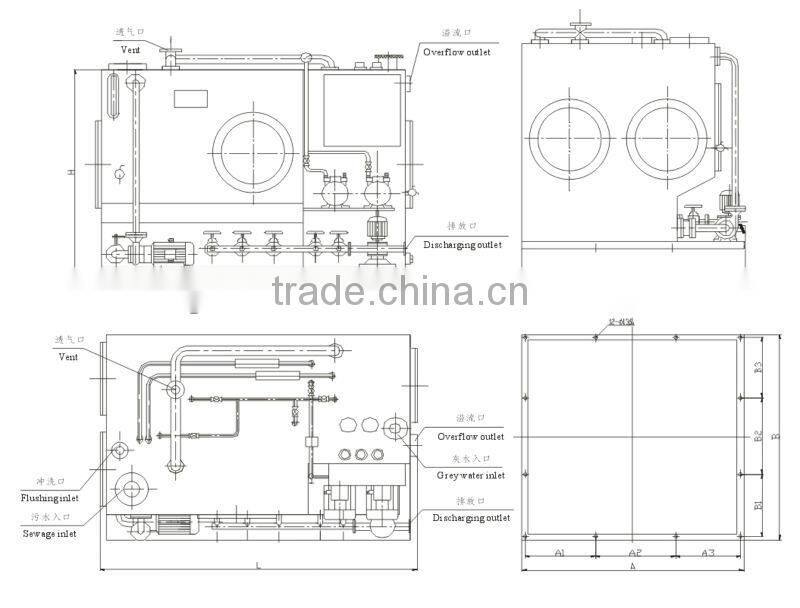

Structure:

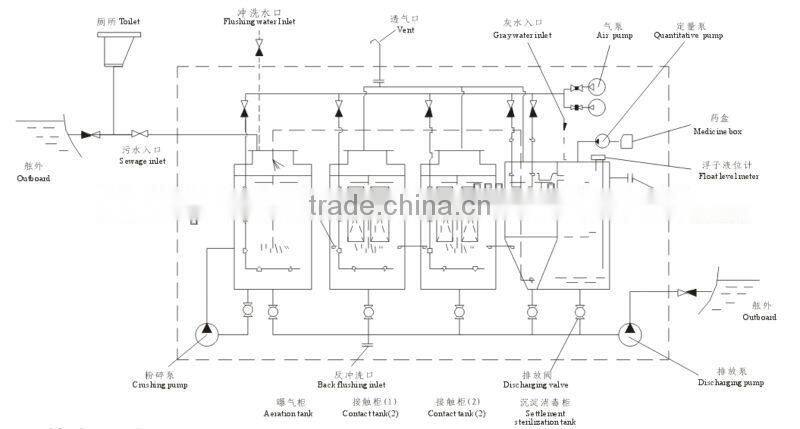

System principle drawing:

Application field:

    The device has strong corrosion resisitance and applies to sea water to flush toilets.
