305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel From Powerician
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Mono 275W Solar Panel for Grid Tied Project Solar Power System OEM Solar Panel
-
High Efficiency Poly Solar Panel Powerician 260Wp OEM Accepted High Quality Poly Panel
-
Powerician 250W Poly Solar Panel for Off Grid Power Solar Wind Hybrid System OEM Accepted
-
Full Auto 3KW 8CBM/h Head 71m Solar Pump System Solar Pump Irrigation System Kit NO. AK8-71-3K
-
2.2KW Solar Pump System Flow 3CBM/h Head 131m Home Water Supply Agriculture Irrigation System AK3-131-2K2
-
AC Solar Pumping System 400W 24 Meters Head Deliver 3 Tons per Hour
Product Details
| Brand Name | POWERICIAN | Model Number | PSP-305-72m | |
| Material | Monocrystalline Silicon | Size | 1950*990*45mm | |
| Number of Cells | 72 | Max. Power | 305Wp |
Product Description
305Wp Mono Solar Panel 0~+3% Power Tolerance Powerician Product
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.
OEM service is also provided.
Small quantity order is accepted by Powerician.
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
Features:
- Power tolerance (0~+3%) ensures the high relability of power output
- Drainage holes in frame design, ensures withstanding various weather condition
- High reverse current resistance design.
- TUV certified modules, with high level of wid loads (2400Pa) and snow load(5400Pa)
- Junction box and bypass diodes uarantee the moduls free of overheating and "hot spot effect"
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification
| Cell Type | Mono Crystalline 156x156mm |
| Number of Cells | 72(6x12) |
| Dimensions | 1950Lx990Wx45T mm |
| Weights | 24kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
| Output Cables | TUV, ±Length 900mm, 4.0mm2 |
Electric Parameters
| Max Power at STC(Pmax) | 300W | 305w | 310W | 315W | 320W | 325W | 330W |
| Short Circuit Current(Isc)-A | 8.74 | 8.79 | 8.89 | 8.95 | 9.04 | 9.14 | 9.24 |
| Open Circuit Voltage(Voc)-V | 44.6 | 45.1 | 45.4 | 45.9 | 44.9 | 45.1 | 45.5 |
| Max Power Current(Impp)-A | 8.21 | 8.26 | 8.35 | 8.41 | 8.48 | 8.58 | 8.66 |
| Max Power Voltage(Vmpp)-V | 36.5 | 36.9 | 37.1 | 37.5 | 37.7 | 37.9 | 38.1 |
| Module Effiency | 15.54% | 15.80% | 16.06% | 16.32% | 16.58% | 16.84% | 17.1% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Temperature Characteristics
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.44%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.06%°C |
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 3 or 6 |
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician

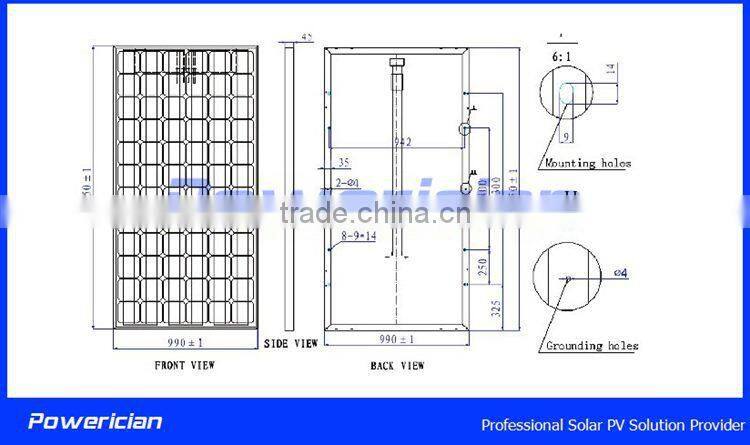

Mechanical Drawings
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician

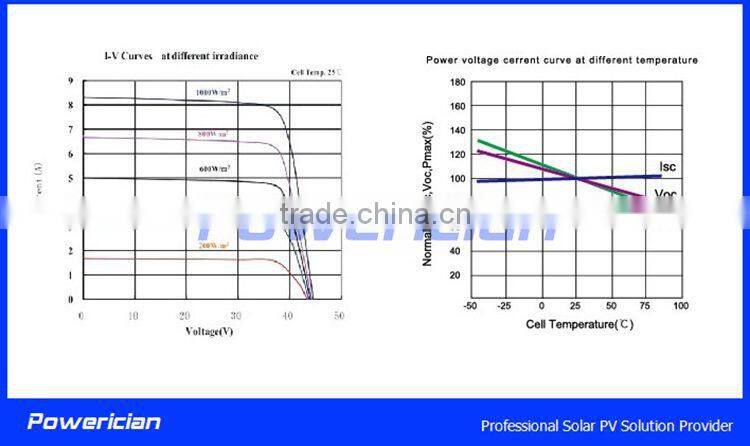

Performance Curve
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
Packing Coniguration
| Container | 20`GP | 40`GP |
| Pieces Per Pallet | 30 | 30 |
| Pallets Per Container | 14 | 28 |
| Pieces Per Container | 400 | 840 |
Each panel in one plastic bag.
30 pcs of panel in 1 carton box
Each carton box fixed on the pallet with belt
Wooden box is offered with extra charge
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
305W Mono Solar Panel for Grid Tied Solar Power Project OEM Accepted Solar Panel from Powerician
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
