Home > Products > Solar Modules > 270Wp Mono Solar Panel 0+3% Tolerance Solar Power Plant Solar Panel PV Module
270Wp Mono Solar Panel 0+3% Tolerance Solar Power Plant Solar Panel PV Module
US$ 166 - 169
/ Piece
10 Pieces(Min. Order)
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Mono Solar Panel 275Wp 0~+3% Power Tolerance 10 Years Manufacturing Warranty by Powerician
-
265Wp Mono Solar Panel From Powerician for Large Scale Solar Power Station
-
300Wp Mono Solar Panel From Powerician for Large Scale Solar Power Station
-
305Wp Mono Solar Panel 0~+3% Power Tolerance Powerician Product
-
310W Mono Solar Panel For Solar Power System 0~+3% Tolerance Class A Solar Cell
-
250Wp A Class Poly Solar Panel for On Grid System Grid Tie System
Product Details
| Brand Name | POWERICIAN | Model Number | PSP-270-60m | |
| Material | Monocrystalline Silicon | Size | 1640*990*35mm | |
| Number of Cells | 60 | Max. Power | 270Wp |
Product Description
270Wp Mono Solar Panel 0+3% Power Tolerance for on grid system
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.
OEM service is also provided.
Small quantity order is accepted by Powerician.
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
Product Description
Features:
- Power tolerance (0~+3%) ensures the high relability of power output
- Drainage holes in frame design, ensures withstanding various weather condition
- High reverse current resistance design.
- TUV certified modules, with high level of wid loads (2400Pa) and snow load(5400Pa)
- Junction box and bypass diodes uarantee the moduls free of overheating and "hot spot effect"
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification
| Cell Type | Mono Crystalline 156x156mm |
| Number of Cells | 60(6x10) |
| Dimensions | 1640Lx990Wx35T mm |
| Weights | 19kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
| Output Cables | TUV, ±Length 900mm, 4.0mm2 |
Electric Parameters
| Max Power at STC(Pmax) | 250w | 255W | 260W | 265W | 270W | 275W | 280W |
| Short Circuit Current(Isc)-A | 8.74 | 8.85 | 8.89 | 9.02 | 9.07 | 9.21 | 9.35 |
| Open Circuit Voltage(Voc)-V | 37.3 | 37.4 | 38.0 | 38.3 | 37.8 | 38.0 | 38.2 |
| Max Power Current(Impp)-A | 8.21 | 8.32 | 8.35 | 8.48 | 8.51 | 8.63 | 8.72 |
| Max Power Voltage(Vmpp)-V | 30.5 | 30.6 | 31.1 | 31.3 | 31.7 | 31.9 | 32.1 |
| Module Effiency | 15.40% | 15.71% | 16.01% | 16.32% | 16.63% | 16.94% | 17.25% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Temperature Characteristics
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.44%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.06%°C |
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 3 or 6 |

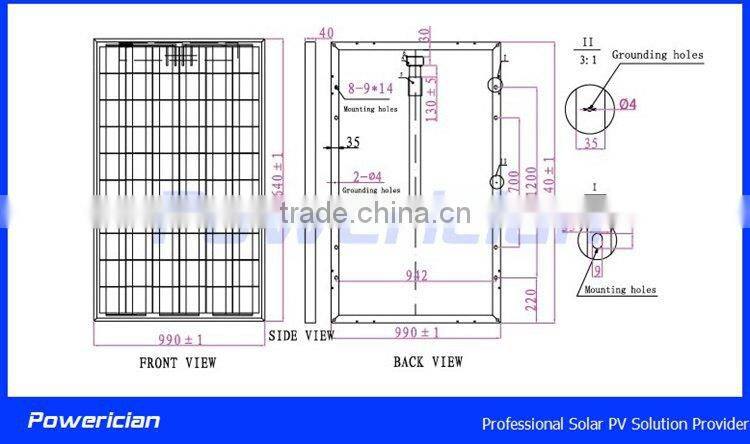

Mechanical Drawings
Performance Curve
Packaging & Shipping
Packing Coniguration
| Container | 20`GP | 40`GP |
| Pieces Per Pallet | 30 | 30 |
| Pallets Per Container | 14 | 28 |
| Pieces Per Container | 400 | 840 |
Each panel in one plastic bag.
30 pcs of panel in 1 carton box
Each carton box fixed on the pallet with belt
Wooden box is offered with extra charge

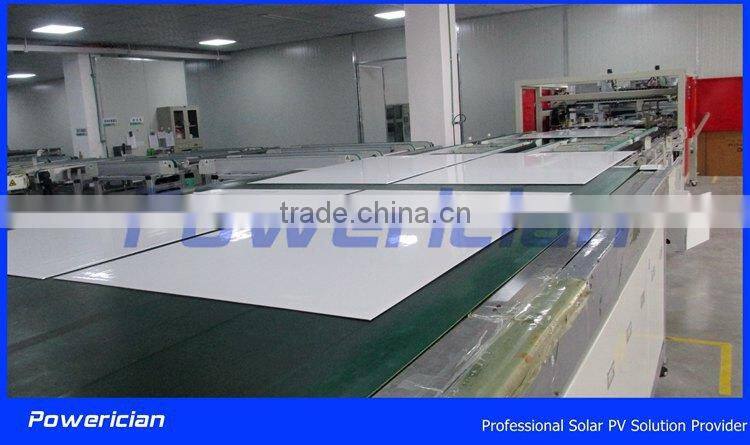

Workshop Tour
Remarks
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
