Home > Products > Solar Modules > Powerician 255Wp Poly Solar Panel 0~+3% Power Tolerance

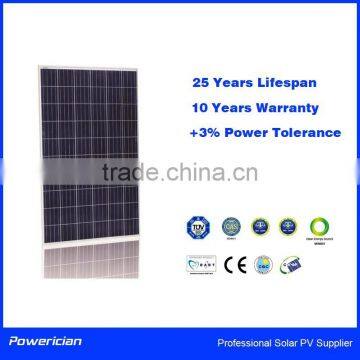

Powerician 255Wp Poly Solar Panel 0~+3% Power Tolerance
USD $122 - $128
/ Piece
10 Pieces(Min.Order)
- 12500 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Powerician 260Wp Poly Solar Panel 0~+3% Power Tolerance
-
Cheap Solar Panel 265Wp In Stock High Efficiency Poly Solar Module 265Wp for Sale High Quality
-
High Quality Solar Panel Mono 260W Rooftop Solar Module Solar Battery 260W
-
270Wp Mono Solar Panel 0+3% Tolerance Solar Power Plant Solar Panel PV Module
-
Mono Solar Panel 275Wp 0~+3% Power Tolerance 10 Years Manufacturing Warranty by Powerician
-
265Wp Mono Solar Panel from Powerician for Large Scale Solar Power Station
Product Details
| Brand Name | POWERICIAN | Model Number | PSP-250-60p | |
| Material | Polycrystalline Silicon | Size | 1640*990*40mm | |
| Number of Cells | 60 | Max. Power | 255Wp |
Product Description
Powerician 255Wp Poly Solar Panel 0~+3% Power Tolerance
Powerician supply high quality solar panels(solar modules) with compatitive price. Both monocrystalline silicon(mono) and polycrystalline silicon(poly) can be found at Powerician.
OEM service is also provided.
Small quantity order is accepted by Powerician.
We are authorized distributor of solar panles. These panels do not only supplied within the system, but alos supplied as single products.
Product Description
Features:
- Power tolerance (0~+3%) ensures the high relability of power output
- Drainage holes in frame design, ensures withstanding various weather condition
- High reverse current resistance design.
- TUV certified modules, with high level of wid loads (2400Pa) and snow load(5400Pa)
- Junction box and bypass diodes uarantee the moduls free of overheating and "hot spot effect"
- Product insuranced by world leadign insurance company.
- IEC61215,IEC61730,CE,RoHS certificated
- ISO9001 and ISO14001 certificated factory manufactered
Mechanical Specification
| Cell Type | Poly Crystalline 156x156mm |
| Number of Cells | 60(6x10) |
| Dimensions | 1640Lx990Wx40T mm |
| Weights | 21kg |
| Front Glass | 3.2mm Tempered Low Iron Glass |
| Frame | Clear Anodized Aluminium Alloy |
| Junction Box | IP65 with Bypass Diodes |
| Connector | MC4 compatible |
| Output Cables | TUV, ±Length 900mm, 4.0mm2 |
Electric Parameters
| Max Power at STC(Pmax) | 230W | 235w | 240 | 245W | 250W | 255W | 260W | 265W |
| Short Circuit Current(Isc)-A | 8.60 | 8.43 | 8.57 | 8.63 | 8.71 | 8.80 | 8.89 | 8.94 |
| Open Circuit Voltage(Voc)-V | 36.2 | 35.6 | 37.5 | 36.1 | 36.3 | 36.4 | 36.7 | 37.0 |
| Max Power Current(Impp)-A | 7.90 | 7.88 | 8.00 | 8.05 | 8.17 | 8.30 | 8.42 | 8.5 |
| Max Power Voltage(Vmpp)-V | 29.1 | 29.8 | 30.0 | 30.4 | 30.6 | 30.7 | 30.9 | 31.0 |
| Module Effiency | 14.17% | 14.47% | 14.48% | 15.09% | 15.40% | 15.71% | 16.01% | 16.2% |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
STC-- Irradianc 1000W/m2 Module temperature 25°C AM=1.5
Temperature Characteristics
| Norminal Operation Cell Temperature(NOCT) | 45±2°C |
| Temperature Coefficient of Pmax | -0.44%°C |
| Temperature Coefficient of Voc | -0.34%°C |
| Temperature Coefficient of Isc | 0.06%°C |
System Intergration Parameters
| Max System Voltage | DC 1000V |
| Max Series Fuse | 15A |
| Operation Temperature | -40 to +85°C |
| Number of Bypass Diodes | 3 or 6 |
Mechanical Drawings
Performance Curve
Packaging & Shipping
Packing Coniguration
| Container | 20`GP | 40`GP |
| Pieces Per Pallet | 27 | 27 |
| Pallets Per Container | 14 | 28 |
| Pieces Per Container | 356 | 756 |
Each panel in one plastic bag.
27 pcs of panel in 1 carton box
Each carton box fixed on the pallet with belt
Wooden box is offered with extra charge
