Product Details
| Brand Name | Powerician | Model Number | PMC-1230 | |
| Accessories | Other, NO | Flexibility | Portable |
Product Description

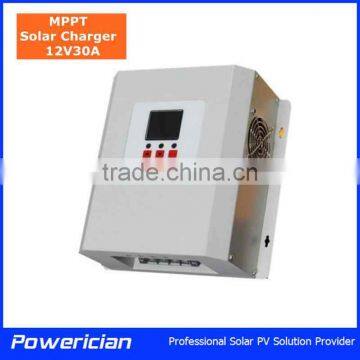

Powerician MPPT Solar Charger 12V 30A Charge Controller
Solar Charger also called as solar charge controller is an divice which charges batterys with energy collected by solar array.
MPPT solar chargers apply advanced MPPT (Maximum Power Point Tracking) technique, thanks to which energy transfer efficiency is raisen largely comparing with PMW chargers.
Appling rich experience and state-of-art Electrical Engineering & Electronics technique of Chinese Academy of Sciences, our charger controller is a REAL MPPT charger, the efficiency is 30% higher than normal PMW ones, and much cheaper than similar products on current market.
Excellent performance, high stablity,better price and OEM service composed our core competitiveness on this product line.
Hope we have the opportunity to provide our product and service to you.
Product Feathers:
- High efficiency 99.5% conversion efficiency, 30% more than PWM charging efficiency.
- Intelligent over temperature protection system, reduce energy loss and improve efficiency.
- Ultra-Low-Conduction Loss-Mosfet applied on anti-reverse function reduce energy loss largely
- Suitable for Various type of voltage, 12V/24V/36V/48V
- Three period charging mode protects life span of battery.
- Wide range of voltage input,friendly to nomal solar modules.
- Support multiple battery types,from lead-acid to Li-ion battery.
- Full electrical protection function
- User friendly display & control interface
- Parallelable design to meet different power need.
Model | PLJM-12A | PLJM-24A | PLJM-36A | PLJM-48A |
Charge | ||||
Charge Mode | MPPT | |||
Charge Method | Constant Current/Current Voltage/Float Charging | |||
| ||||
Input & Output | ||||
Input Voltage Range | 23V~130Vdc | |||
Input Current Range | 0~30A | |||
Output Voltage Range | 8~60Vdc | |||
Battery Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc |
Battery Type | Lead-Acid, Lithium, etc | |||
| ||||
General Data | ||||
Start Time | ≤5S (soft start) | |||
Dynamic Recover Time | 500us | |||
Efficiency | 96%~99% | |||
PV Utilization | ≥99% | |||
Isolation | Transformer-less | |||
Operation Temp. | -20~+40℃ | |||
Humidity | 0~85% NC | |||
Cooling | Air forced cooling, fans peed auto-adjust with internal temperature | |||
Operation Altitude | ≤4000Meters | |||
Input Terminal | TC type terminal | |||
Display | LCD | |||
Language | English | |||
Communication | GPRS/RS232/RS485 | |||
Protection Level | IP20 | |||
Noise | <30dB | |||
Dimension | 250mm*250mm*110mm (W*H*D) | |||
Weight | 3.2kg |
|
|
|
Carton box lined with foam
For bulk order wood palate avaible
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
