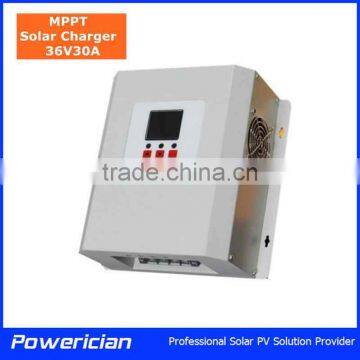

Powerician MPPT Solar Charger 36V 30A for Off Grid Solar System Charge Controller
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
Off Grid Solar Charger 12V 30A High Efficiency MPPT Charge Controller
-
Powerician MPPT Solar Charger 12V 30A Charge Controller
-
Powerician MPPT Solar Charger 24V 30A for Off Grid Solar System Charge Controller
-
Powerician MPPT Solar Charger 36V 30A Charge Controller Off Grid Solar Charger
-
Poly 255Wp 260Wp 265Wp Solar Panel High Efficiency TUV Certificated 10 Years Warranty High Quality Solar Module
-
Powerician 255Wp Poly Solar Panel 0~+3% Power Tolerance
Product Details
| Brand Name | Powerician | Model Number | PLJM-36A | |
| Accessories | Other, NO | Flexibility | Portable |
Product Description
Powerician MPPT Solar Charger 36V 30A for Off Grid Solar System Charge Controller
Solar Charger also called as solar charge controller is an divice which charges batterys with energy collected by solar array.
MPPT solar chargers apply advanced MPPT (Maximum Power Point Tracking) technique, thanks to which energy transfer efficiency is raisen largely comparing with PMW chargers.
Appling rich experience and state-of-art Electrical Engineering & Electronics technique of Chinese Academy of Sciences, our charger controller is a REAL MPPT charger, the efficiency is 30% higher than normal PMW ones, and much cheaper than similar products on current market.
Excellent performance, high stablity,better price and OEM service composed our core competitiveness on this product line.
Hope we have the opportunity to provide our product and service to you.
Powerician MPPT Solar Charger 36V 30A for Off Grid Solar System Charge Controller
Powerician MPPT Solar Charger 24V 30A for Off Grid Solar System Charge Controller
Product Feathers:
- High efficiency 99.5% conversion efficiency, 30% more than PWM charging efficiency.
- Intelligent over temperature protection system, reduce energy loss and improve efficiency.
- Ultra-Low-Conduction Loss-Mosfet applied on anti-reverse function reduce energy loss largely
- Suitable for Various type of voltage, 12V/24V/36V/48V
- Three period charging mode protects life span of battery.
- Wide range of voltage input,friendly to nomal solar modules.
- Support multiple battery types,from lead-acid to Li-ion battery.
- Full electrical protection function
- User friendly display & control interface
- Parallelable design to meet different power need.
Model | PLJM-12A | PLJM-24A | PLJM-36A | PLJM-48A |
Charge | ||||
Charge Mode | MPPT | |||
Charge Method | Constant Current/Current Voltage/Float Charging | |||
| ||||
Input & Output | ||||
Input Voltage Range | 23V~130Vdc | |||
Input Current Range | 0~30A | |||
Output Voltage Range | 8~60Vdc | |||
Battery Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc |
Battery Type | Lead-Acid, Lithium, etc | |||
| ||||
General Data | ||||
Start Time | ≤5S (soft start) | |||
Dynamic Recover Time | 500us | |||
Efficiency | 96%~99% | |||
PV Utilization | ≥99% | |||
Isolation | Transformer-less | |||
Operation Temp. | -20~+40℃ | |||
Humidity | 0~85% NC | |||
Cooling | Air forced cooling, fans peed auto-adjust with internal temperature | |||
Operation Altitude | ≤4000Meters | |||
Input Terminal | TC type terminal | |||
Display | LCD | |||
Language | English | |||
Communication | GPRS/RS232/RS485 | |||
Protection Level | IP20 | |||
Noise | <30dB | |||
Dimension | 250mm*250mm*110mm (W*H*D) | |||
Weight | 3.2kg |
|
|
|
Powerician MPPT Solar Charger 36V 30A for Off Grid Solar System Charge Controller
Carton box lined with foam
For bulk order wood palate avaible
