Home > Products > Solar Charger > Powerician MPPT Solar Charger 24V 40A Charge Controller Off Grid Solar Charger

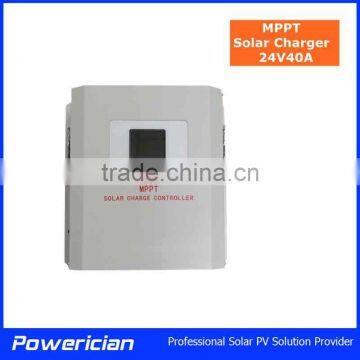

Powerician MPPT Solar Charger 24V 40A Charge Controller Off Grid Solar Charger
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
-
Powerician MPPT Solar Charger 12V 40A Charge Controller Off Grid Solar Charger
-
MPPT Solar Charge Controller 48V 30A Powerician High Quality Product
-
Powerician MPPT Solar Charger 36V 30A for Off Grid Solar System Charge Controller
-
Off Grid Solar Charger 12V 30A High Efficiency MPPT Charge Controller
-
Powerician MPPT Solar Charger 12V 30A Charge Controller
-
Powerician MPPT Solar Charger 24V 30A for Off Grid Solar System Charge Controller
Product Details
| Brand Name | Powerician | Model Number | PLJM-24B | |
| Accessories | Other, NO | Flexibility | Portable |
Product Description
Powerician MPPT Solar Charger 24V 40A Charge Controller Off Grid Solar Charger
Solar Charger also called as solar charge controller is an divice which charges batterys with energy collected by solar array.
MPPT solar chargers apply advanced MPPT (Maximum Power Point Tracking) technique, thanks to which energy transfer efficiency is raisen largely comparing with PMW chargers.
Appling rich experience and state-of-art Electrical Engineering & Electronics technique of Chinese Academy of Sciences, our charger controller is a REAL MPPT charger, the efficiency is 30% higher than normal PMW ones, and much cheaper than similar products on current market.
Excellent performance, high stablity,better price and OEM service composed our core competitiveness on this product line.
Hope we have the opportunity to provide our product and service to you.
Powerician MPPT Solar Charger 12V 40A Charge Controller Off Grid Solar Charger
Product Feathers:
- High efficiency 99.5% conversion efficiency, 30% more than PWM charging efficiency.
- Intelligent over temperature protection system, reduce energy loss and improve efficiency.
- Ultra-Low-Conduction Loss-Mosfet applied on anti-reverse function reduce energy loss largely
- Suitable for Various type of voltage, 12V/24V/36V/48V
- Three period charging mode protects life span of battery.
- Wide range of voltage input,friendly to nomal solar modules.
- Support multiple battery types,from lead-acid to Li-ion battery.
- Full electrical protection function
- User friendly display & control interface
- Parallelable design to meet different power need.
Model | PLJM-12B | PLJM-24B | PLJM-36B | PLJM-48B |
Charge | ||||
Charge Mode | MPPT | |||
Charge Method | Constant Current/Current Voltage/Float Charging | |||
| ||||
Input & Output | ||||
Input Voltage Range | 23V~130Vdc | |||
Input Current Range | 0~40A | |||
Output Voltage Range | 8~60Vdc | |||
Battery Voltage | 12Vdc | 24Vdc | 36Vdc | 48Vdc |
Battery Type | Lead-Acid, Lithium, etc | |||
Powerician MPPT Solar Charger 12V 40A Charge Controller Off Grid Solar Charger | ||||
General Data | ||||
Start Time | ≤5S (soft start) | |||
Dynamic Recover Time | 500us | |||
Efficiency | 96%~99% | |||
PV Utilization | ≥99% | |||
Isolation | Transformer-less | |||
Operation Temp. | -20~+40℃ | |||
Humidity | 0~85% NC | |||
Cooling | Air forced cooling, fans peed auto-adjust with internal temperature | |||
Operation Altitude | ≤4000Meters | |||
Input Terminal | TC type terminal | |||
Display | LCD | |||
Language | English | |||
Communication | GPRS/RS232/RS485 | |||
Protection Level | IP20 | |||
Noise | <30dB | |||
Dimension | 250mm*250mm*110mm (W*H*D) | |||
Weight | 3.2kg | |||
Carton box lined with foam
For bulk order wood palate avaible
Powerician MPPT Solar Charger 12V 40A Charge Controller Off Grid Solar Charger
ALL DATA FOR REFERENCE ONLY.
THE CONTENT HERE IS NOT NECESSARILY TAKEN AS CONTRACT CLAUSE.
POWERICIAN RESERVERS THE RIGHT TO MODIFY ANY DATA WITHOUT PRIOR NOTICE.
POWERICIAN ALL RIGHTS RESERVED DO NOT COPY WITHOUT PERMISSION.
