Small Size Fish Meal Processing Machine With Capacity 300kgs per Hour (skype:anna002128)
- SHANGHAI
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Small Size Fish Meal Processing Line With Capacity 300kgs per Hour (skype:anna002128)
-
Small Size Fish Powder Plant With Capacity 300kgs per Hour (skype:anna002128)
-
Small Size Fish Powder Production Machine With Capacity 300kgs per Hour (skype:anna002128)
-
Small Size Fish Powder Production Line With Capacity 300kgs per Hour (skype:anna002128)
-
Small Size Fish Powder Processing Machine With Capacity 300kgs per Hour (skype:anna002128)
-
Small Size Fish Powder Processing Line With Capacity 300kgs per Hour (skype:anna002128)
Product Details
| Brand Name | SSS | |||
| Model Number | SSS-YF-300 | Type | Other, Fish Meal Machine | |
| Voltage | 380 V , 3 P | Power(W) | 50000W | |
| Weight | 4200 kg | Certification | CE, ISO | |
| Warranty | 1 YEAR FROM DATE OF INSTALLATION | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
fish meal processing machine1.Suitable for small capacity requested;
2.made of fine stainless steel;
3. can be customized
Fish Meal Processing machine
1. Description:
This small capacity fish meal machinery is specially design and manufacture for our customers who want to process leftovers like fish head, fish sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.
2. Raw material and capacity
Raw material: raw fish or fish fillet and scraps( fish head, fish bones, fish offals), etc
3. Final products
Note: usually the capacity of fish meal is based on fish type and fish quality

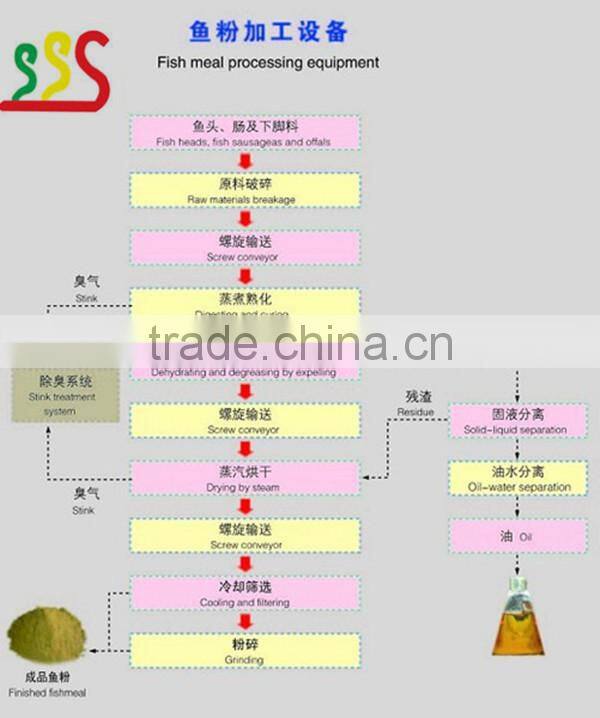

4. Procedure
Raw material -> cooking and pressing -> drying -> skimmed fish meal
Heating method: electrical heating of thermal oil 200°C
5. Specification of equipment:
| item | description | dimension | details |
| 1 | Screw conveyor | φ170×4000 | equipped with reducer 1 set, made of SUS304 |
| 2 | electrical cooker | φ377×3500 | ·material of outer heat preservation made of SUS430,thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization). |
| 3 | screw press | φ219×1000 | ·outer cover made of SUS430,thickness 0.7mm; ·seive mesh applied SUS304; ·driving power: 1.5kw. |
| 4 | dryer | φ820×3500 | ·inner and outer cylinder made of Q235B; ·preservation made of SUS430, thickness 0.7mm; ·driving power: 4kw, V=30r/min; |
| 5 | thermal oil pump | driving power:1.5kw | |
| 6 | electric control box | electric control box 1 set |
Other supporting equipment, fittings and appliances
6. More Pictures and Certificate:
