Automatic fish meal production line

FOB Price

USD $15,000 - $35,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Other, fish processing machinery
Automatic Grade	Automatic	Production Capacity	5tons/day
Brand Name	SSS	Model Number	SSS-YF-300
Voltage	380V	Power(W)	50000W
Weight	4200KG	Warranty	1 YEAR FROM DATE OF INSTALLATION
After-sales Service Provided	Engineers available to service machinery overseas

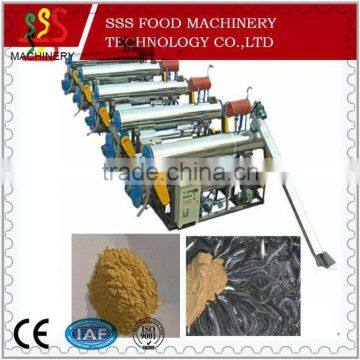

Fish Meal Production Machine

raw material: fresh fish, fish head, fish bones, fish offals, etc

capacity of raw fish: 300kg/hour

capacity of fish meal: 70-80kg/hour

final product: skimmed fish meal

moisture of final product: less than 12%

Note: usually the capacity of fish meal is based on fish type and fish quality

SPECIFICATION OF EACH EQUIPMENT

item	description	dimension	details
1	Screw conveyor	φ170×4000	equipped with reducer 1 set, made of SUS304
2	electrical cooker	φ377×3500	·material of outer heat preservation made of SUS430, thickness: 0.7mm; ·inner and outer cylinder made of Q235B; ·driving power: 1.5kw (speed adjusted by magnetization).
3	screw press	φ219×1000	·outer cover made of SUS430, thickness 0.7mm; · seive mesh applied SUS304; ·driving power: 1.5kw.
4	dryer	φ820×3500	·inner and outer cylinder made of Q235B; ·preservation made of SUS430, thickness 0.7mm; ·driving power: 4kw, V=30r/min;
5	thermal oil pump		driving power:1.5kw
6	electric control box		electric control box 1 set
