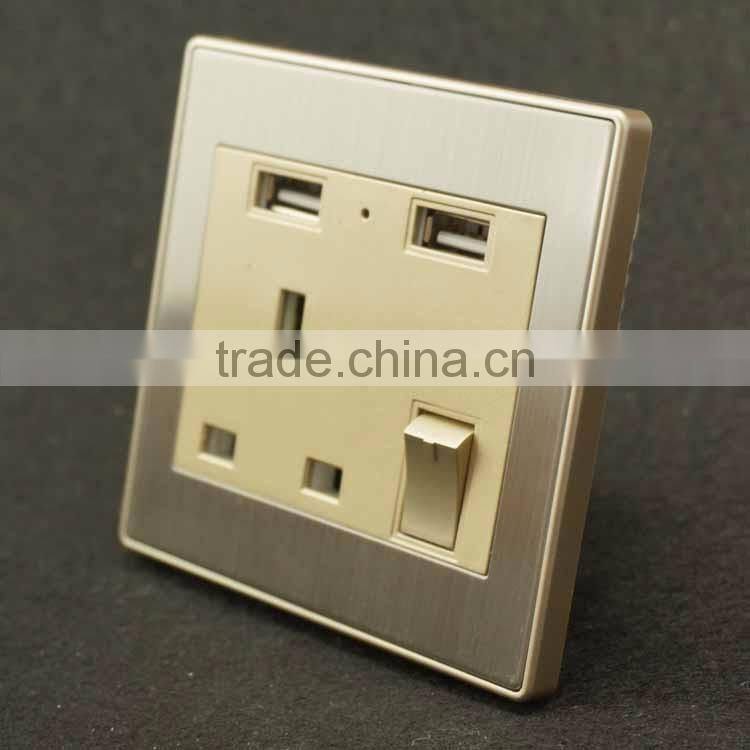

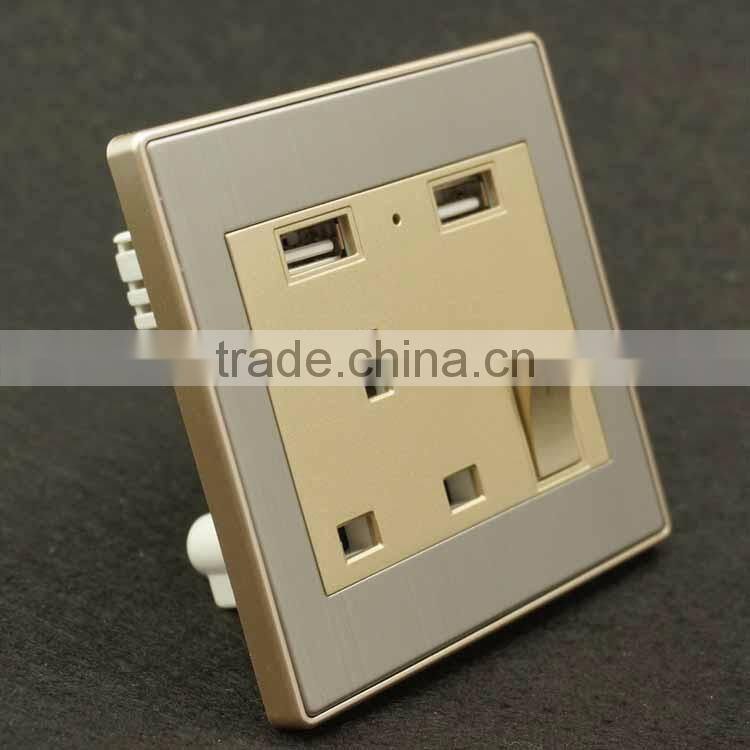

Wholesale Plug Extension Socket Usb Wall Outlet Socket With Surge Protector

Specifacation:

INSTALLATION  INSTRUCTIONS

  Introduction

1. This product is a 13A wall receptacle with USB charging function . Charge most of

  your portable devices directly from the USB wall socket without using the wall

  receptacle . No adapter required . USB socket is suitable for charging most

  5V/1.0A, 5V/2.1A, 5V/2.4A, 5V/4.8A devices , iPod or iPhone .

2. Specifications:

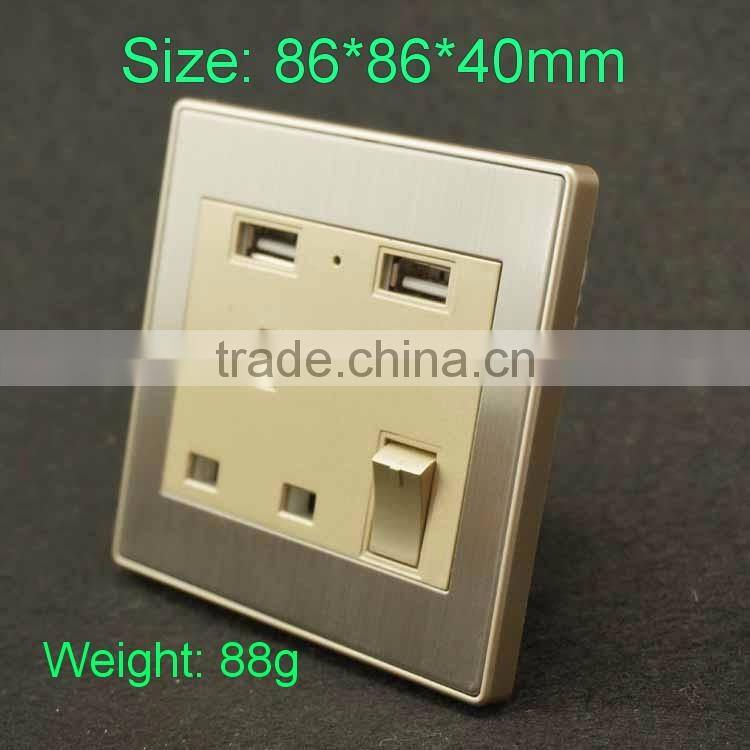

  Dimension : 86*86*40mm

  Color :  White

  Working Voltage : 13A ,250 V

  Working Temperature : -15℃ to 40℃

  USB Output : DC 5V, 1.0A/2.1A/2.4A/4.8A  Testing Standard : EN 55022:2010, EN 55024:2010, EN 61000-3-2:2006+A1:2009+A2:2009, EN 61000-3-3:2008 , EN 60084-1:2002, EN609501:2006+A11:2009+A1:2010+A12:2011+A2:2013

 CAUTION

1. Use copper or copper clad wire only . Do not use it with aluminum wire .

2. To prevent severe shock or electrocution always turn the power OFF at the service

  panel before working with wiring .

3. Do not install in wet locations or in a location where the receptacle can get splashed with liquid .

4. Indoor use only .

5. Designed for Residential / General-Purpose, All Smart Devices builds in USB Power supply.

6. This product is designed with a total charging capacity of (1.0, 2.1,2.4, 4.8) amps .

7. Drawing a combined current of greater than (1.0, 2.1,2.4, 4.8) from the two USB charging

  ports will result in overheating and damage to the device .

  Wiring

 Caution : To prevent severe shock or electrocution always turn the power OFF at the service panel before working with wiring .

 Stripping the insulation from the wire :

  Stripping the insulation from the wire about 0.4 inch .

 Connecting the Black and White Wires:

  1. Turn the power “OFF”.

  2.Loosen both side screws using a flat screw-driver .

  3.Insert neutral and live wire into the opening marked with N and L.

  4.Tighten both side screws using the flat screw-drive.

 Connecting the Green Wire :

   Loop the wire clockwise 2/3 of the way around the screw .

  USB WALL SOCKET

  Installation

Recommended installation instructions:
