DEFU High Flow Electric Centrifugal Water Pump
- Shanghai or Ningbo
- Money Gram Credit Card
You May Like
-
Self Priming Centrifugal Fire Sprinkler Pump
-
Motor Oil Transfer Pump Electric Motor End-suction Centrifugal Water Pump
-
10kw Electric Water Centrifugal Pump With Leader Spray
-
High Capacity Water Cooled Diesel Engine Flood Pump In Thailand Project
-
Price of Diesel Fire Pump
-
100 hp Diesel Engine Water Pump Set
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DEFU | |
| Model Number | JU | Theory | Other, self priming centrifugal pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Sewage |
Product Description
Specifications
1.Flow capacity:5-1270m3/h2.Head:12-80m
3.Power:2.2-55kw
4.Rotatory speed:1450/2900rpm

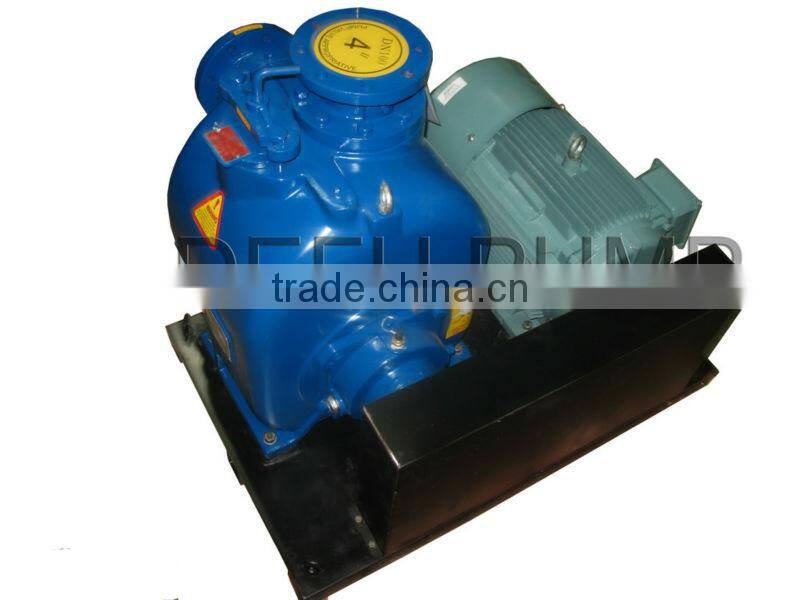

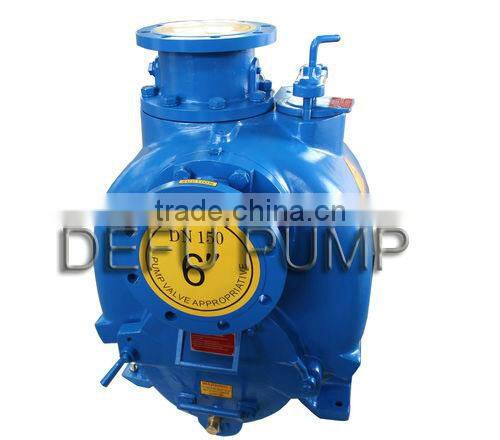

DEFU high flow electric centrifugal water pump
DEFU high flow electric centrifugal water pump is a newly developed product on the basis of advanced technology imported from overseas , it adopts oversea excellent hydraulic model.
Advantages :
1 simple structure,
2 good self priming performance,
3 high sewage capability,
4 high efficiency ,
5 energy saving,
6 convenient usage.
Performance:

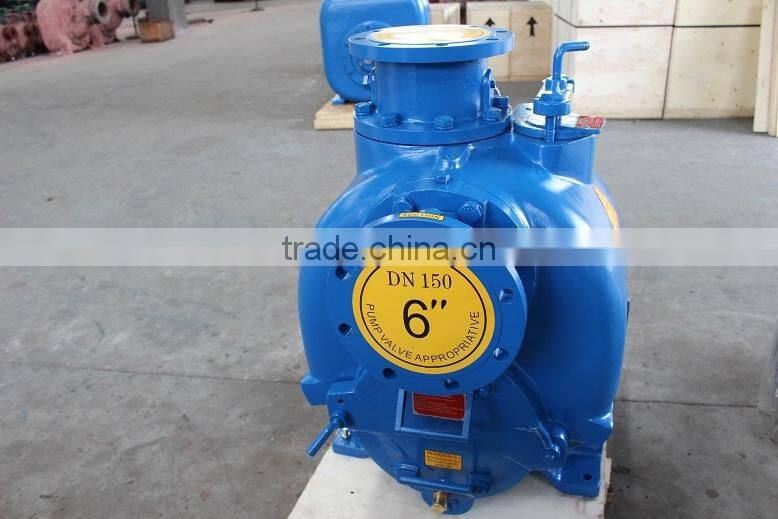

| 1.Inlet/Outlet | 3''(75mm), 4''(100mm), 6''(150mm) | |
| 2.Impeller Diameter | 158.75mm-457.2mm | 6.25''-18'' |
| 3.Rotary Speed | 650RPM-2900 RPM | |
| 4.Flow Rates | 8m3/h-1270m3/h | 35GPM-5500GPM |
| 5.Head | 6m-63m | |
| 6.Power | 1HP-125HP | |
| 7.Net weight | 92KG-998KG | |
| 8.Solid Passing | 20.63mm-76.2mm | 0.8''-3'' |
| 9.Pump body Material | Cast Iron, ADI, CD4MCU,314SS, 316 SS, Alloy 20, C276 | |

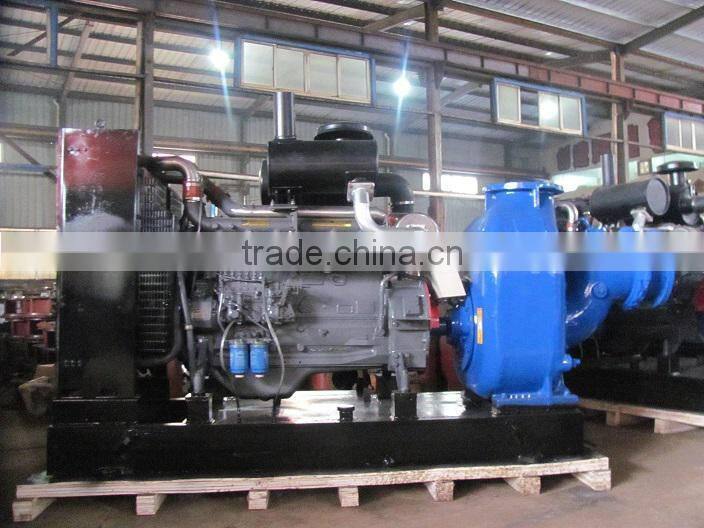

| 10.Engine | Cummins, Perkins, Deutz, Chinese Diesel engine, Electric Motor or as customer request | |
| 11.Engine type | Water cooled / Air cooled | |

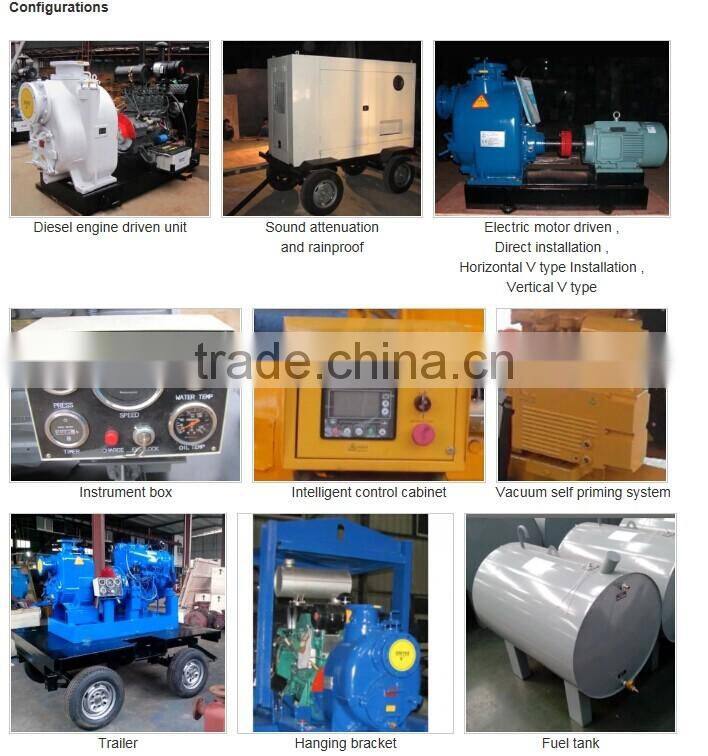

| 12.Method of Connection | Motor mounted, Engine mounted, V-belt driven | |

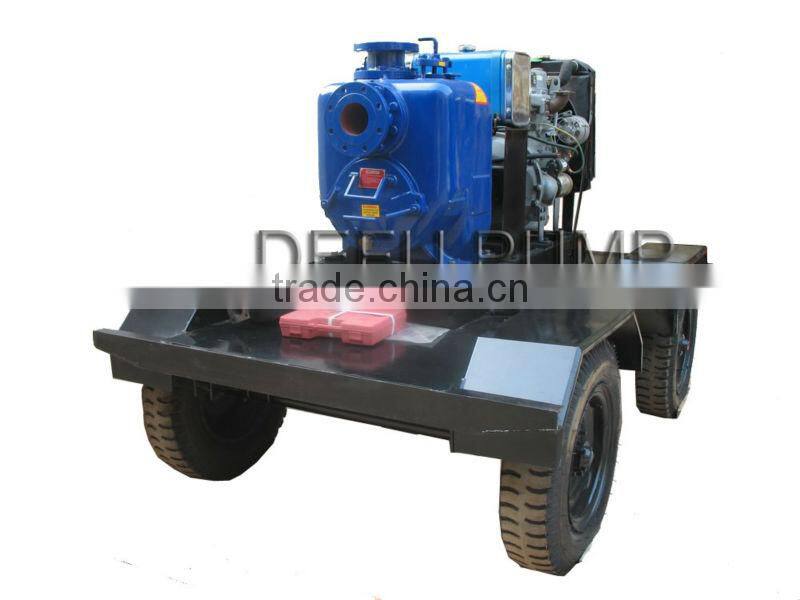

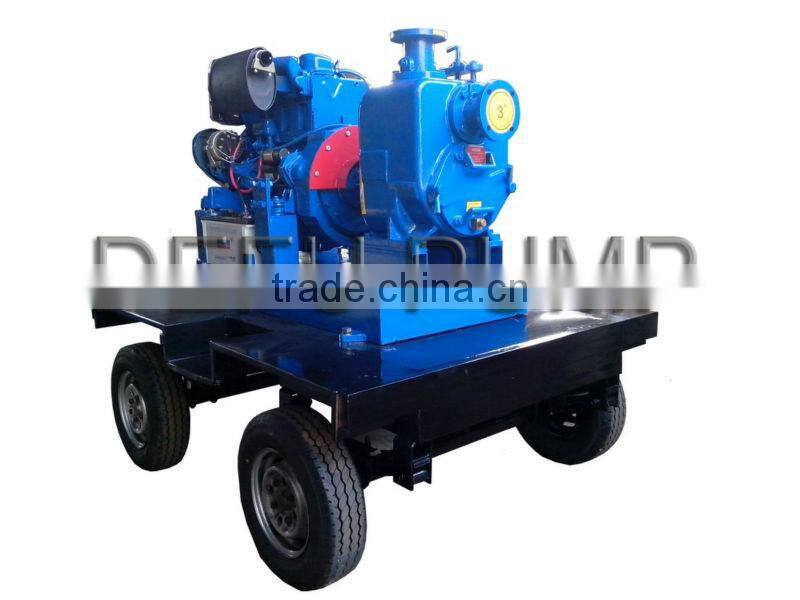

| 13.Skid Mounted on Trailer | 2 or 4 wheels Trailer | |
| 14.Package | standard export plywood case | |
Application:
This kind of pump combines self priming and non-clogging,adopting axial circumfluence outer-mix type. And through the particular design of case and impeller channel, it not only needn't to be fixed with base valve and poured in water like normal self priming, but also can suck and discharge liquid containing big grain and long fibrin substance. So it is widely used in municipal sewage project, river and pond breeding, light industry, papermaking, weaving, foodstuff, chemical industry, power industry, fibrin, slurry and mixed suspension etc chemical medium.
