4 Inch High Capacity Sewage Pump With Tank (JT)

Self Priming Agriculture Water Pump Hot!

(JT&JU Series) -Please Click Here To Find All Models

Model: JT-4

(Model meaning: E.G. JT-4 means 4inch for inlet and 4inch for outlet diameters)

Flow Rate:15-163m3/h

Head:2-36m

Speed: 650rpm-1950rpm

Max.Suction Lift: 7.6m

Max.Passing Solid: 76.2mm

Range of Power: 1-30hp

Weight (Bare Pump): 260-280kgs

Warranty Time: The whole pump is guaranteed within 1year, the pump's spare spare parts is 3 months

Delivery Time: Bare Pump(5-7days) Pump with Motor(10-25days)

PS:According to your quantity, the delivery time will be different

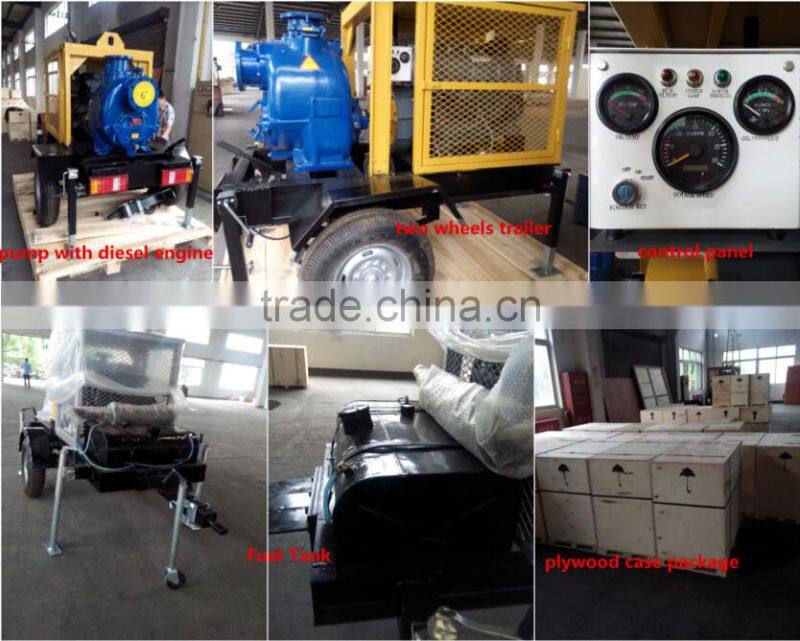

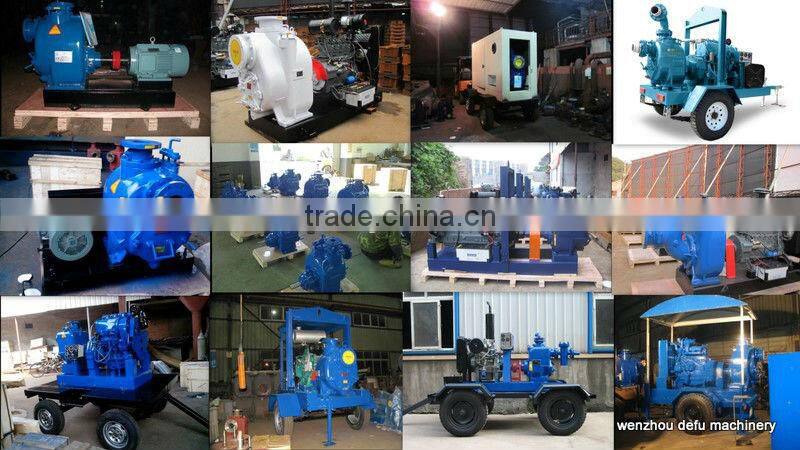

We can supply bare pump, pump with electric motor, pump with diesel engine, pump complete set mounted on trailer, diesel engine, pump spare parts and other accessories, u can find these pictures as below Order Casing parts.

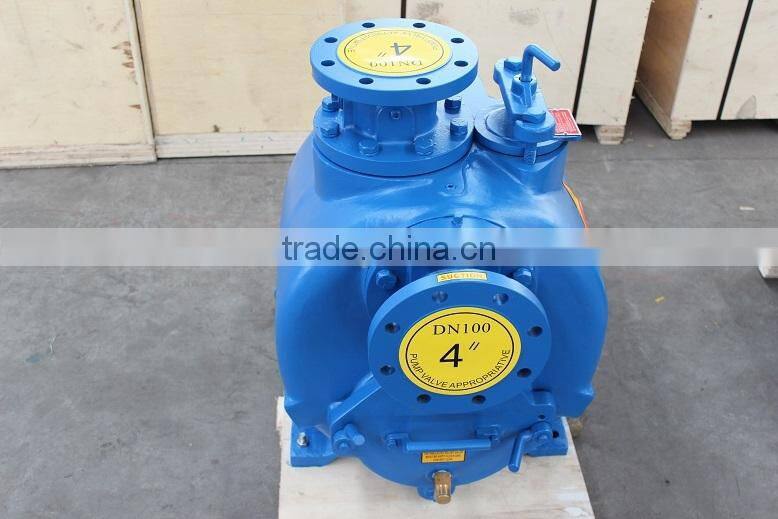

Product Images(4inch bare pump)

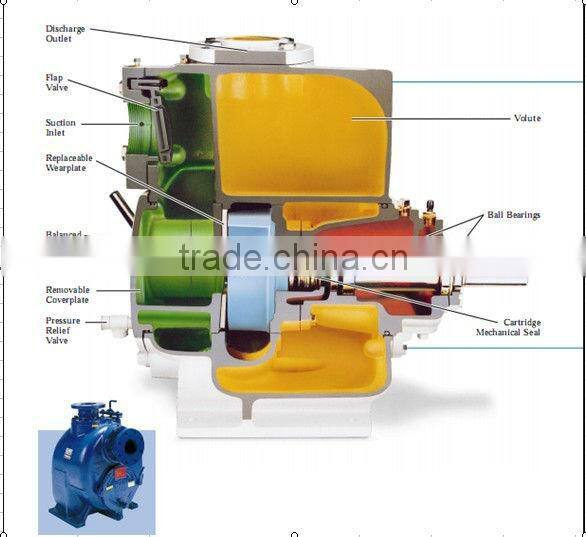

Structure

Feature :

1. Hing and dry mounting for fast and easy service and maintenance

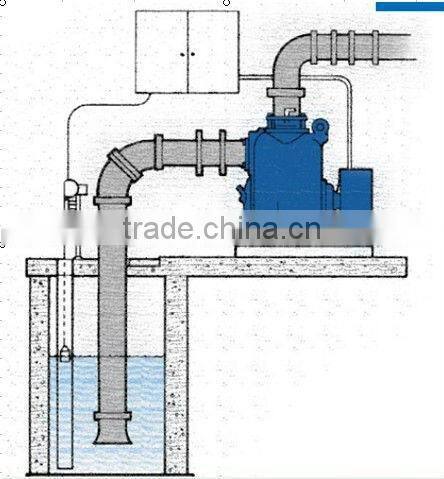

Because WenZhou DEFU centrifugal pumps are self -priming , they can be mounted high and dry at floor level , with only the suction line down in the liquid . Service or maintenance can be performed quickly and simply with common hand tools and without having to pull the pump . There are no long drive shafts to install and align , no hoists or cranes required , and no need for service personnel to enter the pump

2. Clogging is kept to a minimum , so downtime is virtually eliminated .

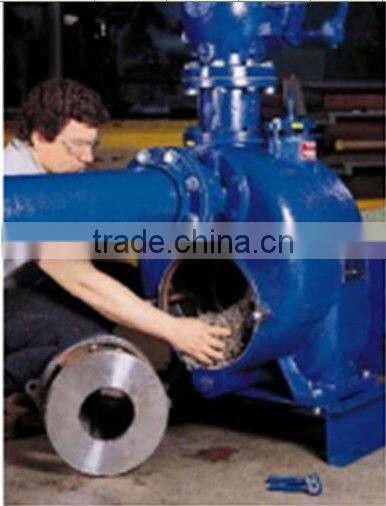

DEFU solids handing , Self priming pumps help keep productivity high because they are designed for virtually clog-free performance . Solids handing pump models will handle spherical solids up to 3 inch (76mm) in diameter and allow solids to pass though the entire pump , not just the impeller . If a clog does occur , it can be eliminated quickly and essily by opening the coverplate , removing the clog . and returning the pump to normal operation , all in just a few minutes' time .

3. Service is simple ,fast and economical

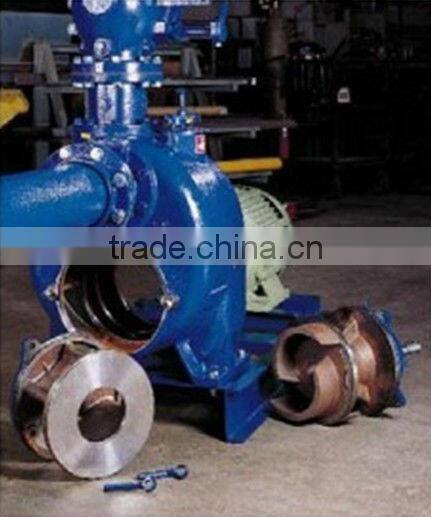

WENZHOU DEFU solids handing pump models are designed to make servicing a fast ,simple and cost-efficient process. The removable coverplate allows for convenient inspection or serivece of the impeller , sea and wearplate , with no special tools required . If the pump shaft or bearings need service , the entire rotating assembly can be removed without disturbing the pump casing or piping . Plus , the rotating assembly is sealed with an O- ring which permits external clearance adjustments .

4. Automatic priming means dependable peformance

WenZhou DEFU Self-priming pumps are a sensible solution for industry and municipalities because they require very little attention , resulting in significant savings or maintenance time and money . Properly applied and installed , and after an initial priming . It will continue to reprime automatically , In fact , JT series pumps will reprime with only a patially filled pump casing and a completely dry suction line .

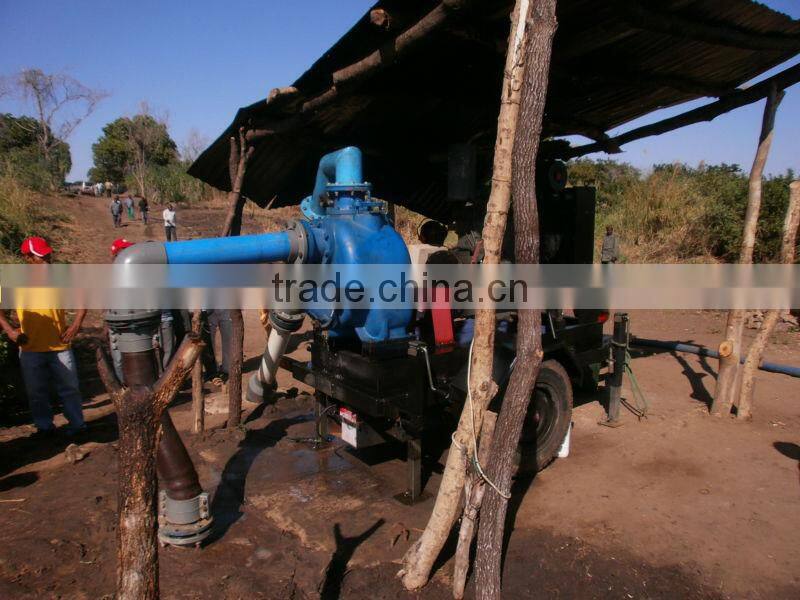

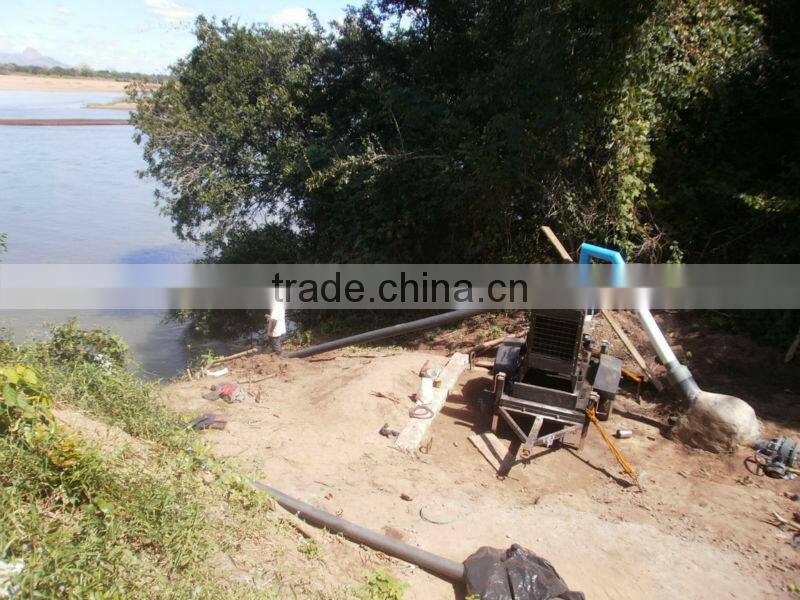

Application Casing

Order Casing

Welcome To Our Factory

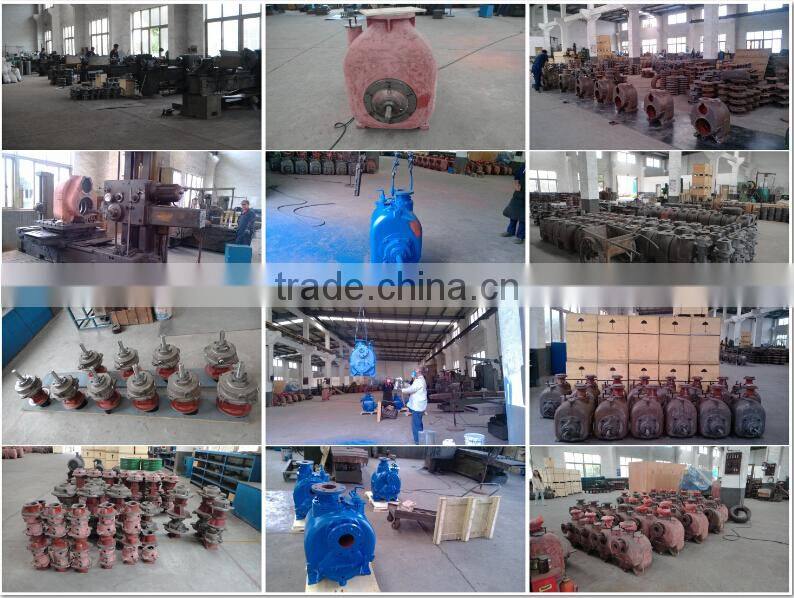

Line of Production For Pumps
