Home > Products > Self Priming Pump (JT/JU Series) > JT-10 Self Priming Centrifugal Mud Pump

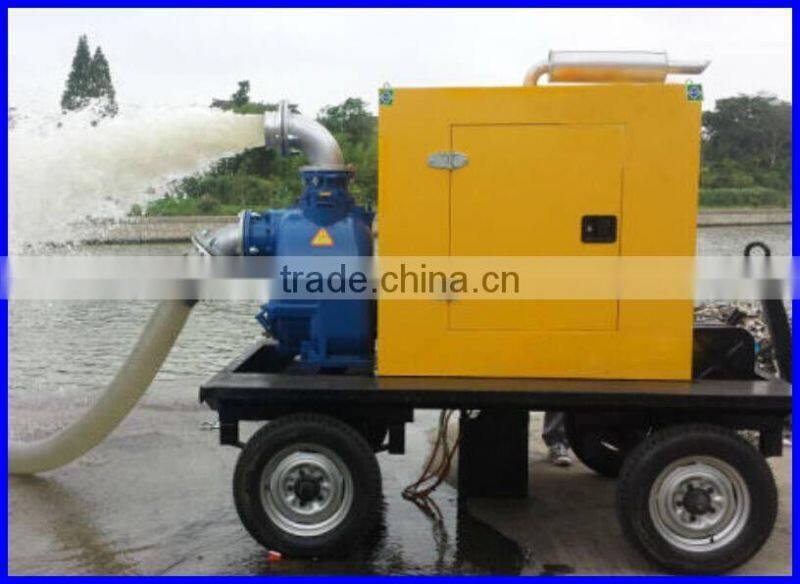

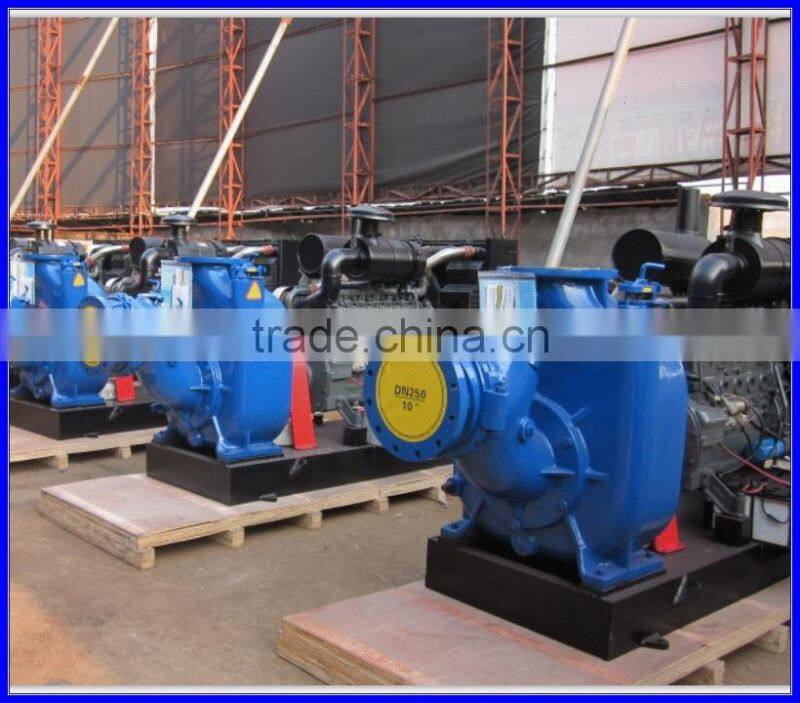

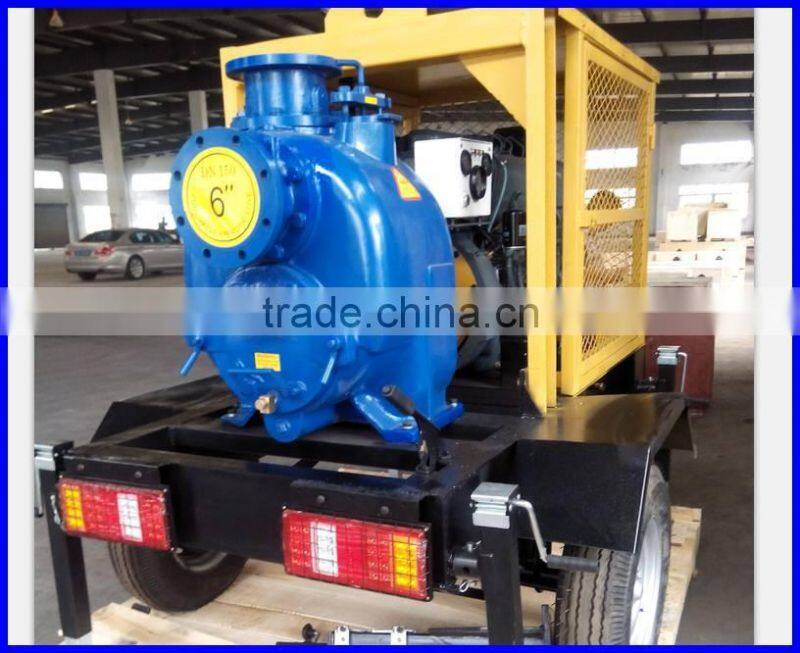

JT-10 Self Priming Centrifugal Mud Pump
- Shanghai or Ningbo
- T/T Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DEFU | |
| Model Number | JT-10 | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Hydraulic | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Sewage |
Product Description
JT Series Self Priming Mud Pump
JT & JU series self priming trash pump is our latest generation product base on US technology and craftwork. It is designed for economical & trouble-free operation in handling solid-laden liquids and slurries.
Structure

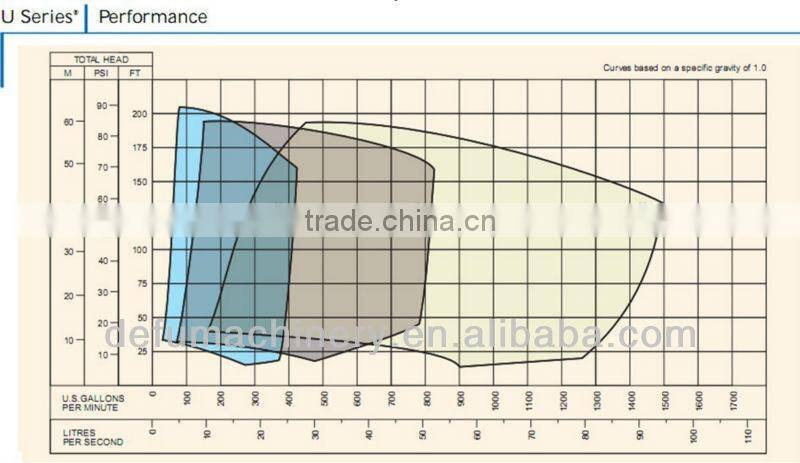

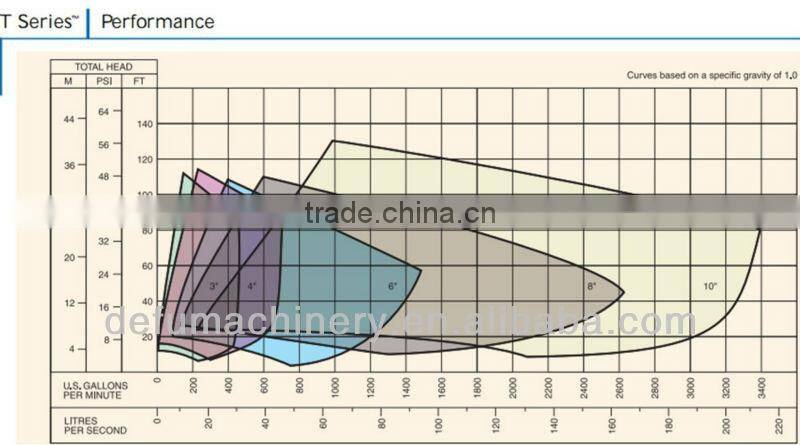

Parameters Table
Click each model to get more information!
| MODEL | Size | R.P.M. R/MIN | MAX FLOW (m3/H ) | Max Head (m) | Suction Lift ( m ) | Power ( HP) | MAX SOLIDS mm | NET WEIGHT kg | GROSS WEIGHT kg |
| JT-2 | 2 inch | 1150-2900 | 46 | 36 | 7.6 | 1 – 10 HP | 44.45 | 92 | 114 |
| JT-3 | 3 inch | 650-2150 | 107 | 35 | 7.6 | 1 – 20 HP | 63.5 | 183 | 205 |
| JT-4 | 4 inch | 650-1950 | 163 | 36 | 7.6 | 1 – 30 HP | 76.2 | 259.5 | 280 |
| JT-6 | 6 inch | 650-1550 | 330 | 33 | 7.6 | 2 – 40 HP | 76.2 | 364 | 391 |
| JT-8 | 8 inch | 650-1350 | 600 | 34 | 7 | 7.5 – 75 HP | 76.2 | 581 | 634 |
| JT-10 | 10 inch | 650-1450 | 775 | 40 | 6.7 | 10 – 100 HP | 76.2 | 635 | 663 |
| JT-12 | 12 inch | 650-1250 | 1275 | 42 | 4.9 | 20 – 125 HP | 50 | 998 | 1066 |
| JU-3 | 3inch | 850-2150 | 85 | 62 | 7.6 | 1.5 – 25 HP | 20.63 | 214 | 225 |
| JU-4 | 4 inch | 850-2150 | 148 | 60 | 5.2 | 3 – 40 HP | 28.57 | 272 | 297 |
| JU-6 | 6 inch | 850-1950 | 308 | 58 | 4.5 | 5 – 75 HP | 31.75 | 413 | 437 |

1, Hing and dry mounting for fast and easy service and maintenance
Because WenZhou DEFU centrifugal pumps are self -priming , they can be mounted high and dry at floor level , with only the suction line down in the liquid . Service or maintenance can be performed quickly and simply with common hand tools and without having to pull the pump . There are no long drive shafts to install and align , no hoists or cranes required , and no need for service personnel to enter the pump

2, Clogging is kept to a minimum , so downtime is virtually eliminated .
DEFU solids handing , Self priming pumps help keep productivity high because they are designed for virtually clog-free performance . Solids handing pump models will handle spherical solids up to 3 inch (76mm) in diameter and allow solids to pass though the entire pump , not just the impeller . If a clog does occur , it can be eliminated quickly and essily by opening the coverplate , removing the clog . and returning the pump to normal operation , all in just a few minutes' time .
3, Service is simple ,fast and economical
WENZHOU DEFU solids handing pump models are designed to make servicing a fast ,simple and cost-efficient process. The removable coverplate allows for convenient inspection or serivece of the impeller , sea and wearplate , with no special tools required . If the pump shaft or bearings need service , the entire rotating assembly can be removed without disturbing the pump casing or piping . Plus , the rotating assembly is sealed with an O- ring which permits external clearance adjustments .
4, Automatic priming means dependable peformance
WenZhou DEFU Self-priming pumps are a sensible solution for industry and municipalities because they require very little attention , resulting in significant savings or maintenance time and money . Properly applied and installed , and after an initial priming . It will continue to reprime automatically , In fact , JT series pumps will reprime with only a patially filled pump casing and a completely dry suction line .
APPLICATION CASING
ORDER CASING
