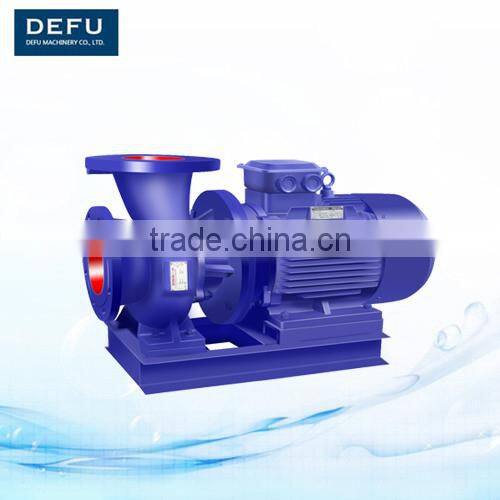

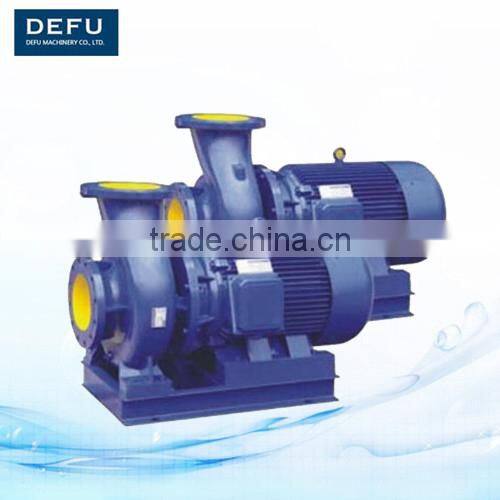

ISW-type Horizontal Single Stage Centrifugal Water Pump

ISW-type horizontal single stage centrifugal water pump

Product Overview

• ISW series horizontal single stage centrifugal pump is the use of domestic excellent hydraulic model optimization design, it is ideal for a new generation of energy-efficient horizontal pumps.

Operation Condition

• 1. Shaft seal material : titanium or carbide alloy wearable material, anti-high temperature mechanical seal
• 2. Max working pressure  ≤ 1.6MPa
• 3. Proper medium : water
• 4. Temperature  ≤ 40°C
• 5. Relative humidity  ≤ 95%
• 6. Flow rate Q : max 1500m3/h
• 7. Head H : max 150m

Main Characteristics

• 1. Compact structure, with motor, beautiful outline, take small place, about 30% reduce compare to common horizontal type. It can working in outdoor with IP54 outdoor motor.
• 2. Stablely operated, low noise, direct coupling, the impeller has balance performance with non-vibration, low noise.
• 3. Seal adopt good mechanism seal, dynamic and static loop are made of hard alloy, anti-grind, non-leakage, long used.
• 4. Adopt advanced hydraulic module with high effiency and good performance.
• 5. Particular structure, the pump bottom has a water discharge hole, and take pressure hole both in inlet and outlet flange, which is comfirm good performance and maintance.
• 6. Level inlet, vertical outlet, that convenience to install the pipe.

Application

• ISW horizontal centrifugal pump for conveying water and the main physical and chemical properties similar to water or other liquids. Suitable for industrial and urban water supply and drainage, high-rise building pressurized water, marine, garden irrigation, fire booster, long-distance transmission, HVAC refrigeration cycle, bathroom, heating and cooling water circulation and ancillary equipment. Use medium temperature does not exceed 85 °C.

Performance Parameters Table
