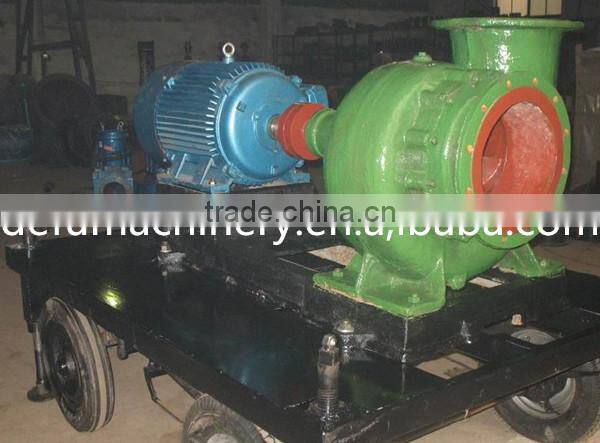

Best Price for Diesel Mixed-flow Water Pump Set
- Shanghai or Ningbo
- T/T Credit Card
You May Like
-
Diesel Engine Agriculture Irrigation Pumps
-
HW Series Mixed Flow High Flow Rate Water Pump for Irrigation, Dewatering
-
HW250-4S Lubricating Oil Mixed Flow Pump
-
HW250-8S Power Plant Mixed Flow Balanced Impeller Water Pump
-
HW250-8 Sewage Disposal Project Mixed Flow Semi-open Impeller Pump
-
HW200-5 Coal Slurry Mixed Flow Low Speed Pump
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DEFU | |
| Model Number | HW | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Water | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, water |
Product Description
Specifications
1.Simple structure2.Reliable quality
3.Easy installation
4.High efficiency
5.Small body

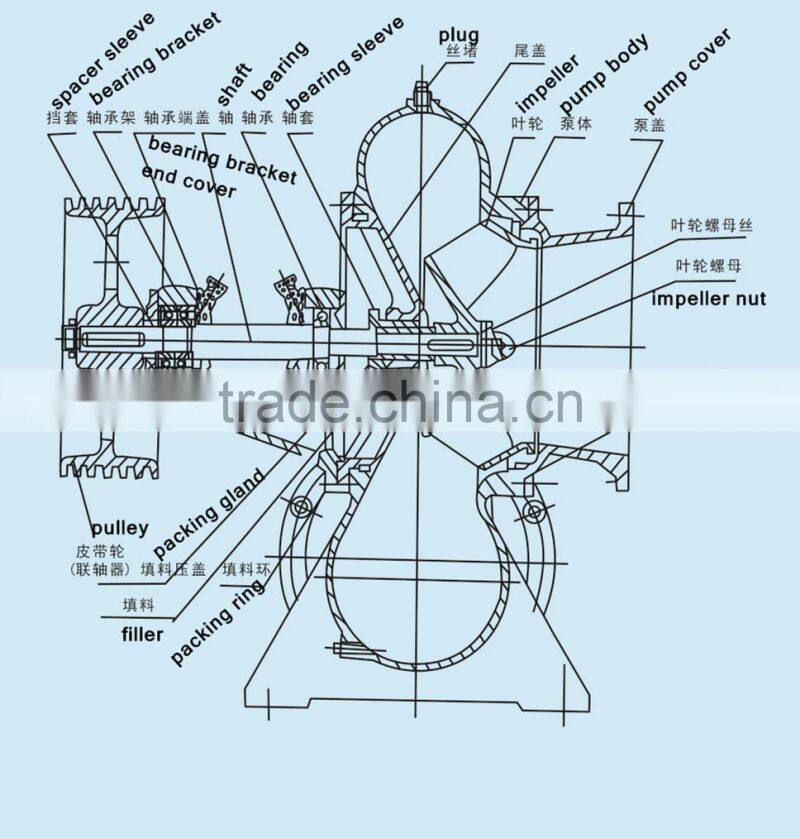

Diesel mixed-flow water pump is a horizontal, single stage, single suction volute type mixed flow pump
The pump has the features of simple structure, reliable in operation, easy installation, high efficiency, small dimension, light weight.
It is suitable for transporting chemical liquid whose temperature is under 50°C.
The pump's performance range:Flow:130~9000m³/h,Head:3.5~22m
HW series horizontal single-stage single-suction split case type mix flow pump, for those mixture in vosicosity of 4~6%, and it is in high efficiency and energy saving type, mainly used for sugar factory, paper making factory and can also be used for floods and rain water drainage.
Performance table of Mixed flow pump
| Modal | Capacity | Head | Rotation Speed | Efficiency | Shaft Power | Motor Power | NPSH |
| m3/h | m | m/min | % | Kw | kw | m | |
| 150HW-5 | 137 | 6.1 | 1450 | 75 | 3.03 | 4 | 2.7 |
| 180 | 5 | 82 | 2.99 | ||||
| 216 | 3.7 | 74 | 2.94 | ||||
| 150HW-6 | 140 | 6.6 | 1450 | 75 | 3.36 | 5.5 | 3 |
| 180 | 6 | 82 | 3.59 | ||||
| 200 | 5 | 78 | 3.52 | ||||
| 174 | 10.1 | 1800 | 75 | 6.46 | 7.5 | 4 | |
| 223 | 9.2 | 82 | 7.07 | ||||
| 248 | 7.7 | 78 | 6.72 | ||||
| 150HW-8 | 137 | 8.7 | 1450 | 82 | 4.78 | 5.5 | 2.7 |
| 180 | 8 | ||||||
| 216 | 6.8 | ||||||
| 150HW-12 | 137 | 15.3 | 2900 | 75 | 7.6 | 11 | 6 |
| 180 | 12.5 | 82 | 7.47 | ||||
| 216 | 9.7 | 74 | 7.71 | ||||
| 200HW-8 | 360 | 5 | 1450 | 81.5 | 6.01 | 7.5 | 4 |
| 270 | 9.6 | 1450 | 76 | 9.29 | 11 | 4 | |
| 360 | 8 | 83.5 | 9.39 | ||||
| 200HW-10 | 432 | 6 | 75 | 9.41 | |||
| 300 | 8 | 1200 | 77 | 8.45 | 11 | 4 | |
| 360 | 7 | 83.5 | 8.22 | ||||
| 450 | 5.1 | 70 | 8.12 | ||||
| 360 | 12 | 1450 | 77 | 15.27 | 18.5 | 5 | |
| 450 | 10 | 83.5 | 14.68 | ||||
| 540 | 7.5 | 77 | 14.32 | ||||
| 400 | 14.5 | 1600 | 77 | 20.49 | 30 | 5.5 | |
| 500 | 12.5 | 83.5 | 19.91 | ||||
| 600 | 9.5 | 77 | 20.2 | ||||
| 200HW-12 | 270 | 13.5 | 1450 | 83.5 | 14.68 | 18.5 | 4 |
| 360 | 12.5 | ||||||
| 432 | 10.8 | ||||||
| 250HW-5 | 540 | 5 | 1180 | 82 | 8.97 | 11 | 4 |
| 250HW-7 | 400 | 8 | 980 | 81 | 10.75 | 15 | 4 |
| 450 | 7 | 84 | 10.22 | ||||
| 500 | 6.3 | 79 | 11.87 | ||||
| 250HW-8 | 335 | 6.5 | 970 | 77 | 7.67 | 11 | 2.7 |
| 444 | 5.4 | 84 | 7.78 | ||||
| 533 | 4.1 | 76 | 7.74 | ||||
| 407 | 9.6 | 1180 | 77 | 13.81 | 18.5 | 4 | |
| 540 | 8 | 84 | 14.01 | ||||
| 648 | 6 | 76 | 1.93 | ||||
| 500 | 14.5 | 1450 | 77 | 25.6 | 30 | 6.4 | |
| 664 | 12.1 | 84 | 26 | ||||
| 796 | 9.1 | 76 | 25.9 |

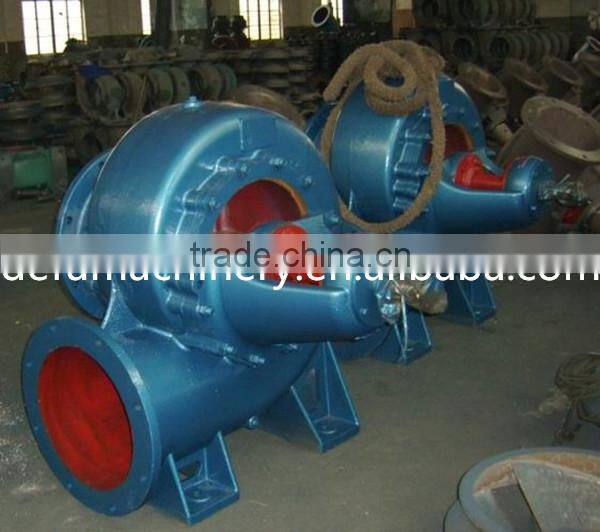

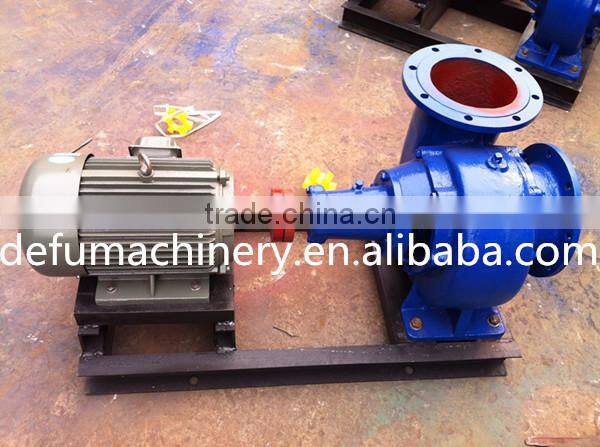

Photos of Product

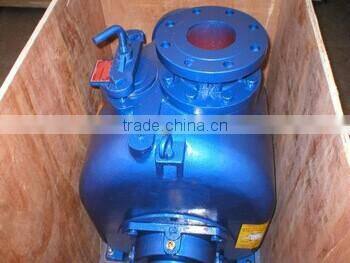

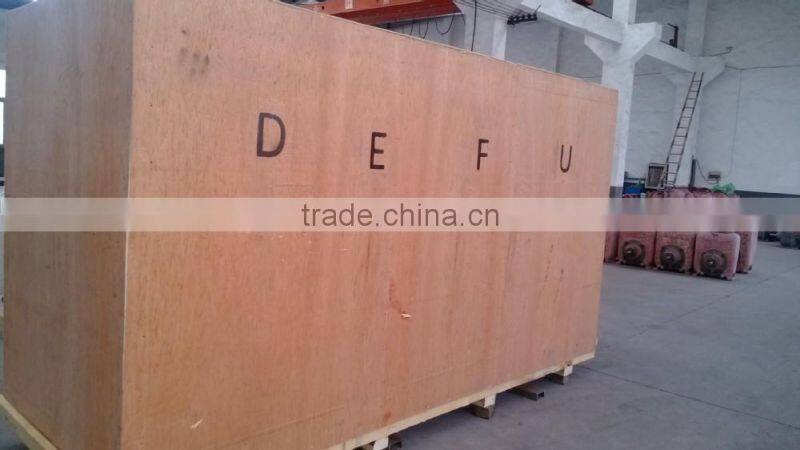

1 pc for 1 plywood case,exporting plywood case or as clients'requirement.
The Way of Transportation
According to your quantity or requirements,we can send the goods to you by Interenational Express or by sea
Interenational Express:(We will choose fast and economical way for you!)
Express way etc.
Wenzhou DEFU Machinery Co., Ltd. is a manufacturer of pumps with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in trash project, municipal project, chemical, irrigation, fire fighting and other industries.
This is our website

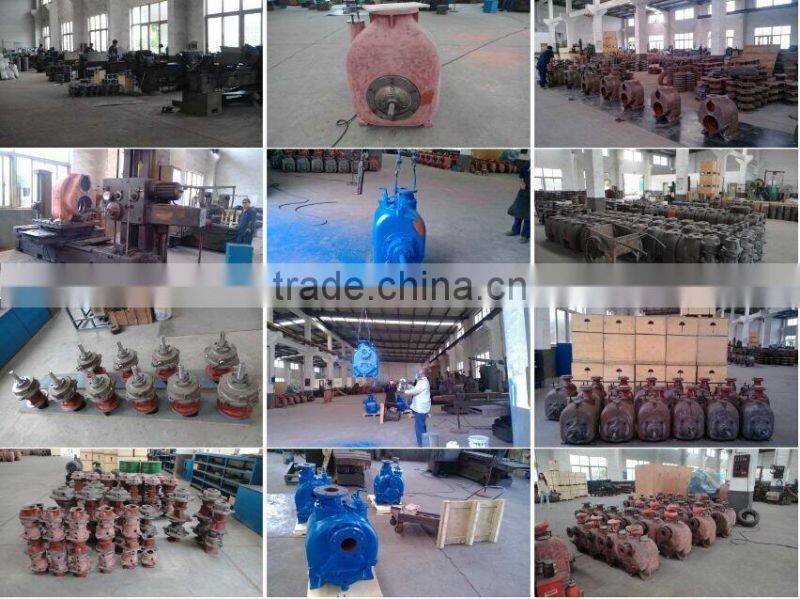

Work Shop
Should you have any question,please contract us
Contact Us
- Wenzhou Defu Machinery Co., Ltd.
- Contact nameLena D Chat Now
- Phone86-0577-86553150
- Address A Building, NO.209 Wenchang Road, Foreign Agricultural Comprehensive Development Zone,WenZhou,China, Wenzhou, Zhejiang
