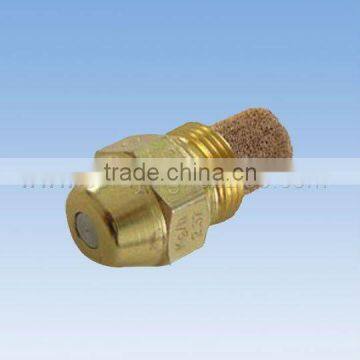

AAX Low pressure fogging oil burner nozzle

Why You Choose US ?! 6points will let you know!!!

1. Reply your inquiry within 8 hours.

2. Samples could be sent free.

3. Delivery time within 7 days.

4. Best after-sale service

5. Payment Term: 100%T/T , Western Union, L/C

6. Delivery Term: DHL/ UPS/FEDEX Express; Air/ Sea Transportation.

1.The remarkable performance of the nozzle made by Dongguan YueBosi Electronic Technology Co. Ltd may guarantee that your combustion machine work effectively and reduces the maintenance cost greatly.
2.After more than ten years research and the development, Dongguan YueBosi Electronic Technology Co. Ltd may provide you unified specification, remarkable performance AAX Oil Burner Nozzles series with the aid of the advanced manufacture assembly equipment.

         Performance for         Simple and convenient replacement           Product series

         brass oil nozzle

Perfect fog effect
In order to ensure the each parameter, such as flow rate, angle, and fog pattern could achieve a perfect fog effect. The same specification of the oil burner nozzle has same parameter. The design and manufacture process of fog cone and atomizing disc is important. For example, the atomizing hole of oil burner nozzle's atomizing disc is not a simple rounded hole. To achieve the ideal atomizing pattern and accurate atomizing angle, we have taken some special processing methods for the inlet and outlet.

Function for AAX oil burner nozzle
Expect the above parameters, oil burner nozzle has providential oil drops' diameter and Rate. All these make a contribution to our perfect atomizing effect, which is the precondition for a efficient burning.

Environment friendly burning
AAX oil burning nozzle with perfect atomizing features pays attention to protect the environment. Yue Bo Si Company advice you that you can change your nozzle every year, so that the nozzle is in the best working condition. In this way, you can reduce your fuel waste and your maintenance cost.

Trouble-free replacement
1. Yue Bo Si AAX series oil nozzles assure the all parameters of the same. Specifications, such as, atomizing flow rate, atomizing angle and atomizing pattern are in accordance.
2.Exchanging the fuel nozzle every year not only can reduce the fuel waste but also reduce the environmental population.

Oil nozzle’s using range
3.Dongguan YueBosi Electronic Technology Co. Ltd offers the full range of spray nozzles to meet your different requirements and applications.
4.Most families use the AAX series of nozzles, which can be mounted on a common burner on the market. Recently, we have made some of the series of nozzles improved, and make it more applicable to modern small-scale burner. At the same time, AAX nozzle series with flow rate bellow 1.75USgal/h reach the standard of CEN. This nozzle is not only mark the current nominal, but also atomization flow, spray angle and spray mode. This kind of nozzle can minimize the emission of smoke when the burner starts and stops.
5.This series of nozzle can significantly reduce the emission of exhaust gas.

 Nominal of Yue Bo Si oil nozzle
 Yue Bo Si Oil nozzle includes follow parameters: Atomizing flow rate, atomizing angle and atomizing pattern. Besides, nozzles whose flow less than 1.75USgal/h also have the CEN standard nominal.

Yue Bo Si AAX oil spray nozzle optimize matching suitable net with filtering oil according to different flow rate.
1.Flow rate: 0.40-0.45 USgal/h
2.Equip with 45μm melting copper net with filtering oil
3.Flow rate: 0.50-1.00 USgal/h
4.Equip with 75μm melting copper net with filtering oil
5.Flow rate: 1.10-1.35 USgal/h
6.Equip with 120μm melting copper net with filtering oil
7.Flow rate: 1.50-11.00 USgal/h
8.Equip with 140μm melting copper net with filtering oil
9.Flow rate: 12.0 USgal/h, not equip with net.
