500bph Standard Chicken Dressing Machine

FOB Price

US$ 50,000 - 100,000 / Set

1 Set(Min. Order)

Port Nanjing port/Shanghai port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Poultry
Place of Origin	Jiangsu, China	Brand Name	Baiyun
Model Number	N/A	Voltage	380/220V \| Customized
Power(W)	Standard / Customized	Dimension(LWH)	Customized
Weight	N/A	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

500bph chicken slaughtering main equipment details:

No.	Product name	Qty	description
1	Overhead Transfer Line	67m	Stainless steel chain, guide rails, stainless steel shackle, nylon hanging wheel and roller The distance of shackles:152.4mm Normal line speed:1.27m/min
2	Water Bath Stunner	1set	Plastic stunner, SUS support's height is adjustable δ:2mm, voltage is adjustable. Dimensions:1200mm×400mm×1300mm
3	Scalding Machine	1set	Thickness of Board:2.5mm Upper Cover Thickness :1.2mm Supporting Leg Thickness:2.5mm Air blowing stirring system 1 set, power is 2.2Kw Temperature between 58C°-61C° of the water Dimensions:2800mm×900mm×1900mm
4	A Shape Plucker	1set	De-feather Machine consists of 4 opposite against boxes.Each box is adjustable by actual requirement Each boxes contains 6 nylon discs.Each plucking discs contains 10 rubber fingers 4 independent belt drivers,Power :1.1KW *4=4.4kw/set Dimensions:2100mm×1620mm×2250mm
5	Carcass Washer	1set	SUS body δ:1.2mm, water spray system. Dimensions:2100mm×1620mm×2250mm
6	Shackle Unloader	1set	SUS frame is made of 40×40 quare tube, stainless positioning screw and stop bar φ16mm, can be adjustable by actual requirement. Dimensions:1200mm×400mm×700mm
7	Control Cabinet	1set	SUS body δ:1.2mm, electrical equipment 1 set, equipped with emergency stop and overload protection device. Dimensions:700mm×400mm×1400mm
8	Screw Chiller	1set	SUS body δ:2.5mm, SUS screw blade δ:1.5mm, air blowing system 1 set, power 3kw, drive power 0.55kw, Cold medium(water): crushed ice or cold water. Remark: Screw chiller does not contain the ice maker or flake ice machine Dimensions:3600mm×1760mm×1900mm
9	Table Cutter	1set	Capacity:200Kg per hour Used for carcass legs and wins cutting machine Dimensions:400mm×400mm×500mm

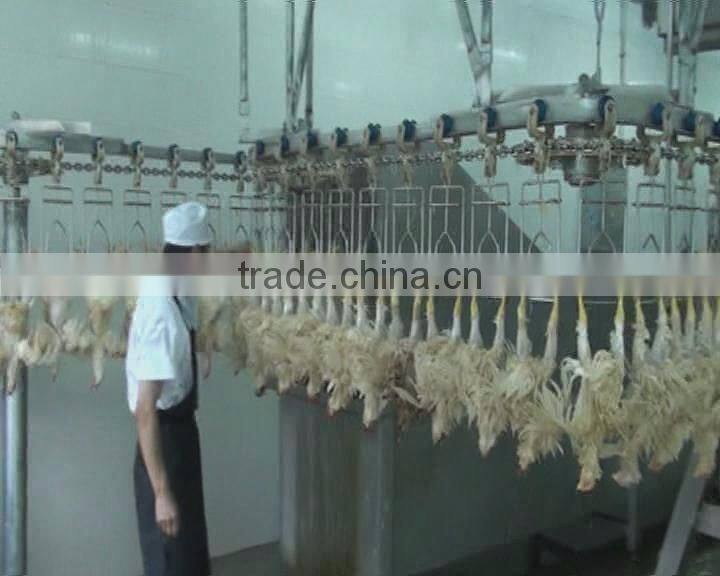

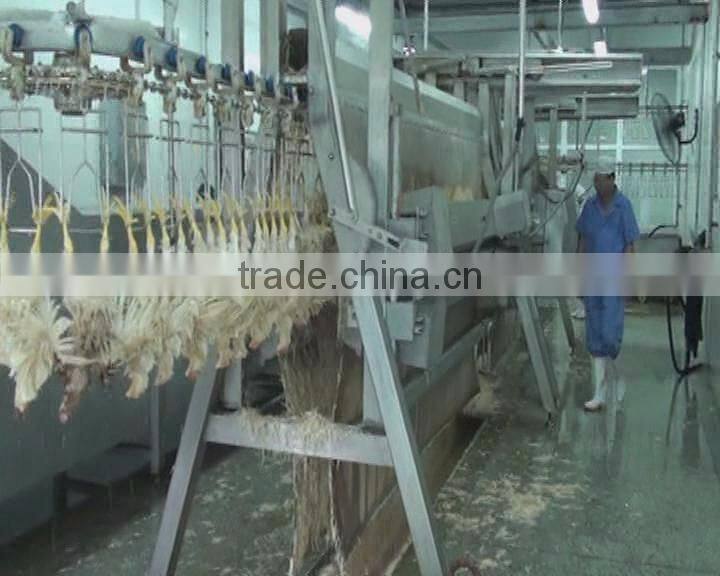

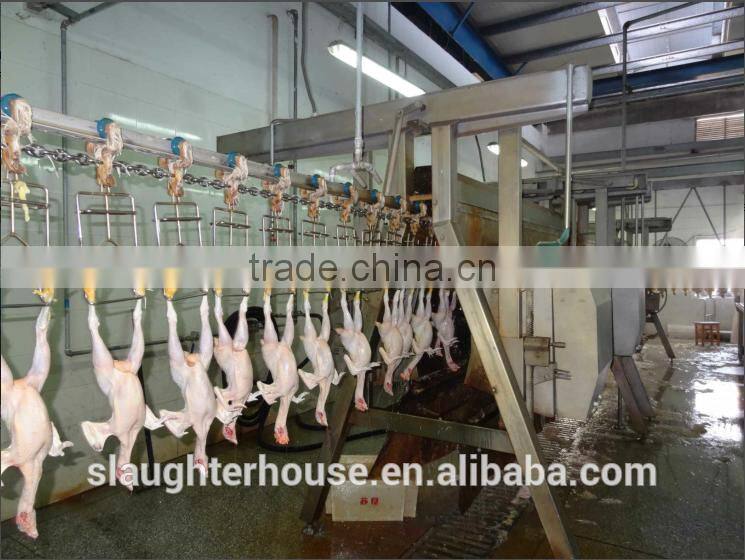

Detailed Images

Packing & Delivery

What is the details of shipping?

1.After our customer place an order,we will arrange factory to produce.
2.After we begin the process,the customer can come to factory for inspection cargo.

3.Delivery :by sea or by air both

4.Delivery time:by air usually 4-7days,by sea it depends on how far away the destination it is.

5.Package material:according to practical needs we can choose bulk /bundle/plywood case.

What payment terms we accept?

Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer)
