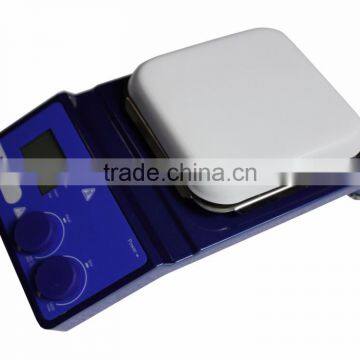

JK-MSH-Pro Digital Magnetic Stirrer With Hotplte

Features:
• Magnetic stirrer suitable for unsupervised operation, with new stir technology
• Automatic judgment stirring bar displacement and capture
• Hotplate with stainless steel surface or porcelain enamel surface with excellent chemical resistance
• Easy-to-read backlit LCD display
• Fuzzy logic control microprocessor technology guarantee maximum control accuracy
• Multiple modes ensure the stirring function not change due to external factors
• With the control of safe temperature,suitable for unsupervised operation
• 2 adjustable safety circuits ,separateness temperature sensor, protection temperature can be set
• Temperature sensor for heat transfer fluid and medium available(PT100)
• Warning display indicating presence of any residual heat when the unit is switched off
• PC control via RS232 interface
• T shows time control function,0-9999 minutes adjustable

Specifications:
Voltage[VAC] 110/220 ;
Frequency[Hz] 50/60;
Power[W] 500;
Stirring point position quantity 1;
Max. stirring quantity(H2O)[L] 20;
Stirring point position quantity[mm] 80;
Motor type brushless motor ;
Motor rating input [W] 18 ;
Motor rating output[W] 10;
Speed range[rpm] 100-1600;
Speed display LCD ;
Speed display accuracy[rpm] 1 ;
Material Stainless steel ;
Dimension of Plate[mm] φ135;
Heating power[W] 500;
Heat rate(1Lwater)[K/min]6;
Heating Temperature Range[℃] RT-350;
Temperature display LCD;
Temperature display accuracy[℃] 0.1;
Control accuracy of heating temperature[℃]1;
Adjustable safety circuit(heating plate)[℃] 100-350 ;
Temperature sensor of extra position PT100;
Control accuracy of heating temperature with temperature sensor[℃] 0.2;
Dimension[mm] 310×180×110;
Weight[kg] 3.5;
Permissible ambient temperature[℃] 5-40;
Permissible ambient humidity 80%;
Protection class acc. to DIN EN60529 IP42;
Time range:Ceramic surfaceith T shows having time control function,0-9999 minutes is adjustable.
RS232 interface yes;
