Wholesale Best Quality Used Farrowing Crate For Pigs

Product Features and Advantages

• Farrowing stall design also helps to provide baby pigs with more space and easy sow access for nursing.
• Specially-shaped finger bars at the side of the stall help to protect and preserve baby pigs.
• Farrowing stall is designed to make it easy for sows to enter and leave.
• System can be used for conventional or diagonal stall configurations.
• Diagonal systems offer up to 27% more stalls per fixed space and higher space utility for sows
• and their litters.
• Systems can also be used to retrofit existing sow farrowing facilities with gains of up to 20% more farrowing stalls per building.
• Stall design makes it easy to reach and care for sows.
• Stalls feature eight adjustments in length and four adjustments in width for sow comfort.

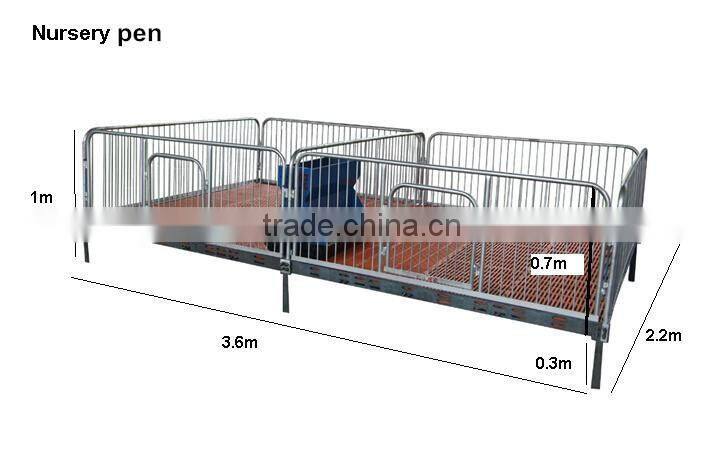

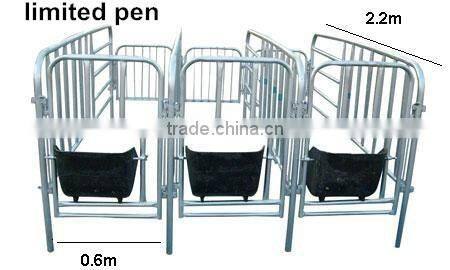

 Pig equipment is divided into farrowing crates,pig nursery cage,pig fattening pen,pig limited pen.

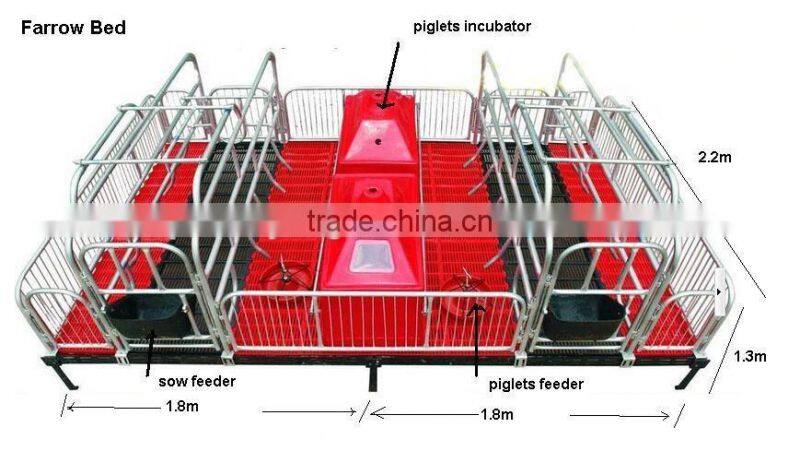

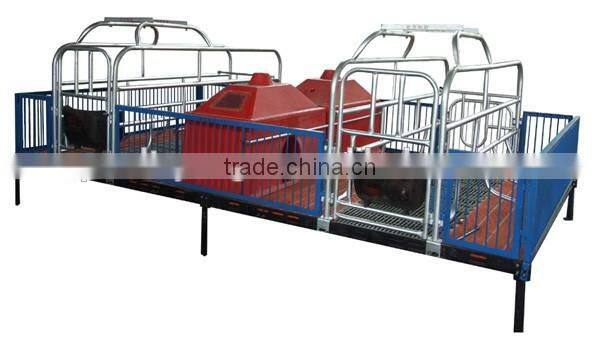

Pig Farrowing Crates

Pig farrowing crates is also called the litter bar, mainly from the sow positioning frame, piglet fence, incubator, leakage dung floor piglets, the mother trough and pig feeding trough, etc.

Sow positioning frame's role is to control the sow free zone and lie down, between a positioning rack bar, avoid piglets were killed, crushed to death and bruised.Positioning frame generally 2.1 2.3 meters in length, width of 0.6 meters, 1.0 meters in height.Limit shelf above the bottom rail of a welding have bent column, to protect the piglets, without affecting the sucking piglets, the mother trough and water fountain in positioning the front of the plane.

Piglets fence is to provide a space for activities for piglets, and prevent the run out.Enclosure of the grid type and plate type two kinds, gate type is good for ventilation and observation, but bad for epidemic prevention.Barrier for epidemic prevention but cost is higher, piglet fence is 2.0-2.3 meters long, 1.7 1.8 meters wide, 0.5 0.6 m tall, grid spacing is not more than 40 mm, piglets feeding trough and drinking fountains were installed in the rear of a fence, outside for waste in the defecation area, at the back of the pig middle floor consists of a plastic floor and cast iron floor.
