Small size quicklime rotary kiln production line
- 50 Set / Sets per Month
- QINGDAO/SHANGHAI/TIANJIN
- T/T
You May Like
-
Small size quicklime rotary kiln production line with ISO9001:2008 certification
-
quicklime rotary kiln production line with ISO9001:2008 certification
-
High efficiency and ISO9001:2008 Certificate Coal Press Machine
-
QM Gas Generator from Direct Factory
-
Coal Gas Producer from Direct Factory
-
Coal Gas Stove from Direct Factory
Product Details
| Condition | New | Production Capacity | 1-4.5t/h | |
| Place of Origin | Henan, China | Brand Name | Hong Ji | |
| Model Number | 1.8*45 | Power(W) | 30kw | |
| Dimension(L*W*H) | 1.8m*45m | Weight | 80t | |
| Certification | ISO, ISO9001:2008 & CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Features of Rotary Kiln:1) High efficiency and big capacity.
2) All kinds of specifications.
3) Environmental protection.
Henan Hongji Mine Machinery Co.,Ltd
Rotary Kiln Introduction:
Rotary kiln is the main equipment of calcining the cement clinker. The characteristics of a rotary kiln are with simple structure, convenient and reliable control of the producing process,with little wearing parts and high running rate. It is the equipment calcining the high grad cement in the cement factory. The rotary kiln is widely used in the metallurgy,chemical industry,construction and other industries.
Features of Rotary Kiln:
1) The rotary kiln is an inclined rotary cylinder, the raw material enter the cylinder through the high end of the machine,then move in with the movement of of the rotary kiln. Therefore, the rotary kiln is a conveying equipment.
2) Rotary kiln is a combustion device.
3) Rotary kiln has the function of heat exchange.
4) Rotary kiln has the chemical reaction function.
5) The rotary kiln has the function of degrading and re-using the waste.
Technical Parameters of Rotary Kiln:
| Model | Technical parameters | Motor power(kw) | Weight(t) | Remark | ||
| Rotation speed (r/min) | Obliquity(%) | Output(t/h) | ||||
| 1.6/1.9x36 | 0.53-1.59 | 4 | 2.5-4 | 30 | 53 | --- |
| 2.1/1.8x36 | 0.5-1.51 | 4 | 2.9-5 | 30 | 75 | --- |
| 1.2x25 | 0.5-1.6 | 3 | 0.3-1.2 | 15 | 34 | --- |
| 1.6x32 | 0.158-0.258 | 3 | 0.6-2 | 22 | 46.82 | --- |
| 1.8x45 | 0.66-1.98 | 4 | 1-4.5 | 30 | 80 | --- |
| 2.2x50 | 0.125-1.25 | 3.5 | 2-8 | 45 | 130.71 | --- |
| 2.5x50 | 0.516-1.549 | 3.5 | 5.5-13 | 55 | 167.5 | --- |
| 3x48 | 0.3309-3.309 | 3.5 | 9-20 | 90 | 237 | Decompose |
| 3.2x50 | 0.398-3.975 | 3.5 | 13-32 | 190 | 263 | Decompose |
| 3.3x52 | 0.391-3.91 | 3.5 | 14-38 | 190 | 280.8 | Decompose |
| 4x60 | 0.396-3.96 | 3.5 | 32-80 | 315 | 487.5 | Decompose |
| 4.2x60 | 0.4165-4.165 | 3.5 | 45-100 | 420 | 576.1 | Decompose |
| 4.3x62 | 0.398-3.98 | 3.5 | 51-120 | 420 | 598.5 | Decompose |
| 4.8x74 | 0.35-4 | 4 | 90-200 | |||

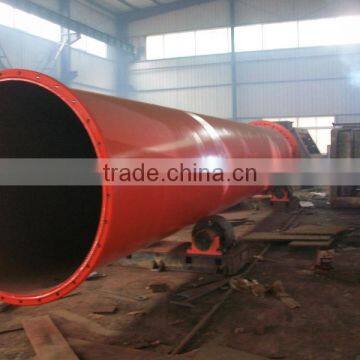

Product Show:
| |
| |
Henan Hongji Mine Machinery Co.,Ltd is a professional rotary kiln manufacturer, it also offers the whole set of cement production line equipments, and accepts production line turnkey project.If you have the need of a cement kiln or other rotary kiln, please don't hesitate to contact us.
Contact way:
Grace Li
Henan Hongji MIne Machiery Co.,Ltd
Mob:0086-13673650730
Tel: 0086-371-67668558
Fax:0086-371-67662768
Skype: hongji_grace
Look forward to your inquiry !!!
