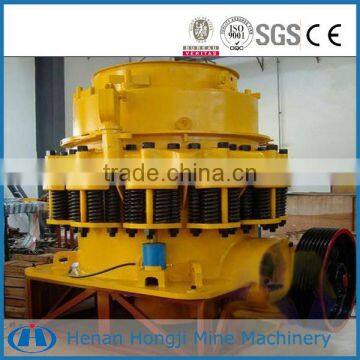

Hongji mobile stone crusher spring cone crusher ISO9001:2000 verified

1. Company Introduction:

  Our factory is a manufacturer and exporter of mining machinery in China.

 Our main products are grinding mill, briquetting machine,sand making production line, stone production line, magnetic separating production line, Flotation separating production line, cement production line, crusher, dryer, rotary dryer, rotary kiln, coal gasifier, conveyor, ball milland so on.

 All of them are ISO9001:2008 confirmed.

2.Introduction of mobile stone crusher spring cone crusher:

   The safety system uses dry oil and water as two kinds of sealed formation to make plaster powder and engine oil separated to make sure reliable performance. The type of crushing chamber depends upon the size of feeding and fineness of the crushed product. The standard type(PYB) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to fine crushing.

3. Application of mobile stone crusher spring cone crusher:

  Spring cone crusher is widely applied in metallurgical, construction, road building, chemical and phosphatic industry. Cone crusher is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz,granite, gritstone, etc. Type of the crushing cavity is decided by the application of the ores. Standard type is for PYZ (secondary crush); middle type is for PYD (tertiary crush); short-head type is for primary and secondary crush.

4.Structure of mobile stone crusher spring cone crusher:

   frame, the horizontal axis, moving cone, balancing wheels, eccentric sleeve, upper broken wall (fixed cone), the lower broken wall (fixed cone), hydraulic coupling, lubrication systems, hydraulic system, control system and so on.

5.Working Principle of mobile stone crusher spring cone crusher:

  Spring cone crusher crushes materials by the working surface between the movable cone and fixed cone. So it is more advanced and efficiency than jaw crusher. The movable cone is supported by spherical bearing and fixed on a hanging erect shaft, which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are droved by the eccentric shaft sleeve together. The eccentric shaft sleeve is driven by horizontal shaft and fimbriated gear, and the wheel of the conveyor belt is droved by motor through v-belts. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are grinded into pieces, when the cone leaves, grinded materials are discharged from the discharging hole. The fixed cone can be ascended or descended by adjusting setting to adjust the width of discharge hole consequently the output size is determined

6.Main Technical Data(parameters) of mobile stone crusher spring cone crusher:
