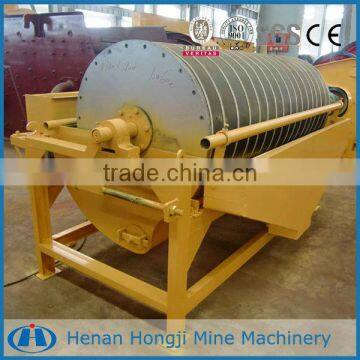

Good quality and high effiency Tin ore magnetic separator

FOB Price

US$ 5,000 - 150,000 / Set

1 Set(Min. Order)

Port Shanghai/Tianjin/Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Magnetic Separator
Production Capacity	10-180 t/h	Brand Name	Hongji
Model Number	CTB series	Power(W)	1.5-7.5kw
Dimension(LWH)	depond on model	Weight	depond on model
Certification	ISO9001 CE SGS	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

tin ore magnetic separator
1) High magnet intensity
2) Low energy consumption
3) High efficiency
4) Simple structure

Description of tin ore magnetic separator application:

Magnetic ore Separator is one kind of efficient equipment in the induetries like resource recovery, timber, mining ,ceramics ,chemical ,food ,etc. It applicable to magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephline.

Operating principle and structure of tin ore magnetic separator :

Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix. It possesses the following advantages: short magnetic circuit, little magnetic flux leakage, high magnetic intensity, low energy consumption, fine beneficiating results, simple structure and easy to maintain. They have been found widely used in more than 20 mineral processing plants of China.

main technical parameters of tin ore magnetic separator :

Model	Shell diameter (mm)	Shell length(mm)	Shell rotation speed(r/min)	Feeding size(mm)	processing capacity(t/h)	Power(kw)
CTB6012	600	1200	<35	2-0	10-20	1.5
CTB6018	600	1800	<35	2-0	15-30	2.2
CTB7518	750	1800	<35	2-0	20-45	2.2
CTB9018	900	1800	<35	3-0	40-60	3
CTB9021	900	2100	<35	3-0	45-60	3
CTB9024	900	2400	<28	3-0	45-70	4
CTB1018	1050	1800	<20	3-0	50-75	5.5
CTB1021	1050	2100	<20	3-0	50-100	5.5
CTB1024	1050	2400	<20	3-0	60-120	5.5
CTB1218	1200	1800	<18	3-0	80-140	5.5
CTB1224	1200	2400	<18	3-0	85-100	7.5
CTB1230	1200	3000	<18	3-0	100-180	7.5
