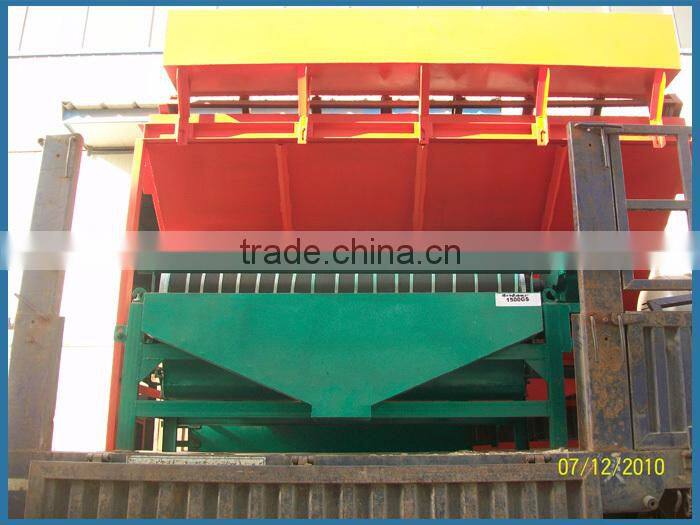

CTB Wet Magnetite Ore Magnetic Separator for Sale
- Shanghai/Tianjin/Qingdao
- T/T Credit Card
You May Like
-
Magnetite Wet Magnetic Separator Manufacturer in China
-
Manganese Ore Magnetic Separator With Best Price
-
Dry Magnetic Separator Equipment Manufacturer in China
-
Dry Process Iron Separator Magnetic Manufacturer in China
-
Dry Iron Sand Magnetic Separator Machine
-
High Efficiency Iron Ore Dry Magnetic Separator
Product Details
| Condition | New | Type | Magnetic Separator | |
| Production Capacity | 10-180 t/h | Place of Origin | Henan, China | |
| Brand Name | Hongji | Model Number | CTB series | |
| Voltage | 380V | Power(W) | 1.5-7.5kw | |
| Dimension(L*W*H) | depond on model | Weight | depond on model | |
| Certification | ISO9001 CE SGS | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
what's the wet magnetic separator can be used?
the magnetic separator can be used for dressing of the following ores with size less than 3mm, such as magnetite, pyrrhotine, calcined ore, ilmetite. it also can be used to remove the iron for processing of coal, non-metalic mineral and construction materials.
what's the main material of the magnetic separator?
the magnetic system of the magnetic separator is made by compositive material of high quality ferrite materials and rare earth magnetic steel and the magnetic induction is 100-600mt.
magnetic separator type
Uniflow , semi counter current, reflux type can be offered according to required.
Why you choose the magnetic separator?
1) with high capacity, easy to control and simple structure
2) max magnetic field strength can be 5000 oe
3) low investment
For more information about various magnetic separators, such as dry and magnetic separator, belt magetic separator, high magnetic separator, please feel free to contact us, as a reliable manufacturer, we will try our best to support your work.
main technical parameters of wet magnetic separator:
Model | Shell diameter (mm) | Shell length(mm) | Shell rotation speed(r/min) | Feeding size(mm) | processing capacity(t/h) | Power(kw) |
CTB6012 | 600 | 1200 | <35 | 2-0 | 10-20 | 1.5 |
CTB6018 | 600 | 1800 | <35 | 2-0 | 15-30 | 2.2 |
CTB7518 | 750 | 1800 | <35 | 2-0 | 20-45 | 2.2 |
CTB9018 | 900 | 1800 | <35 | 3-0 | 40-60 | 3 |
CTB9021 | 900 | 2100 | <35 | 3-0 | 45-60 | 3 |
CTB9024 | 900 | 2400 | <28 | 3-0 | 45-70 | 4 |
CTB1018 | 1050 | 1800 | <20 | 3-0 | 50-75 | 5.5 |
CTB1021 | 1050 | 2100 | <20 | 3-0 | 50-100 | 5.5 |
CTB1024 | 1050 | 2400 | <20 | 3-0 | 60-120 | 5.5 |
CTB1218 | 1200 | 1800 | <18 | 3-0 | 80-140 | 5.5 |
CTB1224 | 1200 | 2400 | <18 | 3-0 | 85-100 | 7.5 |
CTB1230 | 1200 | 3000 | <18 | 3-0 | 100-180 | 7.5 |
wet magnetic separator delivery
wet magnetic separator working site
fixed international standard package ,by sea delivery is safe and reliable ,suitable for oversea shipping .
1,we will be at your service for 24 hours,any question and requirement just let us know .
2,we have technical guide and engineer help ,can give you best suggestion and help you solve your problem .
3,our after-sale service is long time for the machine ,anytime with pleasure to answer your question .
4,we provide machine spare parts for free charge to our old customer and any new customer .
All of our machines with CE,ISO,ETC.

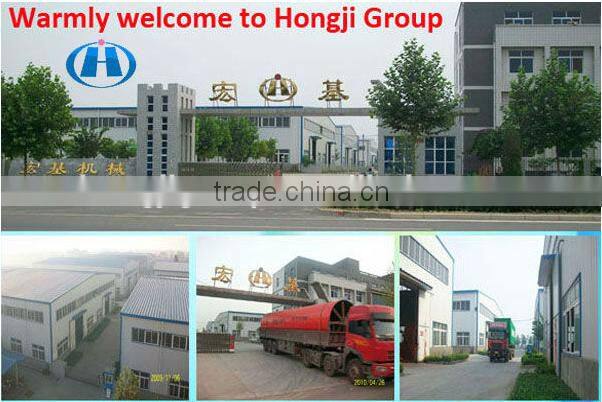

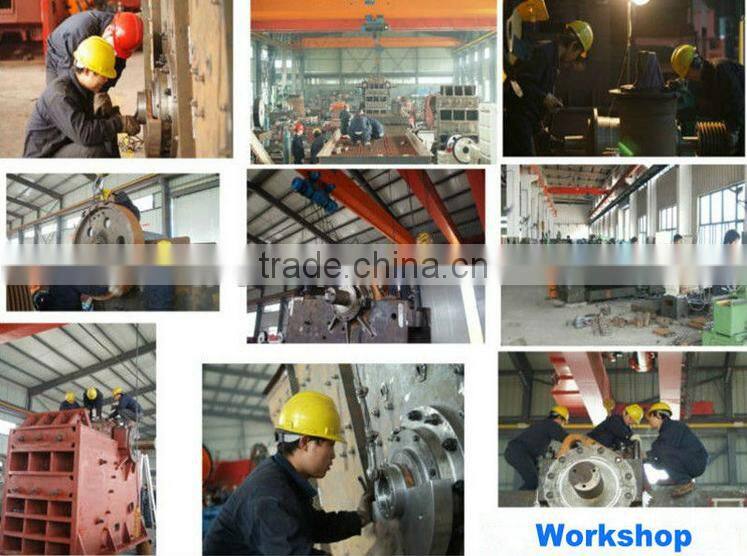

Henan hongji mine machinery Co.,Ltd is located in zhengzhou city ,henan province .With about 20years experenced big machinery factory in henan province .Mainly specilized in all kinds of crusher,shredder ,rotary kiln,dryer ,grinding machine,mining machine and so on , won many domestic and foreign customer to visit and cooperate.
Q:Are you manufacturer or trading company .
A: we are real manufacturer have our own big factory ,anytime welcome your visiting .
Q: What do you have for machine installing ?
A: We have engineer for technical guidance and oversea installing guide .
Q: How can you promise your product quality ?
A: We have about 20 years business experience,we got CE,ISO and so on for our products.but the most important we win our customer with our best quality and honest.
............
Any more question please contact with us and welcome your visiting at our factory .
