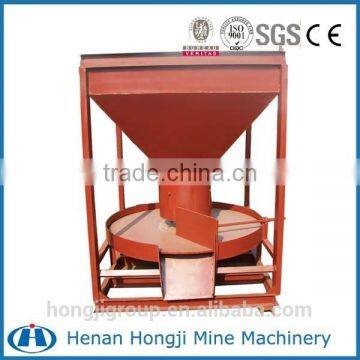

China high efficiency Mine Disk Feeder machine

FOB Price

USD $1,500 - $10,000 / Set

1 Set(Min.Order)

Port Qingdao/Shanghai/Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	ore,coal,cement,limestone,etc small size material
Power Type	Electric	Capacity(t/h)	6-15m3/h
Place of Origin	Henan, China	Brand Name	Hongji
Model Number	1200	Power(W)	1.1-7.5kw
Weight	900kg	Certification	ISO9001:2008,ISO 9001:2008
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

disk feeding machine with SIO:9001:2008 certificate
1. handy to operation
2. easy to maintain and repair
3. best service

Disc feeder machine description

It is a fine powdery material feeder suitable for non-cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.

Disc feeder is applicable for feeding powdery ore material less than 20mm.

Disc feeder machine structure and working principle

Disc feeder is composed of driving device, feeder unit, belt conveyor for metering use and metering device. Feeder and belt conveyor are drived by a set of driving device. The driving devices electromagnetic clutch can switch off or switch on the feeder. There is speed inspecting device to test the belt conveyor speed which shall be less than 1m/s, and measuring bar to adjust the weighing roller's position to prevent deflection.

Technical Parameters of Disk Feeder:

Model	Form	Disc diameter (mm)	Capacity (m³/h)	Disc rotation speed (r/min)	Material size (mm)	Motor (kw)
HJ-600	Seat-cover type	Ø600	0.69-3.9	8	25	Y90L-4 1.1KW
HJ-800	Seat-cover type	Ø800	1.6-7	8	40	Y90L-4 1.5KW
HJ-1000	Seat-cover type	Ø1000	4.2-12	8	50	Y100L-4 2.2KW
HJ-1200	Seat-cover type	Ø1250	6-15	7.5	50	Y112L-4 4KW
HJ-1500	Seat-cover type	Ø1500	12-21	7.5	50	Y120L-4 4KW
HJ-2000	Seat-cover type	Ø2000	18-32	7.5	50	Y132L-4 7.5KW
