Grid Type Ball Mill for Ore With ISO Certificate
- QINGDAO TIANJIN SHANGHAI TRC
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Ball Mill | |
| Motor Type | AC Motor | Power(W) | 18.5-800kw | |
| Capacity(t/h) | 0.65-130t/h, 0.65-130 | Place of Origin | Henan, China | |
| Brand Name | HONGJI | Model Number | HJ | |
| Dimension(L*W*H) | Depend on models | Weight | Depend on models | |
| Certification | ISO:9001-2008 | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
grid Ball mill for ore
Introduction of ball mill for ore:
The ball mill has two types as follow: grid type and overfall type.The granularity of grinding mine for
grid ball mill is 0.2-0.3 mm generally; therefore it is often used for first step grinding. The
granularity of grinding mine for overfall ball mill is less than 0.2mm; therefore it is often used for second
step grinding. The grid ball mill can discharge the proper product, stop the stone from crushing heavily, has
the high grinding efficiency, and the capacity is about 15percent higher than the overfall ball mill .The ball
load is bigger. If the needed granularity is 48-65, choose the grid ball mill better .The customer can
choose the proper ball mill according to the granularity of the grinding mine.

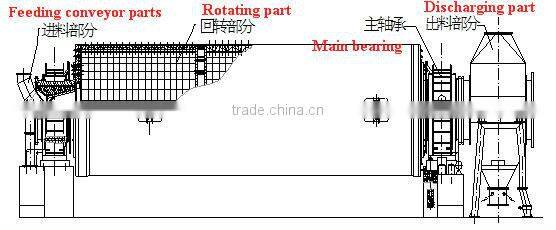

Structure of ball mill for ore:
1,Combine feeder, used for feeding
2,The tube part, there is a hole in tube that can be used for examining and repairing and changing line.
3,The output part , used for discharging proper product.
4,Main bearing part.
5.Driving part.
According to requirement of process line, ball mill is divided into the left rotary or the right rotary .
It depends on contract.
Wrking principle of ball mill for ore: The motor drives tube rotary by reducer, the ore and steel ball that in the tube are lifted to certain
height by line on effect of force of friction and centrifugal force. As a result of gravity, ore and steel
ball shed and pour down .It is crushed gradually on effect of impact and grind .The ore crushed is
discharged through output part .And then the ore is classified into proper product by spiral classifier,
and grit goes on grinding by ball mill through Combine feeder. It works like this. The ball mill is grinding
equipment that works continuous 24hours.
| |
Technical paraments of ball mill for ore:
We wecolme you to visit our company !
HONGJI' CERTIFICATION AND HONORS
Company profile:
Zhengzhou HONG JI Mining Machinery Co. , Ltd. is a pioneer enterprise in producing, designing mining technical plant, which is located in West zhongyuanRoad,Zhengzhou,
Henan province of China. Henan province has rich labor resources and high-tech talent.
In addition,Zhengzhou is transportation hub of central china, so the transportation is convenient.We supply such mining equipments –jaw crusher, impact crusher, cone crusher, sand making machine,mineral ball mill,portable crushing plant, vibrating screen, vibrating feeder, belt conveyor to our worldwide customers.
