Shrimp Cleaning and Sorting Machine

 Introduction of shrimp cleaning and sorting machine

1:The machine which is accord with the industry standard of food processing equipment.

2:made of SUS304 stainless steel in order to wash it conveniently after finishing the working .

3:This device is made up of three parts , one-level conveyor , two-level conveyor and screen roller .

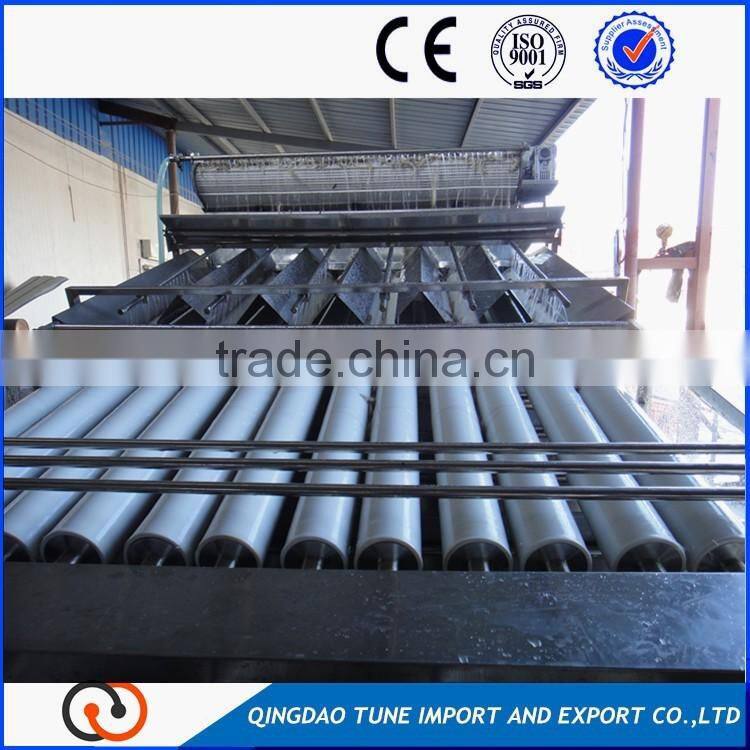

4:Screen roller is composed of at least two rollers with the shape of big in top and small in bottom .

5:There are space can be formed between two rollers which selecting the shrimp .

6:It finishes the all the producing process from transporting to selecting automatically and increase the efficiency very much .

7:The device adopt numerical to control specification of shrimp , the precision can be reach industry standard . It is the perfect processing equipment for marine product .

Feature of shrimp cleaning and sorting machine

1. The first two conveyor support is make of 75×45×1.5mm and 50×25×1.5mm stainless steel square pipe, the elevating is make of 304/2B stainless steel panel of 1.5mm thickness

2. The conveyor is make of high strong polyvinyl chloride metal band of width 1746mm,the baffle height is 10mm, two-stage lifting,the first is 2800mm,second 2000mm.

3. Conveyor guide rail is 1.5mm thickness 304/2B stainless steel panel and fiberboard.

4.Speed-down Motor:2pcs,stainless steel water pump:1.1kw,1pcs,UCF205 axes 8pcs.

5. Body support Φ114×2.5mm 304/2Bstainless steel square pipe.

6. Assorting cylinder is Φ125×130mm plastic Steel,12pcs.With UCP207 and UCF207 axes 24pcs

7. Guard plate both sides and exit is 1.5mm thickness 304/2B stainless steel

8. Roller drive: slowdown motor 1pcs,1.5kw

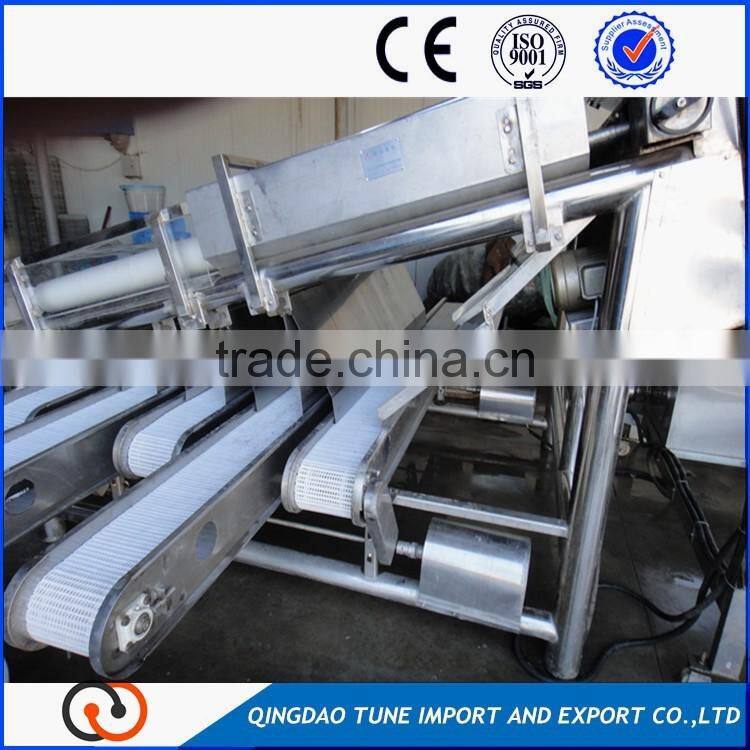

9. At bottom,there are 5pcs conveyors,the conveyor is polyvinyl chloride steel,width:185mm.each length:3100mm

10 Grading conveyor support is 2.0mm thickness 304/2B stainless steel, UCF204 axes 20pcs.0.4kw motor 2pcs.

11. Electrical system:control box 1pcs of stainless steel sheet,the conveyor and assorting cylinder is controlled by microcomputer.

Technical parameter of shrimp cleaning and sorting machine

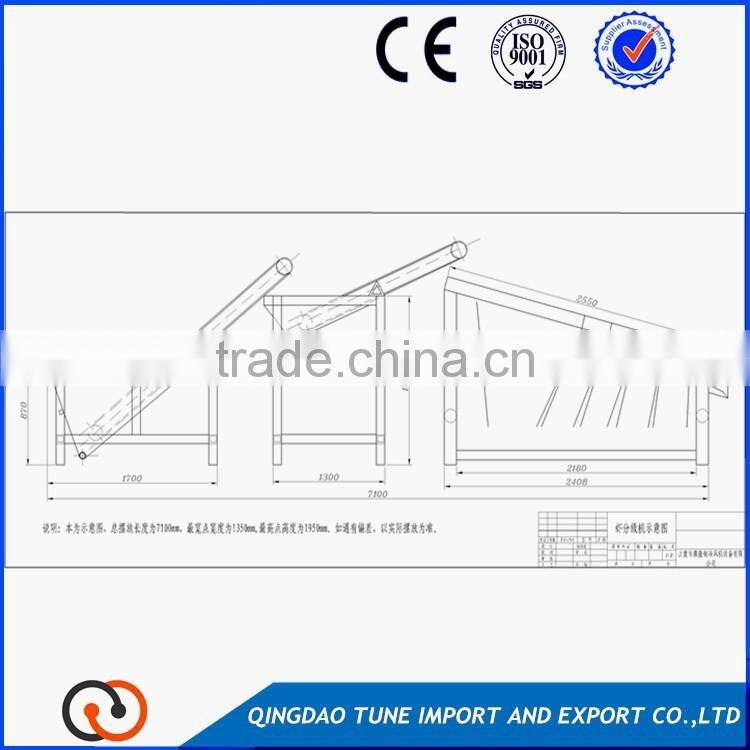

Drawings of shrimp cleaning and sorting machine

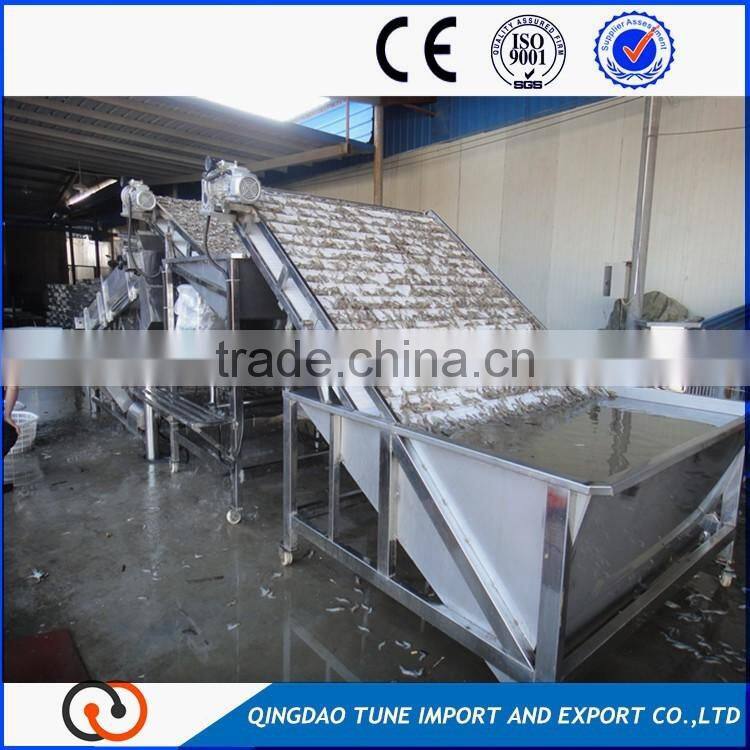

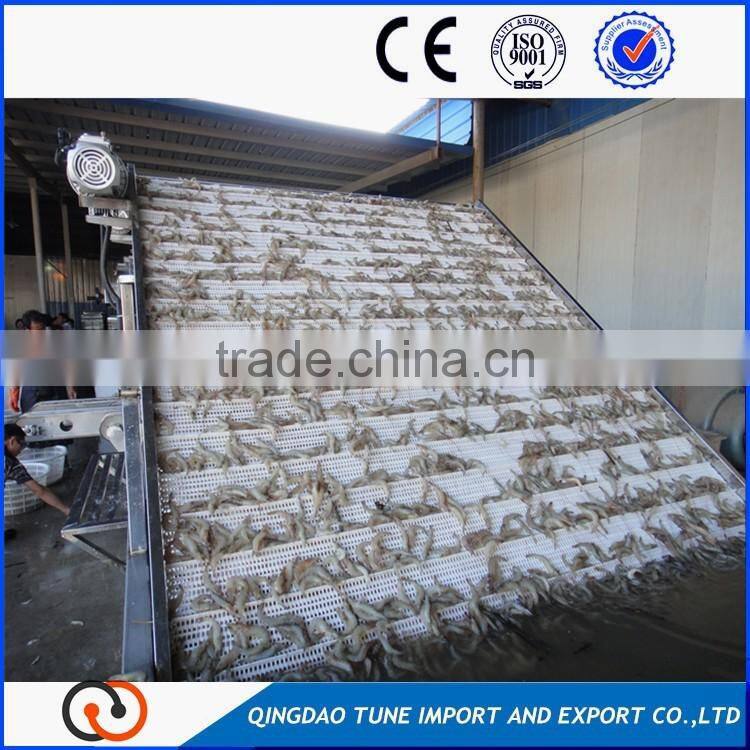

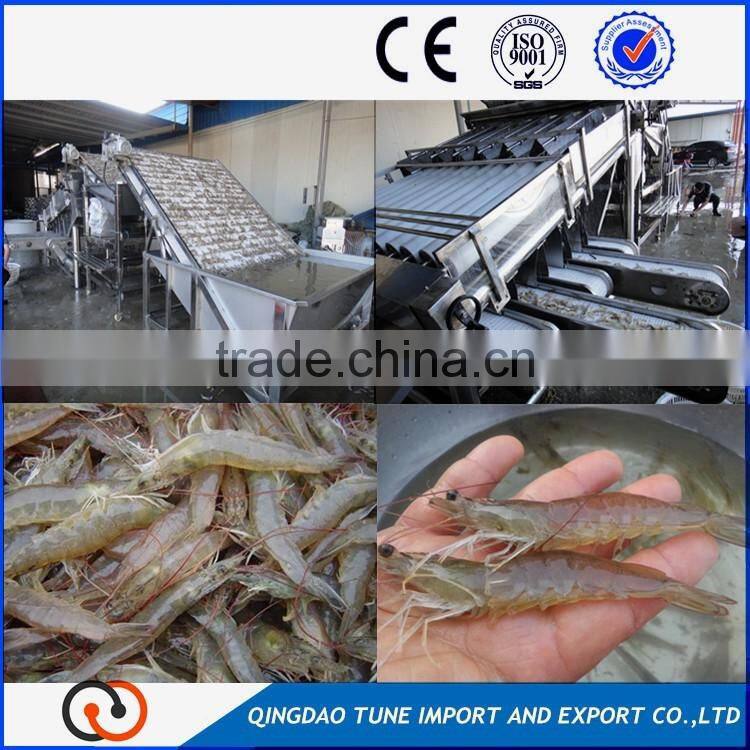

Photos of shrimp cleaning and sorting machine

Every clients care about the after-sell service, so we are:

1/ The Machine gets one year warranty period.

2/ During the time ,if the machine get in trouble we will guide you to deal with the problem .if it still don't work we will send our engineer to serve you until the problem be done. And we will pay the fly ticket .Notice that if you just need the spare part to instead the broken one after we found the cause , we will send you that free.

That is our words .

And we are looking for a good distributor in your country ,so the problems above they will be solved more timely .And we hope after tested the machine here could take a good business cooperation.

Wholesaler & Distributor

If you are dealing on shrimp farming equipment/Shrimp grader business and have interesting on us.

if you want became ours wholesaler or distributor on your place ,we are very willing to share profits together with you.

You will get

1/ VIP W/D price available

2/ New products update at first time

3/ 2 years free spare parts available

4/ quickly delivery

5/ free technical engineer door to door service
