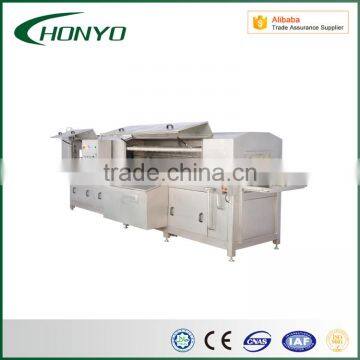

Stainless Steel Plastic Box washing Machine Basket Washing Machine

 Stainless Steel Plastic Box washing Machine Basket Washing Machine

Features:

1.It is made of 304 s.s.and modular design.

2.It is easy to install and running reliable.Long service life

3.The cleaning design is from all directions,it can make sure that plates can be washed all angles.

4.The conveyor worked under the control of transducer and reduction motor drive.The speed can be modified and continuously.

5.It has water circulation already installed,and has a filter to reintroduce clean water in the third paragraph,so the water can be used in economic.

Working Steps:

First step:

Plates or crates are put in cleaning machine, plates are washed in the 38℃-45℃(adjustable)which is transported from the water circulating pump to three dimension design spraying tube and after that the plates can be washed with 48 three-dimension spraying head.The dirt water are discharged into dirt water tube.

Second step:

Plates are washed in the 75℃-82℃(adjustable)which is transported from the water circulating pump to three-dimension design spraying tube and after that the plates can be washed with 26 three-dimension spraying head.The dirt water are discharged into dirt water tube or recycle use.

Third step:

Plates are washed all angles,the water enter the water box which is in the second step,recycle use.And in this phase,the water is clean,so trays or crates will be more cleaner.

Technology data of crates washer:

1.Dimensions:  Length 5000mm*Width 1300mm* Height 1650mm

2.Power: Hollow shaft motor reducer, 0.37Kw, variable frequency speed control

3.Sanitary water pump: Stainless Steel Pump Body: 7.5Kw*2Set                Capacity: 4.5 m³/h

Pump Lift: 38 Meters

4.Water consumption: Tap water: 0.9T/h (Pressure:0.2 Bar)

5.Steam: 80kg/h (The water temperature is above 40 degrees)

6.Working Station Height: 1000mm

7.Input box size:  E2(Length 600*Width 400*Height 200mm) Or Customized

8.Capacity:  1200/h Or Customized

9.Energy pipeline: Water Supply: DN25, 0.5-2 Bar    Steam Supply: DN25, 1-2 Bar

10.Materials: The shell is made of 2mm stainless steel plate,  Stainless steel pipe,

 Stainless steel spray nozzle

11.Speed: 10M/Minute Or Cusomized

12.Washing Temperature: Three Periods: 1.38-45℃ 2.75-82℃ 3.The nature water temperature

13.Heating method: Two methods: 1. Boiler Heating 2.Electric Heating

14.Max Box size: Width 550mm, Length No limited, Height 300mm

15.Including:

Three drive protection device

Automatic temperature control

Multiple contaminant filtering device

Automatic control electromagnetic valve for water and steam

Photoelectric induction device

Turning device of turnover box

Automatic air drying device
