Singflo 12v 14L/min Oil Transfer Gear Pump
- Xiamen port or Fuzhou port China
 - Credit Card

You May Like
-


Singflo DP-160 160psi 5.5LPM Electric High Pressure Water Pump 12v
 -


Singflo 12v dc 10A Macerator Sewage Toilet Pump
 -


Singflo DP-160 160psi 5.5LPM dc Singflo Water Pump/high Pressure Water Pump Car Wash/self-priming Pump
 -


Singflo 12v dc 49.2L/min Macerator Pump Toilet
 -


Singflo 12v Macerator Pump for Mobile Toilet
 -


Singflo Solar Powered Submersible Water Pumps for Well

Product Details
| Place of Origin | Fujian, China | Brand Name | SINGFLO | |
| Model Number | FP-12/FP-24 | Theory | Electromagnetic Pump | |
| Structure | Gear Pump | Usage | Oil | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Fuel | Diesel | Pressure | Low Pressure | |
| Application | Other, Oil transfer pump, Diesel oil transfer,lubricant transfer,water transfer etc. |
1pc/inner box;10pcs/ctn; Seaworthy strong cartons
Product Description
Specifications
oil transfer gear pump14LPM/3.7GPM
Self Priming:3m
Bronze body and stainless steel shaft
CE approved

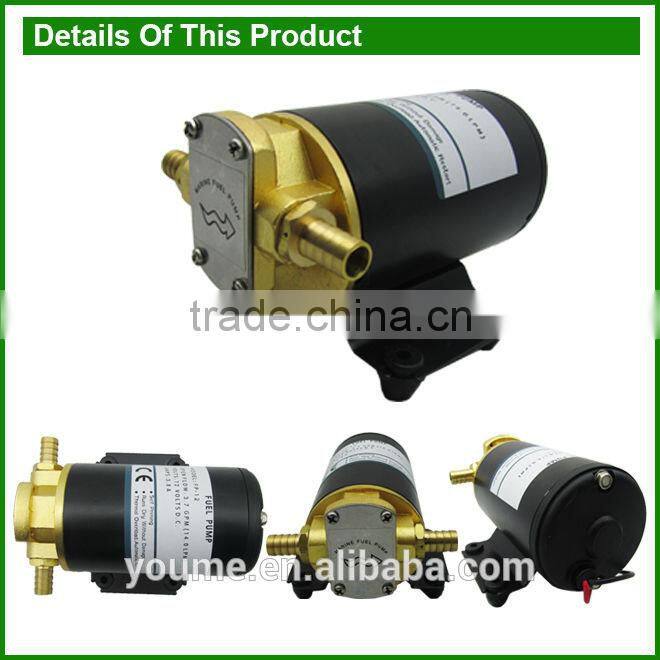

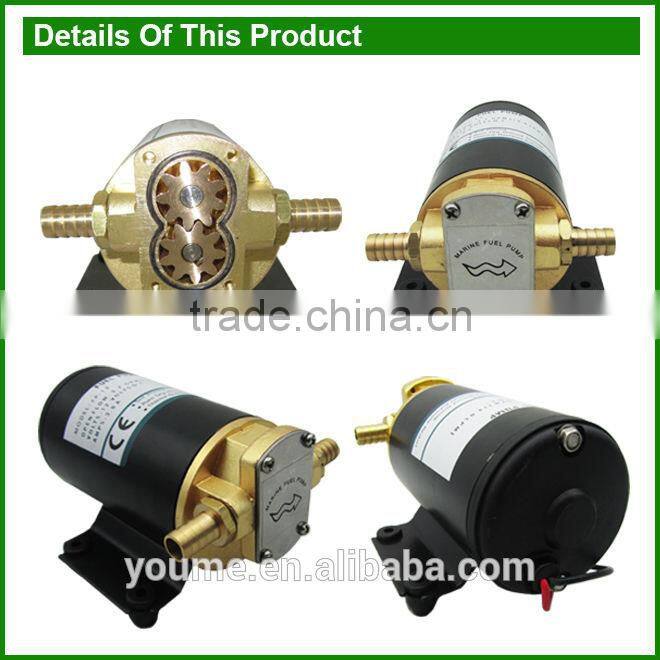

Singflo 12v 14L/min oil transfer gear pump
14LPM/3.7GPM
Self Priming:3m
Application:
Diesel:Lubricant;Viscous liquids
Be able to use for water and machinery fuel (except gasoline)
Specifications:
| Body Materials | Bronze |
| Impeller | Neoprene compound |
| Seal | Lip Type |
| Port(s) | 3/8''Female Thread,1/2''Barbed Fittings Included |
| Voltage | 12V dc |
| Amp Draw | Max.10.0(amp) |
| Fuse Size | 15.0(amp) |
| Motor Type | Permanent Magnet Type Fully Enclosed Stainless Steel Shaft Ball TypeShaft Bearing Reversible  |
| Self-priming | 3.0m vertical lift |
| Pressure | Can generate pressures up to 2bar(30psi) |
| Liquids | Lubricants and visous liquids |
Technical data:
| Model | Volt | Flow (lpm/gpm)  | Max.Lift (m)  | Amp Draw (A)  | Max draw (A)  | Packing Size (mm)  | N.W./G.W. (kgs)  |
| FP-12 | 12 | 14.0/3.7 | 3 | 7 | 10 | 215*135*110 | 2.48/2.68 |
| FP-24 | 24 | 14.0/3.7 | 3 | 4 | 6 | 215*135*110 | 2.48/2.68 |
Certifications:

If you're interested in our gear oil pump, pls don't hesitate to contact us!
Ms.Lucy Chen
Trade manager: cn1501674438
Skype: singflo.pump5
Tel: +86 592 5612511
Sample for testing are welcomed.
Company Profile
                    YouMe Electric Co., Ltd is a leading company that mainly manufactures and trades precision pumps and flow control components. Since 2010, we have provided innovative, high-quality products with reasonable price for a wide range of fluid control applications. Our product engineers work closely with customers to meet their precise performance requirements: -- We have devoted on adblue /def dispenser system since 2008 cooperating with adblue liquid factories & distributers in Europe & Asia. -- Each product has been tested on functionality and performance, and the flow meters are calibrated piece by piece after complete assembly in workshop before delivery. -- Our new plus-bottled water dispenser design was customized with convenience - the pump automatically shuts off when the water source is depleted, and automatically restart when water is restored. This assures damage free to the appliance when running dry. Our products are widely used in a varity of industries including: Adblue / DEF dispenser, Water Treatment and Purification, Biotechnology (Lab water), Medical, Floor Care, Automotive, Road Construction & Maintenance, Beverage/Foodservice, RV/Marine, Agriculture, and Alternative Energy (Solar & Fuel Cell). We directly base on a factory with OEM in over forty countries, and globally deliver our products on time through our distribution network.
