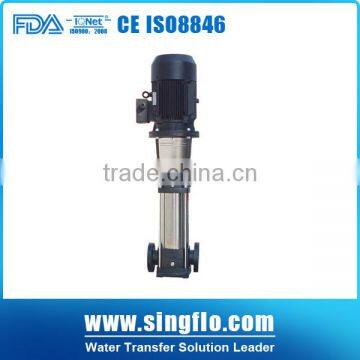

CDL/CDLF series 50Hz QDLF Serial Light-duty Stainless Steel Vertical Multistage Centrifugal Pump water pump

CDL/CDLF is a kind of multifunctional products. I can be used to convey various medium from tap water to industrial liquid at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is uitable for slightly corrosive liquid.

1. Water supply: Water filter and transport in Waterworks, boosting of main pipeline, boosting in high-rise buildings.

2. Industrial boosting: Process flow water system, cleaning system, high-pressure washing system, fire fighting system.

3. Industrial liquid conveying: Cooling and air-conditioning system, boiler water supply and condensing system, machine-associated purpose, acids and alkali.

4. Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.

5. Irrigation: Farmland irrigation, spray irrigation, dripping irrigation.

Operation conditions:
•Thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
•Liquid temperature:

 Normal temperature type: -15C~+70C,

 Hot water type: -15C~+120C
•Ambient temperature: up to +40C
•Altitude: up to 1000m

Max. Working pressure:
The following figure shows the limitation of pressure and temperature, which shall be in the scope as shown in the figure.

Max. Ambient temperature:
When the pump operates under ambient temperature higher than 40C or under altitude higher than 1000m, because of low air density and poor cooling effects, the motor output power P2 will be decreased to certain extent. If the pump is operated under the above-said conditions, it should be equipped with motor of higher power.
