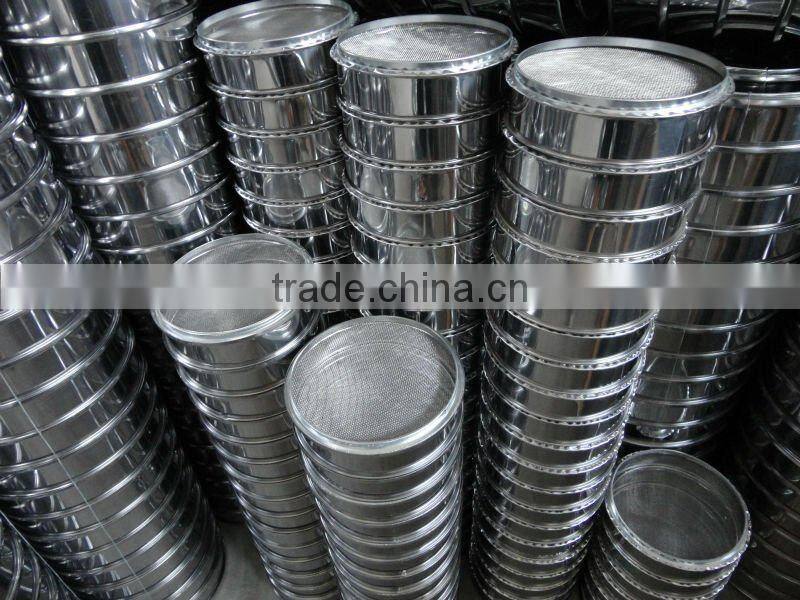

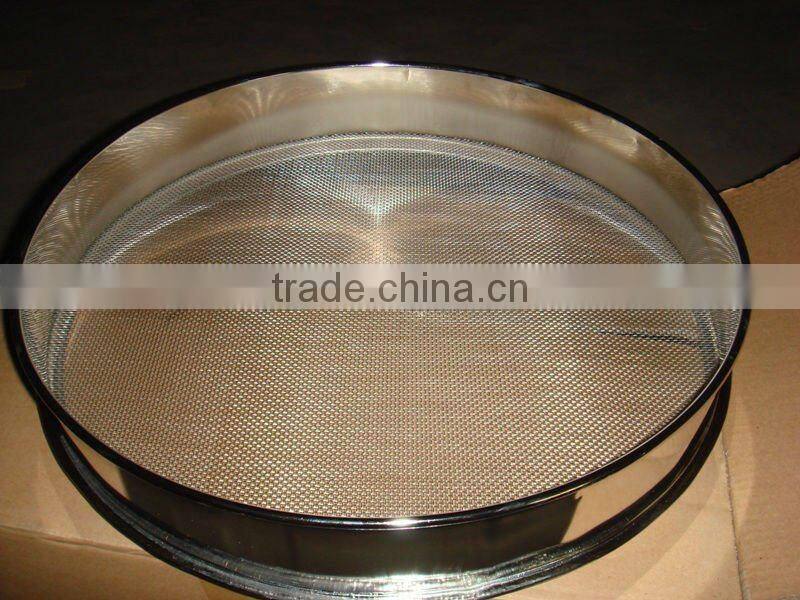

sand mesh sieve

Features :

1. Finest quality mesh;

2. Epoxy fillet technique is adopted recently to ensure smooth and uninterrupted flow of material through sieving medium.;

3. Aperture size: perforated plate for aperture size bigger than 1.18mm Woven mesh for aperture size smaller than 1.18mm

4. Frame thickness: double layer, 0.5mm/layer. Sand Sieve 300mm (12inch)dia.×60mm height.

Aperture:

0.075mm, 0.15mm, 0.6mm, 1.18mm, 2.6mm, 4.75mm, 9.5mm

Stone Sieve Specification:2.36mm, 4.75mm, 9.5mm, 13.2mm, 16mm, 19mm, 26.5mm, 31.5mm, 37.5mm, 53mm, 63mm, 75mm, 90mm

Technical Parameters

Classification		Test sieves of metal wire cloth	Test sieves of perforated metal plate	Test sieves of electroformed sheets
Material		Stainless Steel, H80 Brass	Stainless Steel	Stainless Steel
Production Technology		Weaving	Punching	Electrochemical machining
Production Standard		GB6003.1-1997 standard and ISO3310-1:1990 R20/3,R20,R40/3 series	GB6003.2-1997 standard and ISO3310-2:1990 R20/3,R20,R40/3 series	GB6003.3-1997 standard and ISO3310-3:1990 R20/3,R20,R40/3 series
Specification	Pattern (mm)	Φ75/ Φ100/ Φ127/ Φ200/ Φ203/ Φ300/ Φ400/ Φ600	Φ75/ Φ100/ Φ127/ Φ200/ Φ203/ Φ300/ Φ400/ Φ600	Φ75
	Frame Thickness	0.6-0.7 mm	0.6-0.7 mm	0.6-0.7 mm
	Mesh Size	2.36mm-0.02mm	15mm-3.35mm	500μm-5μm
Application		widely used in abrasive, building materials, chemical, pharmaceutical, metallurgy industries, etc.	widely used in abrasive, building materials, chemical, pharmaceutical, metallurgy industries, etc.	widely used in abrasive, building materials, chemical, pharmaceutical, metallurgy industries, etc.
