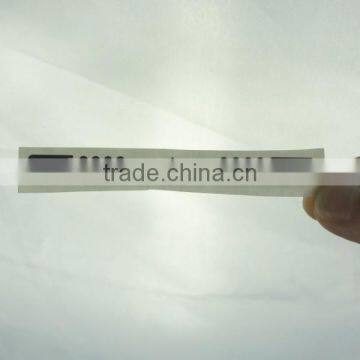

Cheap uhf rfid tags 840mhz - 960Mhz Alien H3 Inlays and Labels

Antenna Width

3.732” [94.8mm]

Antenna Length

0.319” [8.1mm]

Web Width (-FRA)

4.252” [108.0mm]

Web Width (-FSRA)

3.874” [98.4mm]

Web Pitch

0.625” [15.875mm]

Core Width (-FRA)

4.252” [108.0mm]

Core Width (-FSRA)

3.874” [98.4mm]

Core ID

6” [152.4mm]*

Core Material

Fiberboard

Interleaf Material

Paper

Interleaf Width

1.5” [38.1mm]

Inlays per Roll

20,000 Nominal

Maximum Roll OD

< 12” [304.8mm]

Roll Labeling Data

Roll #, Quantity

Inlay Width

3.866” [98.2mm]

Inlay Length

0.484” [12.3mm]

Web Width

3.992” [101.4mm]

Web Pitch

0.625” [15.875mm]

Core Width

4.752” [120.7mm]

Core ID

6” [152.4mm]*

Core Material

Fiberboard

Inlays per Roll

20,000 Nominal

Maximum Roll OD

< 16” [406.4mm]

Roll Labeling Data

Roll #, Quantity

White (-FWRWA)

TT Printable White Film

Overlay

Overlay Adhesive (-FWRWA)

General Purpose Permanent

Inlay Adhesive

General Purpose Permanent

Adhesive Application Temperature

> +25ºF [-4ºC]

Adhesive Service Temperature

-40ºF to +200ºF

[-40ºC to +93.3ºC]

Release Liner

40# SCK

Shelf Life

2 years at +77°F [+25°C] @

40%RH

Recommended Storage

+77ºF [+25°C] @ 40% RH

Storage Limits

-13°F to 122°F

[-25°C to +50°C]

20% to 90% RH

Non-condensing

Operating Limits

-40°F to +158°F

[-40°C to +70°C]

20% to 90% RH

Non-condensing

Bend Diameter

> 1.97” [50mm]

Pressure

< 5N/mm2

Drop Resistance

Per ASTM D5276

Write Cycles

100,000 @ 25°C

RoHs

2002/95/EC, 2005/618/EC,

2011/65/EU Compliant

REACH

1907/2006/EC Compliant

(SVHC and ECHA)

ESD Limit– HBM / CDM

5.0kV / 1.5kV

Protocols Supported

ISO/IEC 18000-6C

EPCglobal Class 1 Gen 2

Integrated Circuit

Alien Higgs-3

EPCglobal Certificate

950110126000001084

Operating Frequency

840--960 MHz

EPC Size

96--480 Bits

User Memory

512 Bits

TID

32 Bits

Unique TID

64 Bits

Access Password

32 Bits

Kill Password

32 Bits
