Product Details
| Place of Origin | Guangdong, China | Model Number | SR-RFID3421, SR-RFID3421 |
Product Description

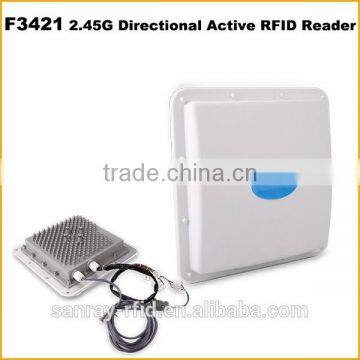

Product Name: Sanray 2.45GHz Active RFID reader with RS232 Interface for RTLS (Directional)
Model No: SR-RFID3421
Frequency:2.4GHz~2.5GHz ISM(customizable)
Small size, easy to install
Excellent anti-collision performance
Multiple Interface
Key features
Small size, easy to install
Long distance identification, strong receiving sensitivity
Excellent anti-collision performance
Little RF Power (No more than 1dBm, transmitting power ≤2mw), which is suitable for human carry and environment friendly
Multiple communication interfaces, also can be customized
Self-development communication protocol and can customize and expand as your requirement
Compatible to other tag protocol and improve the performance of system application
Technology specifications | |
Operating frequency | 2.4GHz~2.5GHz ISM |
Identify direction | Directional |
Antenna | 15dBi build-in antenna |
RF power range | -18.0dBm~0.0dBm( adjusted by 32 grade) |
Receiving sensitivity | -90.0dBm |
Operating mode | FHSS or fixed frequency(set by software) |
Modulation | GFSK |
Reading range | 0~200m adjustable RSSI reader can be adjusted less than 10m |
Anti-collision | Up to 1000 tags read simultaneously |
Buffer capacity | 2000 tags data |
Communication speed | 25Kbps, 1Mbps, 2Mbps(adjustable) |
Communication interface | RS-232, S-485, Ethernet, Wiegand26/34/42/50 |
Input and output | 1 triggering input, 1 relay output |
Optional function | 2 relays, CAN, RSSI, ID match function, Offline function, Time function |
Power supply | AC input: 100~240V, 50/60Hz 1.2A DC output: 5V/1A |
Product size | 225mm*225mm*100mm |
Packing size | 450mm*300mm*140mm |
Gross weight | 2.78kg |
Net weight | 1.82kg |
Working temperature | -20°C~+70°C(-4~+158 degree F) |
Storage temperature | -40°C~+85°C (-40~+185 degree F) |
Accessories | Power adapter, Power cable, RS-232 cable, Mounting bracket |
Working status indication | Buzzer |
Typical Applications
Intelligent transportation management
Asset identification, tracking and checking management
Intelligent management in traffic police, patrolman etc.
Position moniter management for baby, prisoner, olders psychotic etc.
Electronic ticket, access control, time attendance, school management etc.
