Remote control workshop overhead crane
- 0 per Month
- Qingdao
You May Like
Product Details
| Condition | New | Application | workshop | |
| Rated Loading Capacity | 20t | Rated Lifting Moment | 7.5-22.5m | |
| Max. Lifting Load | 20t | Max. Lifting Height | 30m | |
| Span | 6.5-31.5m | Place of Origin | Shandong, China | |
| Brand Name | Xinguangzheng | Model Number | LD | |
| Certification | ISO, CE, SGS | Warranty | 12 month from the B/L date | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Span: 6-34m2.Lifting capacity: 0.5- 20tons
3.Lifting Height: 6- 30mtrs
4.Match with CD1/MD1 type hois

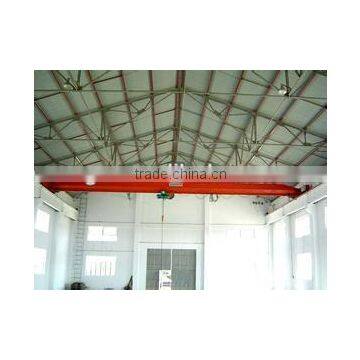

Workshop Overhead Crane
1. Introduction
The single girder 10t overhead crane is the most popular crane for all type of workshops. It can be characterized by advanced metal structure and higher steel strength, used together with CD1 or MD1 electric hoist as a complete set.
These cranes are more efficient and require less maintenance.working class A3-A5, working temperature is between -25C to 40C.
This crane model recommended by the WTO and match China standard JB/T1306-94.
Which has two operational methods- pendant or cabin (open or closed type).
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
2.Sketch
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
3.Technical parameter
LD-10t-20m-9m | |||
Crane traveling system | Traveling speed (m/min) | 20 | |
Ratio i | 58.78 | ||
Motor | Model | ZDY122-4 | |
Power (Kw) | 2×1.5 | ||
RPM (m/min) | 1380 | ||
Hoist part | Model | CD1 | |
Lifting speed (m/min) | 7 | ||
Lifting height (m) | 9 | ||
Traveling speed (m/min) | 20 | ||
Lifting motor | ZD151-4/13 | ||
Traveling motor | ZDY121-4/0.8X2 | ||
Work duty | A5 | ||
Power supply | 380V 50Hz 3P | ||
Wheel diameter | Φ270 | ||
Rail range | 60~70 | ||
Basic dimension (mm) | H1 | 1000 |
h | 1600 | |
L2 | 1830 | |
L1 | 1230 | |
W | 3000 | |
B | 3500 | |
h1 | 1250 | |
Min wheel load (t) | 1.55 | |
Max wheel load (t) | 6.6 | |
Total weight (t) | 7.76 | |
Span (m) | 20 | |
Lifting capacity (t) | 10 | |
-----------------------------------------------------------------------------------------------------------------------------------------
4. Lifting tools:
-------------------------------------------------------------------------------------------------------------------
5.Matching accessories:
6. If you are in market of crane,please let me have the following information:
7.Short introduction of my company:
Our company is established in 1996,has been in steel structure building,container house,prefabricated house,related building materials,various matchines for almost 20years,So I am fully confident in supplying you the relavant products.
