Workshop Double Girder Overhead Crane
- Qingdao
You May Like
Product Details
| Condition | New | Application | workshop | |
| Rated Loading Capacity | 10t-50t | Rated Lifting Moment | 7.5-22.5m | |
| Max. Lifting Load | 50t | Max. Lifting Height | 14m | |
| Span | 6.5-22.5m | Place of Origin | Shandong, China | |
| Brand Name | Xinguangzheng | Model Number | LD | |
| Certification | ISO, CE, SGS | Warranty | 12 month from the B/L date | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Lifting capacity:50t2.Span:22.5m
3.Lift height:12-14m
4.Certification: OHSAS
Workshop Overhead Crane
1. Introduction
| Crane system | |
| Main body | strong bridge main beam and end beam boxed type with No Juncture Welding technology |
| Lifting mechanism | High quality lifting trolley, with hydraulic brake and load overload protection |
| Electrical equipment | Electric systems are Siemens brand,Schneider brand or CHINT brand---Best in China |
| Motors | motors are Nanjing Special Brand –NO.1 for electric hoist lifting and single beam travelling |
| Gear box | Tailong or Taixing brand, Top brand on heavy duty gearbox |
| working duty | A4-A7 |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
2.Sketch
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------
3.Technical parameter
LD-10t-20m-9m | |||
Crane traveling system | Traveling speed (m/min) | 20 | |
Ratio i | 58.78 | ||
Motor | Model | ZDY122-4 | |
Power (Kw) | 2×1.5 | ||
RPM (m/min) | 1380 | ||
Hoist part | Model | CD1 | |
Lifting speed (m/min) | 7 | ||
Lifting height (m) | 9 | ||
Traveling speed (m/min) | 20 | ||
Lifting motor | ZD151-4/13 | ||
Traveling motor | ZDY121-4/0.8X2 | ||
Work duty | A5 | ||
Power supply | 380V 50Hz 3P | ||
Wheel diameter | Φ270 | ||
Rail range | 60~70 | ||
Basic dimension (mm) | H1 | 1000 |
h | 1600 | |
L2 | 1830 | |
L1 | 1230 | |
W | 3000 | |
B | 3500 | |
h1 | 1250 | |
Min wheel load (t) | 1.55 | |
Max wheel load (t) | 6.6 | |
Total weight (t) | 7.76 | |
Span (m) | 20 | |
Lifting capacity (t) | 10 | |
-----------------------------------------------------------------------------------------------------------------------------------------

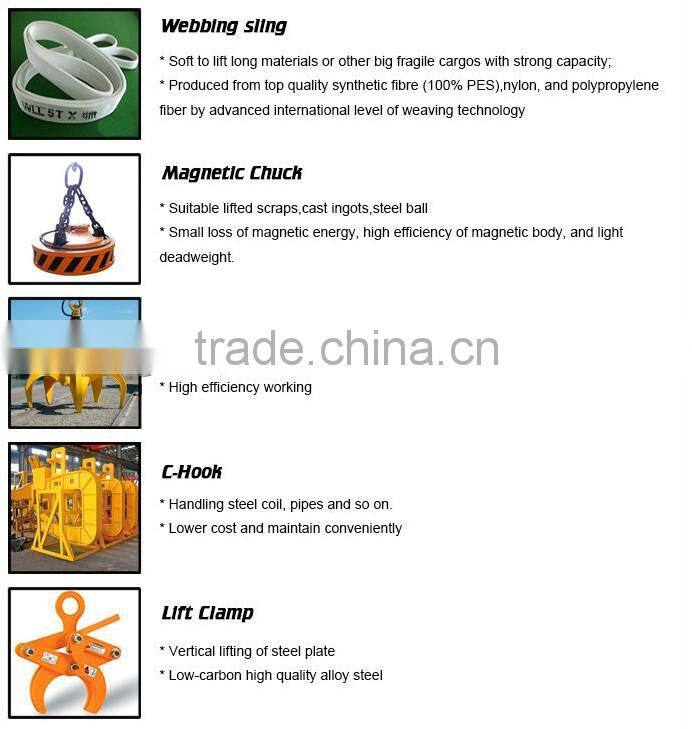

4. Lifting tools:
-------------------------------------------------------------------------------------------------------------------

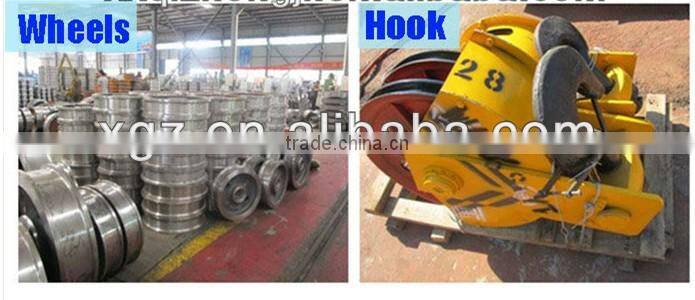

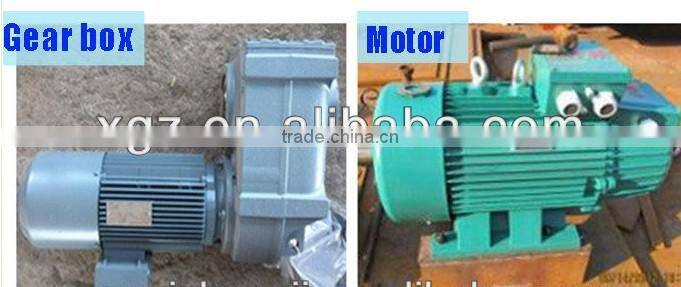

5.Matching accessories:

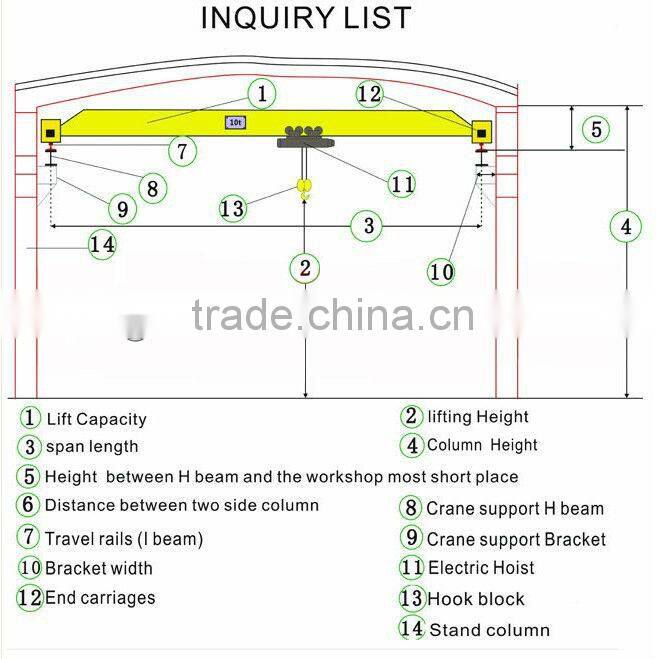

6. If you are in market of crane,please let me have the following information:
7.Short introduction of my company:
Our company is established in 1996,has been in steel structure building,container house,prefabricated house,related building materials,various matchines for almost 20years,So I am fully confident in supplying you the relavant products.
