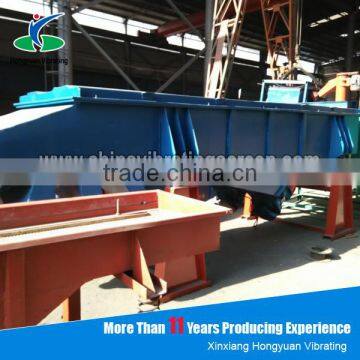

Hongyuan brand linear vibrating screen classifier replacement
- 300 Set / Sets per Month
- Qingdao Tianjin Shanghai Ningbo
- T/T Credit Card
You May Like
-
vibrating sieve shaker vibration screen sieve machine made in xinxiang
-
China bucket elevator conveyor with plastic elevator bucket
-
high efficiency TDTG series Bucket Elevator with cheap price
-
china chain cement vertical elevator bucket with factory price
-
China factory direct supply Bucket Elevator for Chips
-
Stable operation Granular Conveying Price Bucket Elevator
Product Details
Condition | New | Type | Linear | |
Application | Other, vibrating sieve, flour, milk powder, sugar, sand | Place of Origin | Henan, China | |
Brand Name | Hongyuan | Model Number | DZSF1235 | |
Voltage | 110V-480V as per demand | Power(W) | 0.75KW*2 | |
Dimension(L*W*H) | as per order | Weight | as per the model | |
Certification | CE,ISO,CCC | Warranty | 12 months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Stretch film inside and wooden box outside and loading to the container.
Product Description

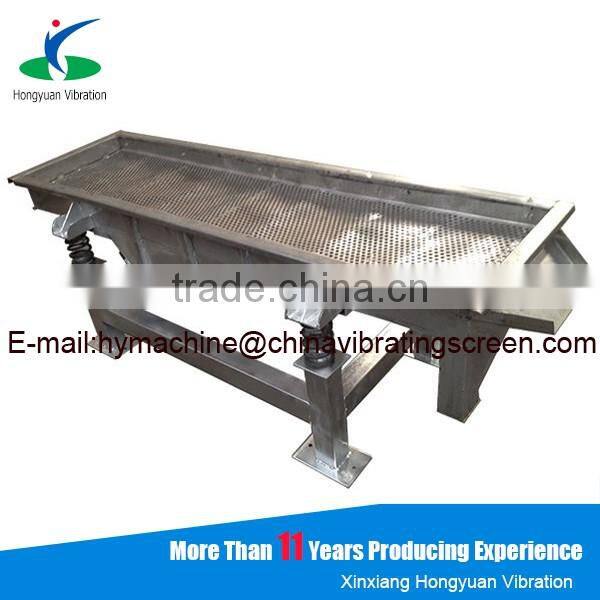

Hongyuan brand linear vibrating screen classifier replacement
1. Linear vibrating screen classifier is a kind of new equipment that utilizes the excitation of vibrating motor to make the materials be thrown up and move forward for straight line motion so as to match the vibrating tumbler screener mesh reasonably.
2.This linear vibrating screen classifier fits for sieving or sperating any kind of sand material with the size between 0.074 and 5 mm, and the max grain size is 10 mm.
Working as linear vibrating screen classifier, it has the folloing features:
- low energy consumption, high productivity
- simple structure, easy maintenance
- fully enclosed structure, no dust and automatic nesting
- It is more suitable for work of assembly production line.

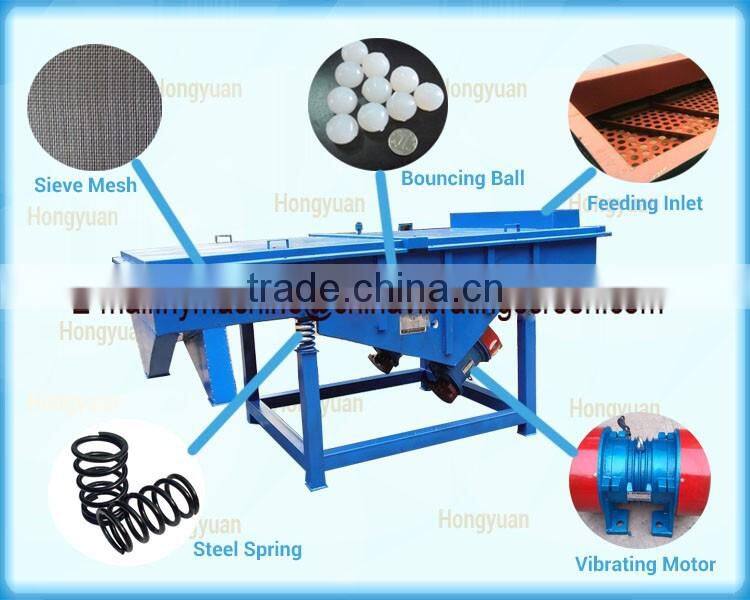

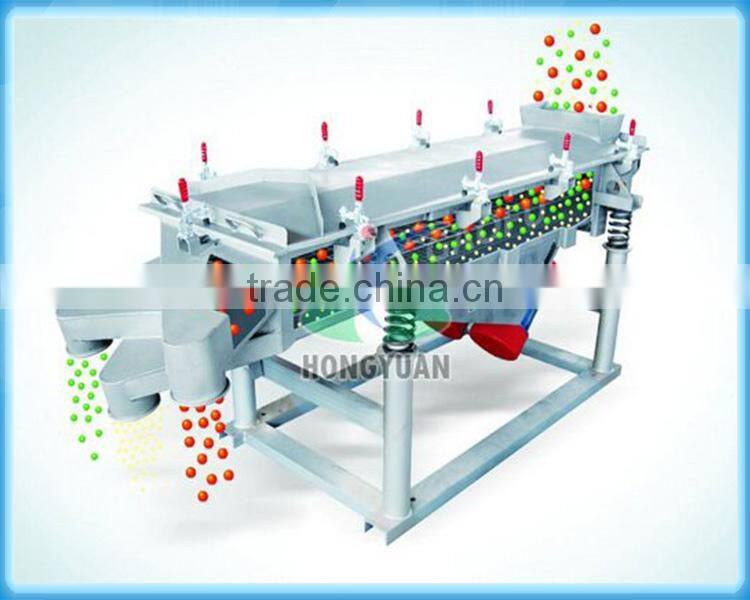

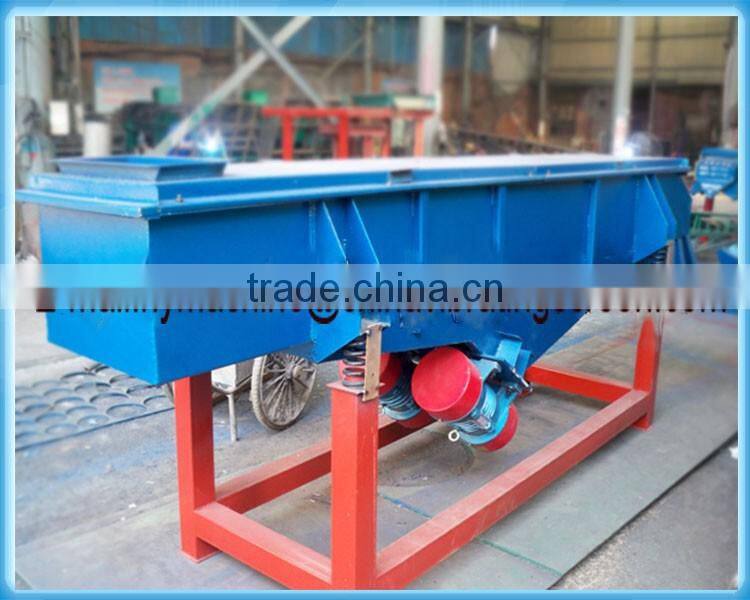

Linear vibrating screen classifier adopts dual vibrating motors. When the two motors do synchronized and reverse rotation, the generated centrifugal force is offset in the parallel direction of motor axis, and stacked together as a resulting force in the perpendicular direction of the motor axis. Hence, the vibrating tumbler screener sieving machine trajectory is a straight line. There is a inclination in the relative sieve surface of two motors, under the resulting force of exciting force and the force of gravity, the material was thrown up on the screen and leaped forward for straight line motion so as to achieve the purpose of sieving and and separating of sand materials. It can be applied to the assembly line to achieve the automatic work.
Model | vibration surface size(mm) | Layer | mesh size(mm) | Screening Capacity(t/h) | Vibration Times(r/min) | Amplitude(mm) | Power(kw) | Size(mm) |
---|---|---|---|---|---|---|---|---|
DZSF520 | 500×2000 | 1 2 3 1 2 3 4 5 6 | 2-200 | 0.05-5 | 960 | 6-7 | 2×0.4 | 2140×808×848 |
2DZSF520 | 0.05-5 | 960 | 6-7 | 2×0.4 | 2199×808×878 | |||
3DZSF520 | 500×2500 | 0.03-5 | 1450 | 4-6 | 2×0.4 | 2256×808×938 | ||
DZSF525 | 0.06-8 | 960 | 5-7 | 2×0.4 | 2642×808×848 | |||
2DZSF525 | 0.06-8 | 1450 | 4-6 | 2×0.4 | 2699×808×878 | |||
3DZSF525 | 0.06-8 | 960 | 6-8 | 2×0.75 | 2750×808×938 | |||
4DZSF525 | 0.1-15 | 1450 | 5-7 | 2×0.4 | 2813×808×1000 | |||
5DZSF525 | 0.08-15 | 1450 | 5-7 | 2×0.4 | 2883×808×1060 | |||
6DZSF525 | 0.07-15 | 960 | 6-8 | 2×0.75 | 2953×808×1120 | |||
DZSF1020 | 1000×2000 | 1 | 0.12-20 | 960 | 6-8 | 2×0.75 | 2152×1320×900 | |
2DZSF1020 | 2 | 0.11-20 | 960 | 5-7 | 2×0.75 | 2219×1320×960 | ||
3DZSF1020 | 1000×2000 | 3 | 2-200 | 0.10-2 | 960 | 5-7 | 2×0.75 | 2286×1320×1030 |
4DZSF1020 | 4 | 0.07-15 | 960 | 4-8 | 2×0.75 | 2353×1320×1100 | ||
5DZSF1020 | 5 | 0.07-15 | 960 | 4-8 | 2×1.5 | 2420×1320×1160 | ||
6DZSF1020 | 6 | 0.07-15 | 960 | 4-8 | 2×1.5 | 2487×1320×1220 | ||
DZSF1025 | 1000×2500 | 1 | 0.1-15 | 1450 | 5-7 | 2×0.4 | 2203×1320×900 | |
2DZSF1025 | 2 | 0.08-15 | 1450 | 5-7 | 2×0.4 | 2269×1320×960 | ||
3DZSF1025 | 3 | 0.07-15 | 960 | 6-8 | 2×0.75 | 2336×1320×1030 | ||
DZSF830 2DZSF830 3DZSF830 | 800×3000 | 1 2 3 | 0.1-20 | 960 | 6-8 | 2×0.75 | 3080×1098×1120 | |
0.1-20 | 960 | 6-8 | 2×0.75 | 3140×1098×1180 | ||||
0.1-20 | 960 | 6-8 | 2×1.5 | 3200×1098×1240 | ||||
DZSF1030 | 1000×3000 | 1 | 0.1-20 | 960 | 6-8 | 2×0.75 | 3152×1340×1120 | |
2DZSF1030 | 2 | 0.1-20 | 960 | 6-8 | 2×1.5 | 3219×1340×1120 | ||
3DZSF1030 | 3 | 0.1-20 | 960 | 6-8 | 2×1.5 | 3286×1340×1120 | ||
DZSF1224 | 1200×2400 | 1 | 0.1-23 | 960 | 6-8 | 2×0.75 | 2480×1520×1100 | |
2DZSF1224 | 2 | 0.1-23 | 960 | 6-8 | 2×0.75 | 2540×1520×1160 | ||
3DZSF1224 | 3 | 0.1-23 | 960 | 6-8 | 2×1.5 | 2600×1520×1220 |

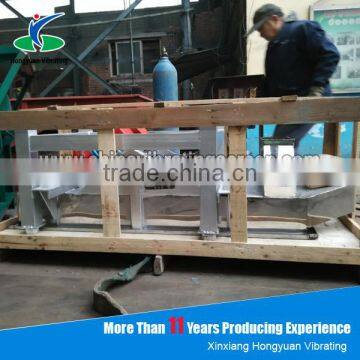

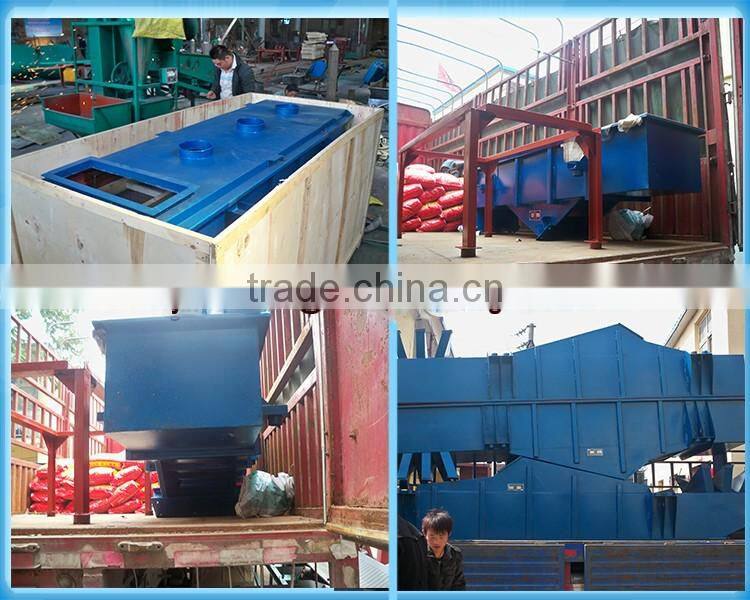

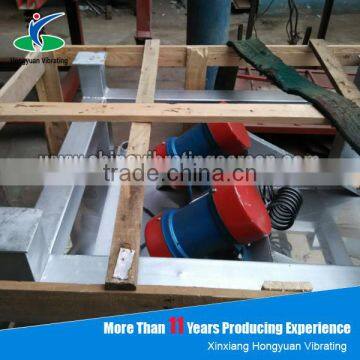

1.Stretch Film inside for water corrosion and fumigation wooden box for outside packing.
2. Loading to the container.
Xinxiang Hongyuan Vibratory Equipment Co.,Ltd
Advantages of Our Company:
1.More than 10 years production experiences;
2.Direct manufacturer;
3.Stable quality
Our Services
1.Pre-sales Service
1) Offering comprehensive technical and business consultation services;
2) Proposing th e most suitable scheme and equipment for our clients;
3) Designing and fabricating targeted products according to the special requirements of clients;
4)Training periodically high qualified service technician.
2.After-sales Service
1)Highly inspecting equipments in every working procedure, quality comes first;
2)Fast & Safe Delivery;
3)Assisting our clients for foundation construction of equipments;
4)Dispatching engineers to install and debug equipments;
5)Training the first-line operators on site;
6) Regularly visit clients to solve production problems;
8) Providing technical exchanging.
Xinxiang Hongyuan Vibration Equipment Co.,Ltd
Add: West Ji for the Western Industrial Zone, Wangcun Town, Xinxiang,Henan
Tel:+86-373-2677969
Fax:+86-373-2677952
Skype:Abby Zhang www.
WhatsApp:+86-130-7262-8377
Company Profile

Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is located in the Hi-tech Development Zone of Henan Xinxiang, which is the largest manufacturing base of vibrating screen in China. The city of Xinxiang also has the advantage of convenient transportation, as the Yellow River is in the north of it, the Beijing-Hong Kong-Macau Expressway is in the east of it, and the Beijing-Guangdong Railway is in the west of it. The company is specialized in the manufacturer, sales and research of vibrating screen and non-vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high-pressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator). Presently there are over 200 employees, among them, 65 have professional titles of middle and senior. In the year of 2000, the CAD work station was established by the company, which is an earlier one in the same field. Moreover, our products have scientific design, high performance and reasonable price. Depending on the first-rate products, as well as the advanced technology and equipment, highly competent personnel, strict management, and complete inspecting measures, the company has fostered a good image. Aiming at high quality and satisfying service, and based on the principles of honesty, pragmatism, innovation and diligent, the company does welcome the old and new customers to communicate and corporate with us. For over ten years, the company has devoted itself into the manufacture and development of vibratory equipment, which includes vibrating screen and non-vibrating screen, conveyor, feeder, vibrating motor, elevator, etc. In addition, the company not only has the excellent equipment, but also has a comprehensive marketing and after-sale service network all over Asia. Before sales, this network can provide technology support; for sales, it can provide help for business negotiation; and after sales, it can provide guide for installation and application. All in all, this network can assure you satisfying service in the whole process. At last, the company does want to express the heartfelt thanks to the trust and support of the old and new customers. It is hoped that we can make progress and create a bright future together! Hongyuan does welcome you!
