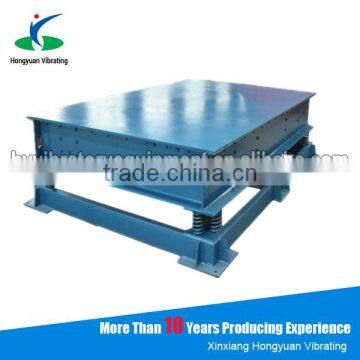

ZDP series lab Concrete Vibrating Table

in standard export wooden packaging or according to your requirements.

ZDP series  lab Concrete Vibrating Table

1. Vibrating table is also called compacting platform.

2. Vibrating table is mainly used for contacting material.

3. It can decrease and remove the gap or air between material.

4. it is widely used to check the strong degree of the glass Its basic principle is the glass plate is placed on vibration platform, the pneumatic rod vibration platform reduced to sucker device is controlled by hydraulic device, sucker device controlled by vacuum pump, automatic vacuum glass plate, Vibration platform to vibration, the glass plate vibration, then if the glass is not shatter the good quality of the glass is illustrated. After vibration, sucker loosen by pulling the lever drag glass back to in situ, driven by manual work moved to the next working procedure.

a. It mainly consists ofbottom brackets, upper platform, vibrating motor and shock-absorbing device.

b. Three dimensional vibrating motion: a. horizontal b. vertical. c. un to down.

c. Spring: Steel spring, rubber spring, Composite spring.

d. Motor quantity should be even number, such as 2, 4, 6, 8…

a. In the working process, By adjusting the vibrating force, the material can realize a ideal type.

b. The vibrating motor is vibrating source. Low noise and consumption, and be easy to maintain.

c. Simple structure. Light weight, small volume, reliable working, and be easy to install.

d. Vibration model: up to down, screw vibration and dimensional vibration.

e. Large power and platform, Max power can arrive to 7.5kw. Max loading: 8 T.

f. Height can be adjustable. So it is suitable for product line.

g. Infinitely variable speeds.

h. Auto locking function. It can make sure the manufacturing security.

  It can be desined as your request, such as demension, color and any other special requirements.

 Technical of vibrating table

1,The vibration table is widely used in metallurgy, mold, food , chemical , building materials and other industries .
2,Vibration platform used in the production process to the granules, powder material shift from bulk to block, shape and form .

3. Used for compaction, detachment and aeration of bulk materials.

4. Used for testing of welded joints in automobile industry and delicate joints in              electronic industry.

5. Used for effective packing of fluffy and difficult to handle powder in chemical and                  pharmaceutical industry.

6. Used for proper flow of powder in dies and moulds to get perfect mould parts

Production

1.For export,We usually use different packs for different products according to its size.

2.For small size,crate case is adopted.

3.For big size and heavy good,fumigation-free wooden case or pallet is offered for 20’ or 40’ container or bulk shipment.

1.Rotary vibrating screen, click to know more information about rotary vibrating screen.

   2.Belt conveyor, click to know more information about belt conveyor machine

3.Factory direct sell the other main products

Company information

Xinxiang Hongyuan Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating. The company is specialized in the manufacturer, sales and research of vibrating screen vibrating table and nonvibrating screen

equipment, conveying equipment (screw conveyer, belt conveyer,drag conveyor, vibrating

conveyor, magnetic conveyor, highpressure conveyor and so on), as well as elevating equipment (TD series elevator, NE series elevator, vertical elevator and high-pressure elevator).grain cleaning machine, grain polishing machine , grain weighting and packaging machine, other main accessories, etc.

a. The dimension: Length* Width*height

b. The max loading.

c .The vibrating motion you need.

d. Voltage you required.
