Hot Sell Continuous 150kg per Hour Rice Husk Carbonization Equipment for Sale

Brief description of rice husk carbonization equipment

rice husk carbonization equipment is the equipment mainly used for carbonising sawdust. Capacity of it is much larger, can reach 200kg/hr for it is continuous type. Sawdust is transferred to the furnace by screw conveyor, after 5-7 minutes'carbonization,
sawdust charcoal powder will be screwed out with high efficiency. Final products can be used for shisha charcoal making, coal ball making etc. Compared to this one, capacity of the commonly used furnace for briquettes and tree branches is smaller.

Technology data of rice husk carbonization equipment

• power :7.22kw ( main machine: 5.5kw, fan 1.5kw+0.22kw)
• capacity :150-180kg/h
• Package dimension:4800*1800*3200mm
• Net/Gross weight:11.2/11.5ton
• temperature of inner stove:480-600 degree
• Raw material requirement :sawdust, Size: 3-5mm, moisture:8-12%
• energy consumption:35-40kg firewood per shift
• Electricity consumption:7.22kw/h
• motor style :5.5kw Moment speed regulating motor
• Used for: Firecracker production, active carbon processing, certain soil improvements by scientific research unit.
• Rotary speed :1450r/min



The main structure of rice husk carbonization equipment

This model machine consists of heating parts, carbonizing parts,  cooling parts,   gas recycle parts,  smoking purification parts, and controlling parts.
Heating parts	includes three heating room (for heating the stove), furnace body and heat  keeping layer (it is made of the heat insulating material, used for keep the  heating) and the drought fan
Carbonizing parts	consist of four carbonizing tubes, Both of them are made of the heat resistance  thermal steel, under the drive of the machine, the sawdust will be delivery to the  tube1, when the sawdust reach to the end of the tube1,it will turn around to the  tubes2, and so on,  after four tubes carbonization, the sawdust will become  charcoal powder.
Gas recycle parts	When during the process of carbonizing, there will be some smoke  (can be burning)  the smoke can return to the furnace through tube for purifying, after purification ,  the gas recycle tubes can be flow into the heating room of the main furnace for  heating the  machine again.
Smoking  purification parts	( in this machine, there are  two purification  tank, the first one to purify the  smoking ( can not burning ), and the other one are used to purification the  gas smoking when the working process, The smoking through the purification  system.will  become water vapor, and it will not pollute the air.
Cooling parts	in the back side of the machine, there is one tube for cooling the hot charcoal  powder, so we can get the charcoal powder directly.
Controlling parts	the whole machine we will equip one electrical control box to control the  three electrical motors.

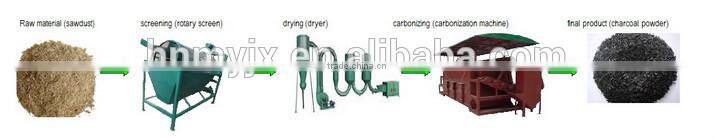

Working process of rice husk carbonization equipment

1. At the begining, the carbonization need to preheat without material
2. After the carbonizing chamber reach 600-700 degree, the material can be feed into carbonizing chamber by screw conveyor.
3.The material will be fill into carbonizing pipes, usually one set has four pipes.the sawdust will be dry at the top pipe.
4 when sawdust reach to bottom pipes, it will start carbonize , at the same time it will produce the flammable gas such as co , methane etc. the flammable gas will be pass through the purification tank, cooling system ,After purificating, the gas will be transported at the bottom of carbonizing chamber as fuel.



The charcoal powder from our  sawdust charcoal carbonization furnace for sale



The purpose charcoal powder

make charcoal sticks

make charcoal balls

make shisha charcoal briquettes

The packaging and shipping of rice husk carbonization equipment

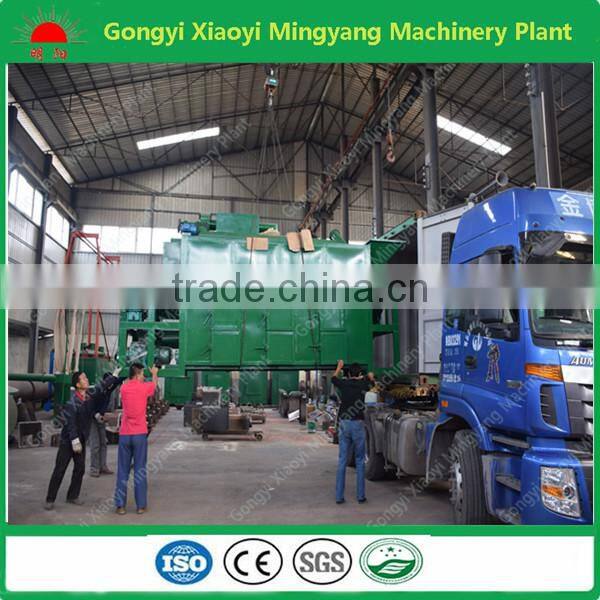

the rice husk carbonization equipment packing in the plywood boxes or wooden cases, then put into the 20 feet or 40 feet container in delivery as follows.

Pre-sale Service

1. Free site investigation for clients, provide project consulting, drawings design, project budget and relevant technical data.

2. Customer focus, providing a variety solutions for clients reference to get the most satisfaction option.

On-sale service

1. Strictly conforming to the relevant national standards to process professional installation and debugging. Complete clients using,maintenance and general troubles clearance of technical guidance.

2. After installation, ask for clients to check and accept, solicit clients opinions to fill in the quality acceptance form.

After-sale service

1.Warranty service : The Equipment have one year warranty and long life maintenance, prompt provide the required service to clients after warranty period

2.Telephone service : Set customer hot line ,dealing the problems at once when they in process of working line,dealing the problems at once when they in process of using equipment.

3.Software service : Provide relevant project consultant and software version upgrades for free.

4.after service guarantee : Create customer files, implement the tracking service to customers, provide free annual inspection and regular maintenance.
